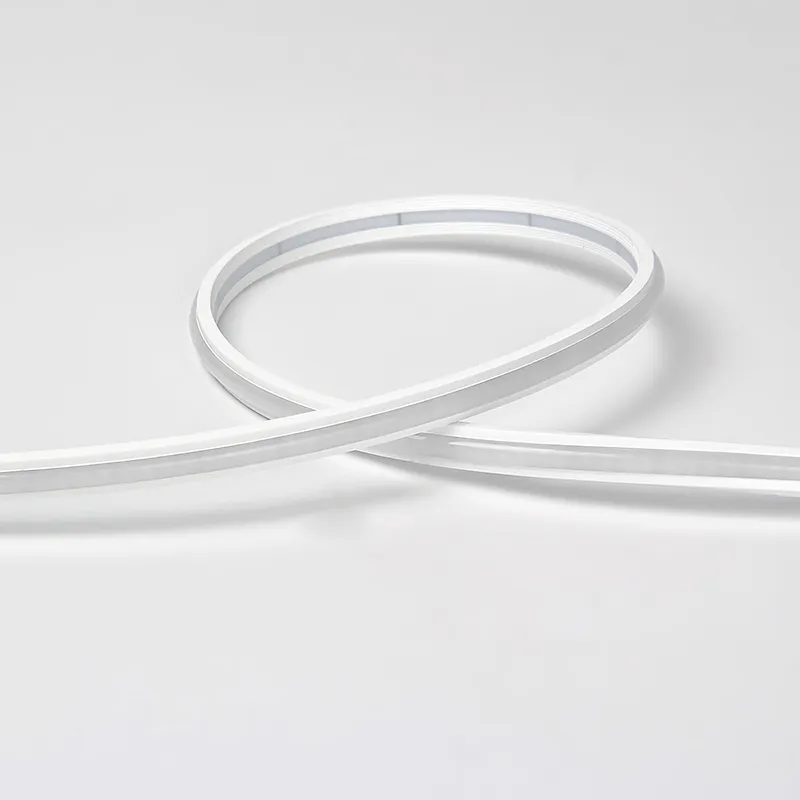

Slim & Narrow
7×4.5mm slim & narrow, easy to conceal, suitable for precise, micro-space.

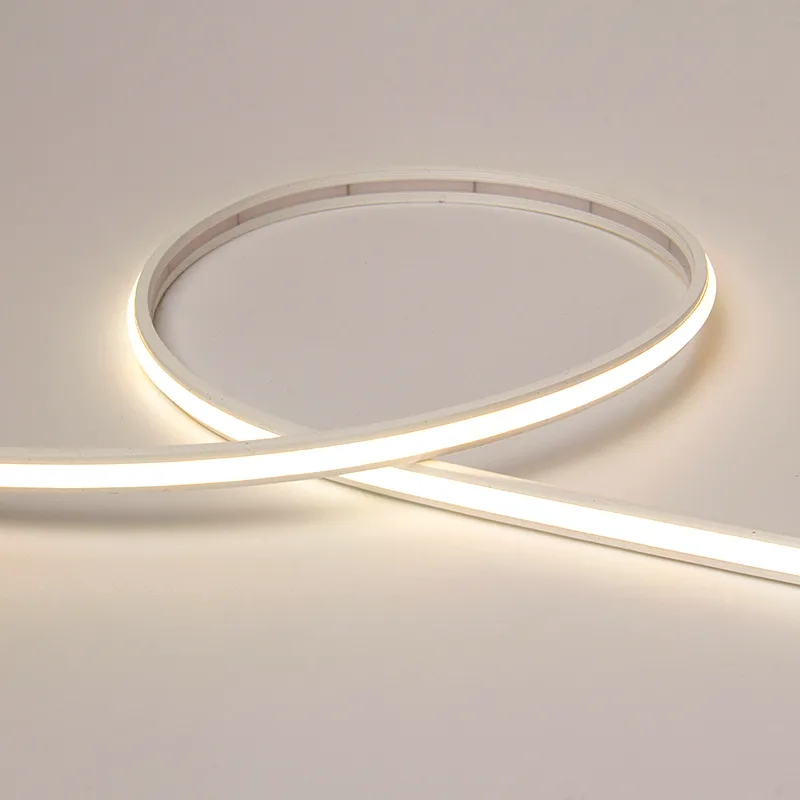

Smooth seamless linear glow
High-Density 1510 LEDs for Smooth, Even Glow. Better lighting consistency, dot-free.
Smooth line strip
No solder joints on PCB board, Appearance looks more elegant and clean
Flexible Bending for Curves
Bending radius>30mm, easily fits curved surfaces and corners.
IP67 Waterproof
Heat-resistant, UV-resistant, and IP67 waterproof for versatile indoor and outdoor use.

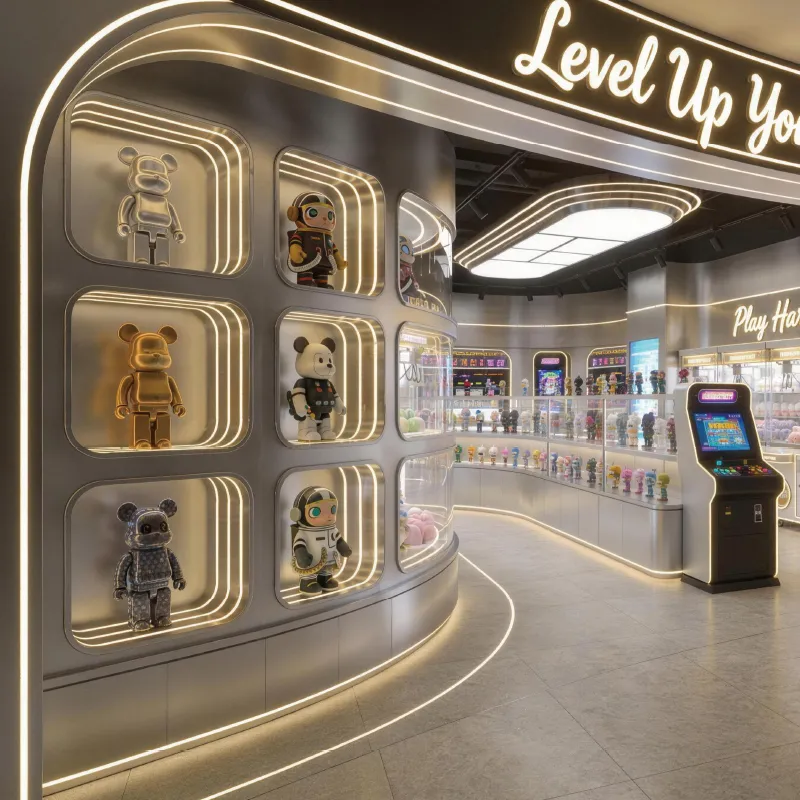

Ideal for car lighting, furniture, displays, architectural decoration, signage,
narrow-gap installation, and commercial or DIY ambient projects.
| Model | Wave Length & CCT Range(for LED only) | Luminous Flux (lm/M) | CRI | LED Type | LED Qty. (PCS/M) | DC Voltage(V) | Rated Watt(w/m) | Beam Angle | PCB Width (mm) | IP | |
| SC-1510-08-JT7X4.5W- XX-24-320-5-IP67 | WW | 2800-3200K | 800 | 90 | 1510 | 320 | 24 | 7.2 | 130° | 5 | 67 |
| NW | 3800-4500K | 820 | |||||||||
| W | 6000-6500K | 830 | |||||||||
| R | 620-630nm | \ | \ | ||||||||
| G | 515-530nm | ||||||||||
| B | 460-470nm | ||||||||||
Unit: mm/inch
