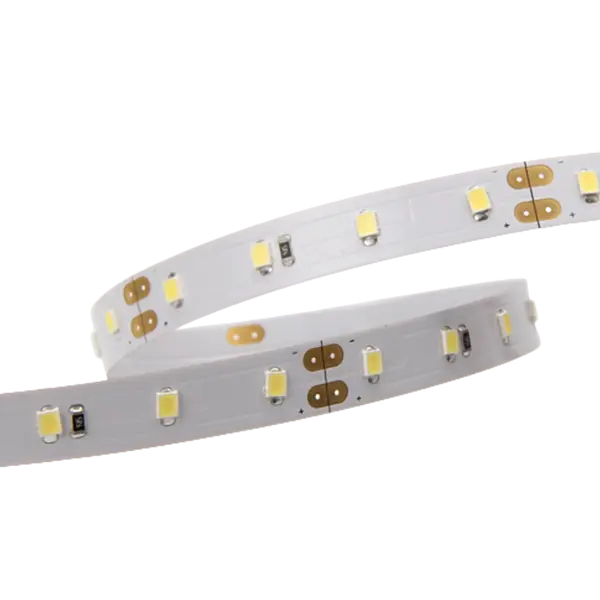

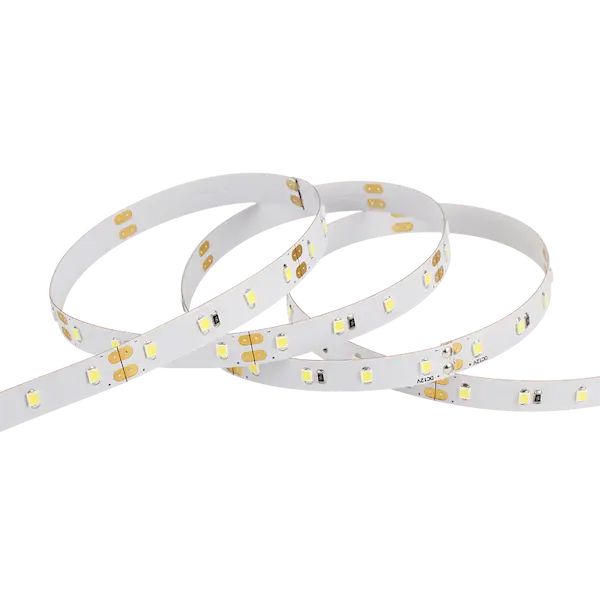

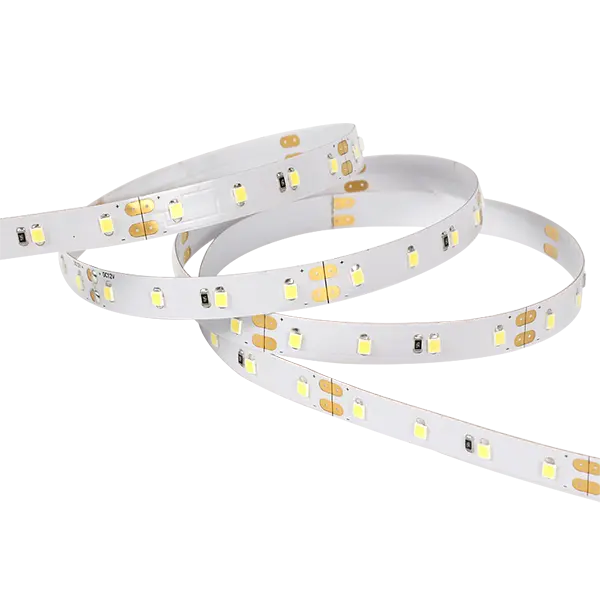

2835 ENIG Immersion Gold Process LED Strip

2835 ENIG Immersion Gold Process LED Strip

  • PCB adopts ENIG technique.

  • Bonding pad is not easy to be oxidized, corroded and fall off.

  • Easy to be soldered, won't result in poor soldering.

  • Longer storage time of LED strip.

  • 2835 assembled LEDs.

  • Can be cut to meet requirements of different length.


For more detailed insights into these advanced manufacturing techniques, visit Signcomplex, a leading LED strip manufacturer.

rohs ce warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColorLumenRated watt(W/m)LED qty. (leds/m)LED typeBeam angle(degree)DC voltage(V)IP
SC-2835-GPXW7605.832283512012/2420
WW660
NW740
SC-2835-GPX2W153011.564283512012/2420
WW1330
NW1490
SC-2835-GPX3W288021.6120283512012/2420
WW2500
NW2800

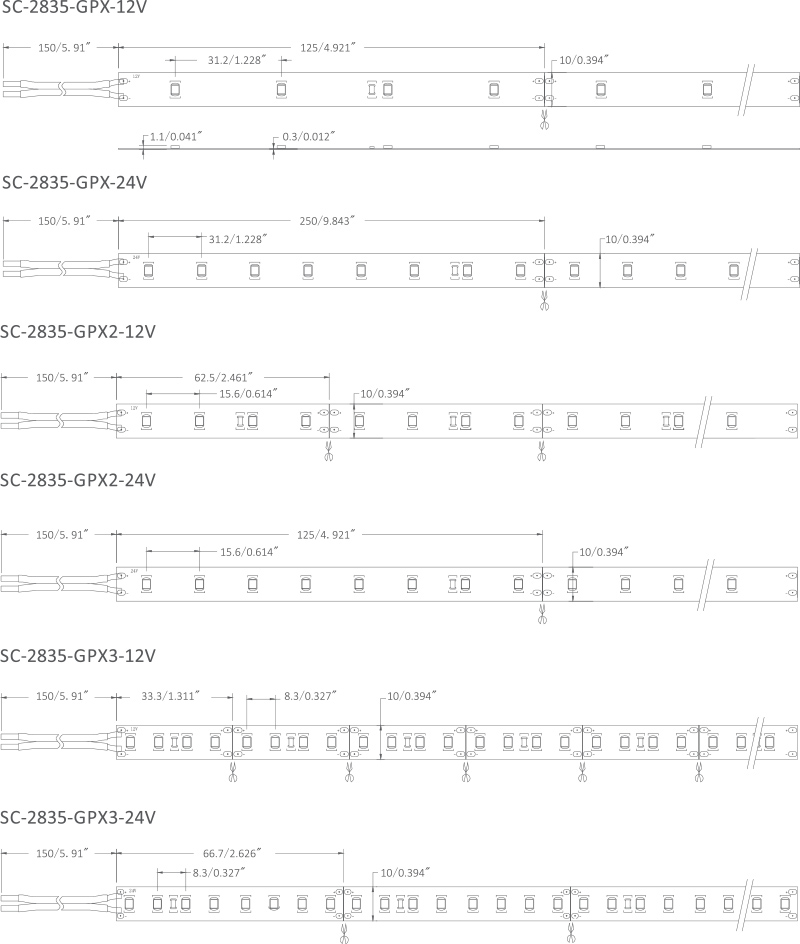

Size
