170lm/w High Power 2835HE LED Strip

170lm/w High Power 2835HE LED Strip

  • 170lm/w high-efficiency strip;

  • Cut 4pcs LEDs for 12V DC, cut 8pcs LEDs for 24V DC;

  • Double layer pure copper 2oz PCB;

  • 3M VHB adhesive tape for easy installation (2835HE-PX3 with 3M 300LSE tape);

  • High brightness 2835 type LED; 120 degrees;

170lm/w High Power 2835HE LED Strip
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColourLumenLED TypeLED Qty. (leds/m)FPC WidthDC Voltage (V)Rated Watt (w/m)CRIIP
(mm)
SC-2835HE-PXWhite10252835321012月24日5.8>8020/64/ 65/68
Neutral White996
Warm White952
SC-2835HE-PX2White20332835641012月24日11.5>8020/64/ 65/68
Neutral White2002
Warm White1897
SC-2835HE-PX3White386828351201012月24日21.6>8020/64
Neutral White3695
Warm White3612

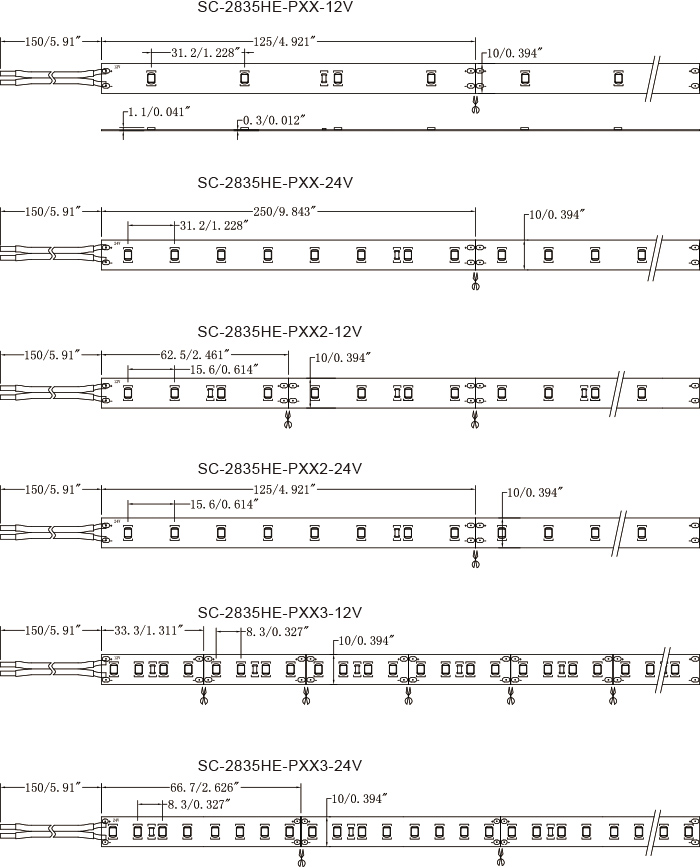

Size

Power Supply Repeater
