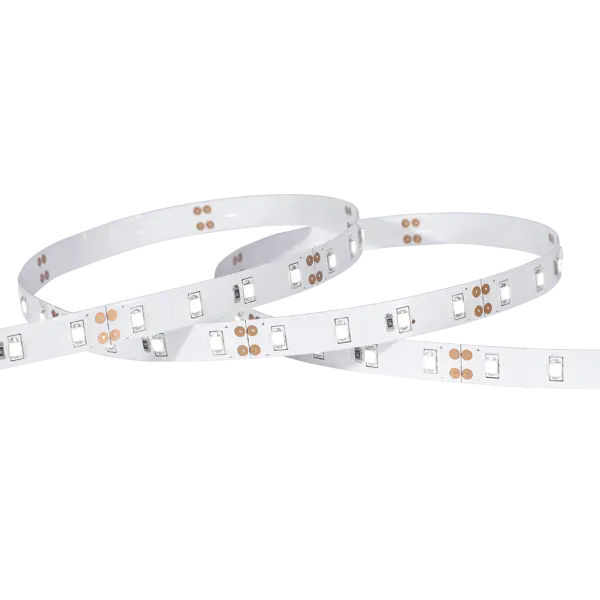

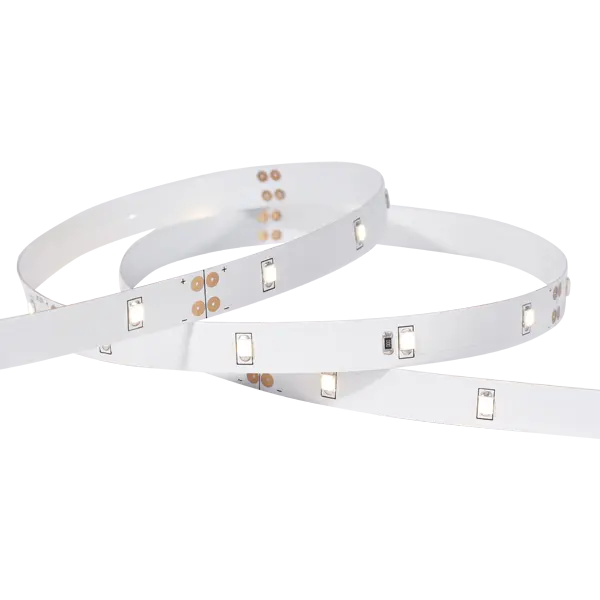

140lm/w 2835PX High Efficiency LED Strip

140lm/w 2835PX High Efficiency LED Strip

  • 140lm/W high-efficiency strip

  • Cut 4pcs LEDs for 12V DC, cut 8pcs LEDs for 24V DC

  • Double layer pure copper 2oz PCB

  • 3M VHB adhesive tape for easy installation (IE3 with 3M 300LSE tape)

  • High brightness 2835 type LED; 120 degree

  • Standard 5M on the reel for IG and IG2,3M on the reel for IG 3

ul tuv ce rohs warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColourLumens/mLED TypeLED Qty. (leds/m)FPC Width(mm)DC Voltage(V)Rated Watt(w/m)CRIIP
SC-IG-PXWhite760283532812/24V5.8>8020/64/ 65/68
Neutral White740
Warm White660
SC-IG2-PXWhite15302835621012/24V11.5>8020/64/ 65/68
Neutral White1490
Warm White1330
SC-IG3-PXWhite288028351201012/24V21.6>8020/64
Neutral White2800
Warm White2500

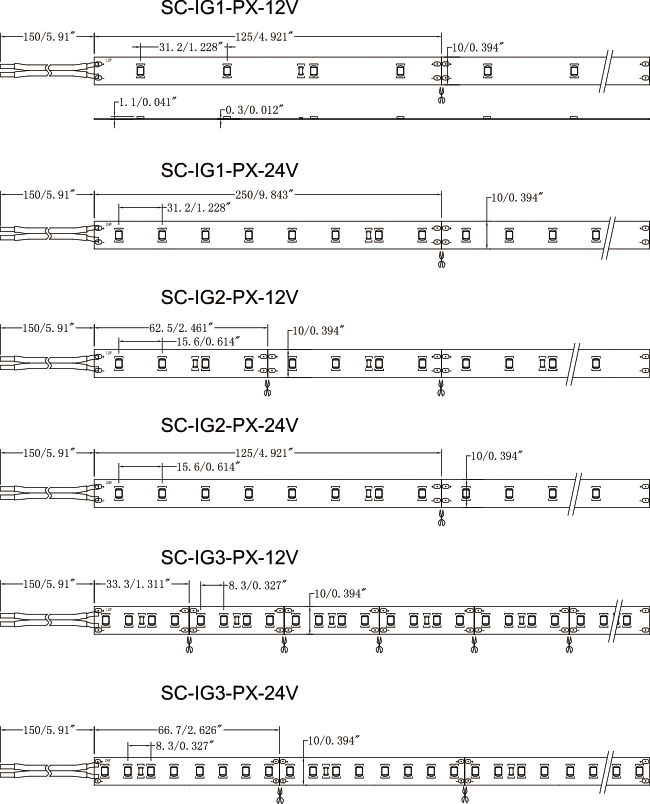

Size
