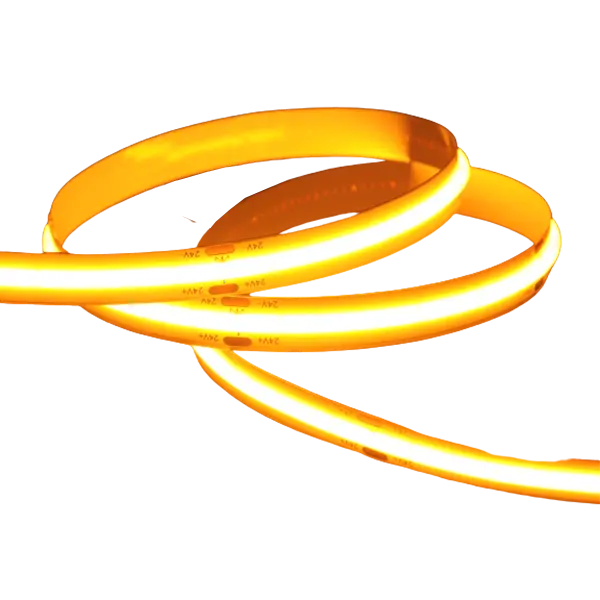

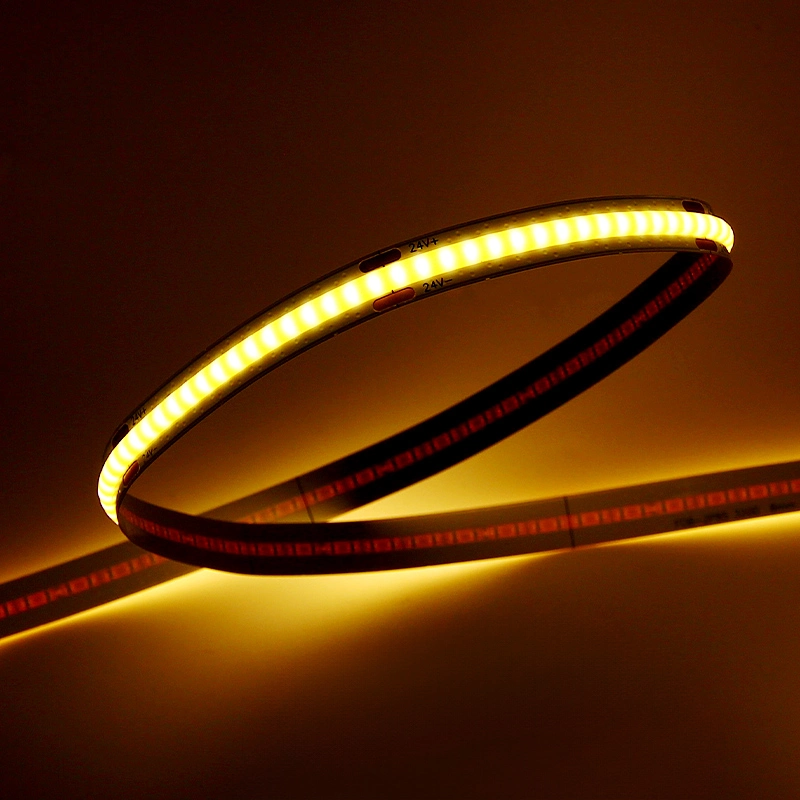

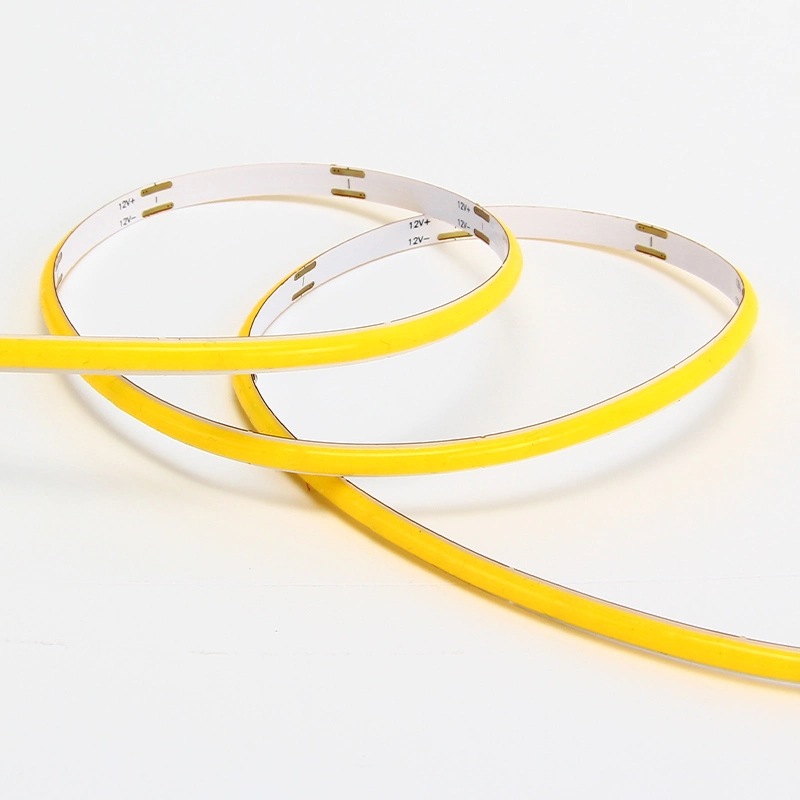

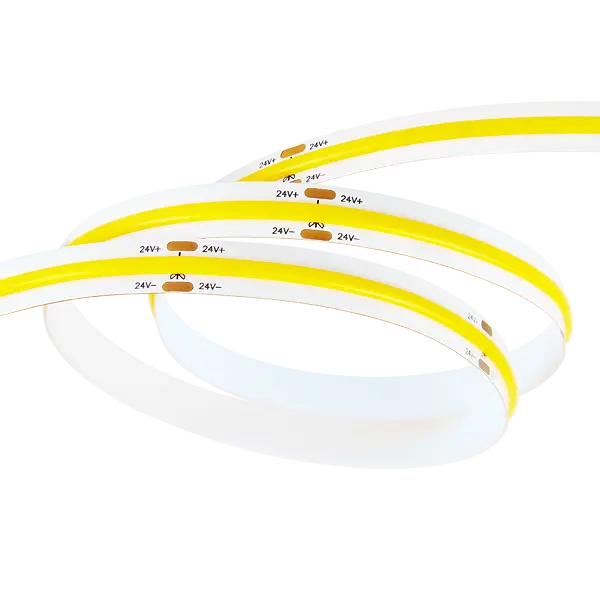

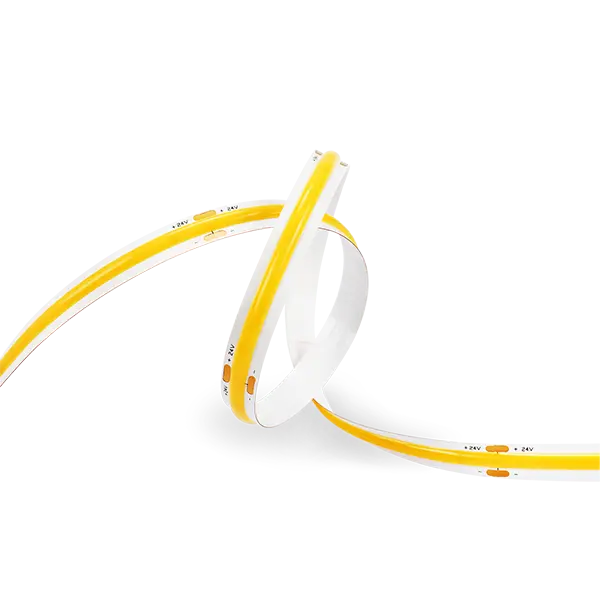

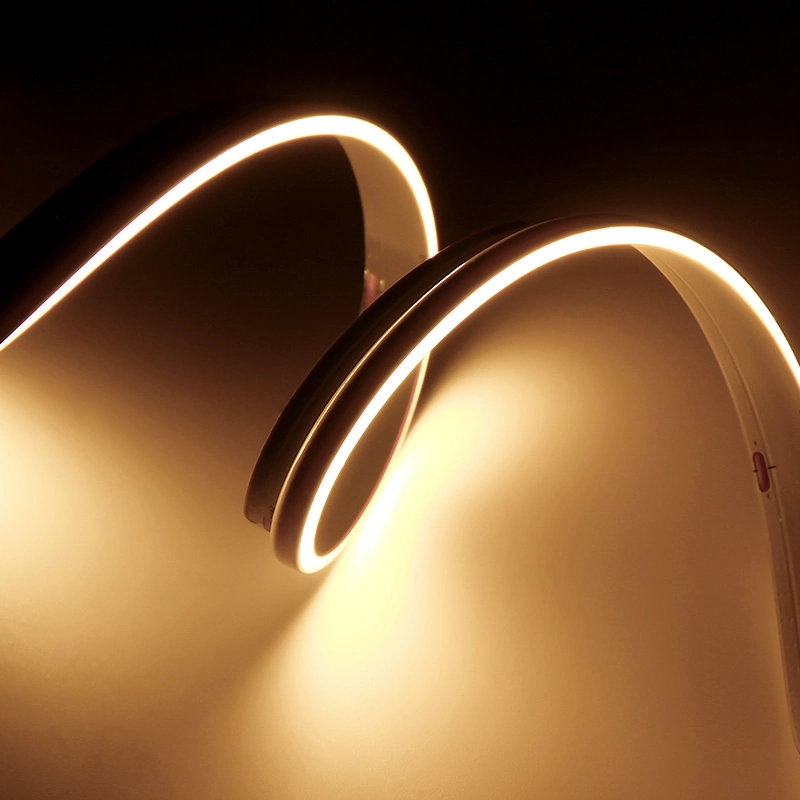

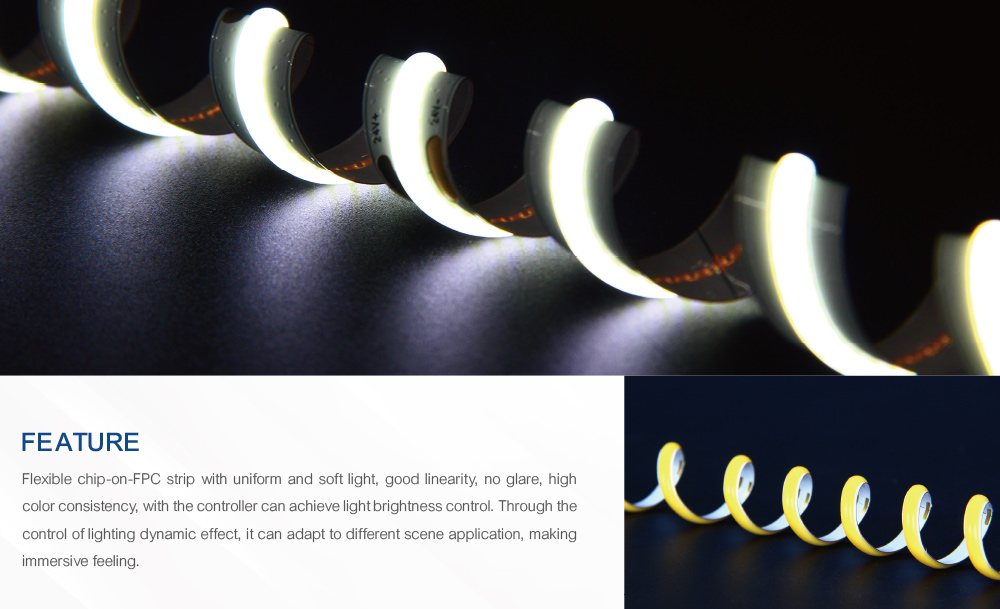

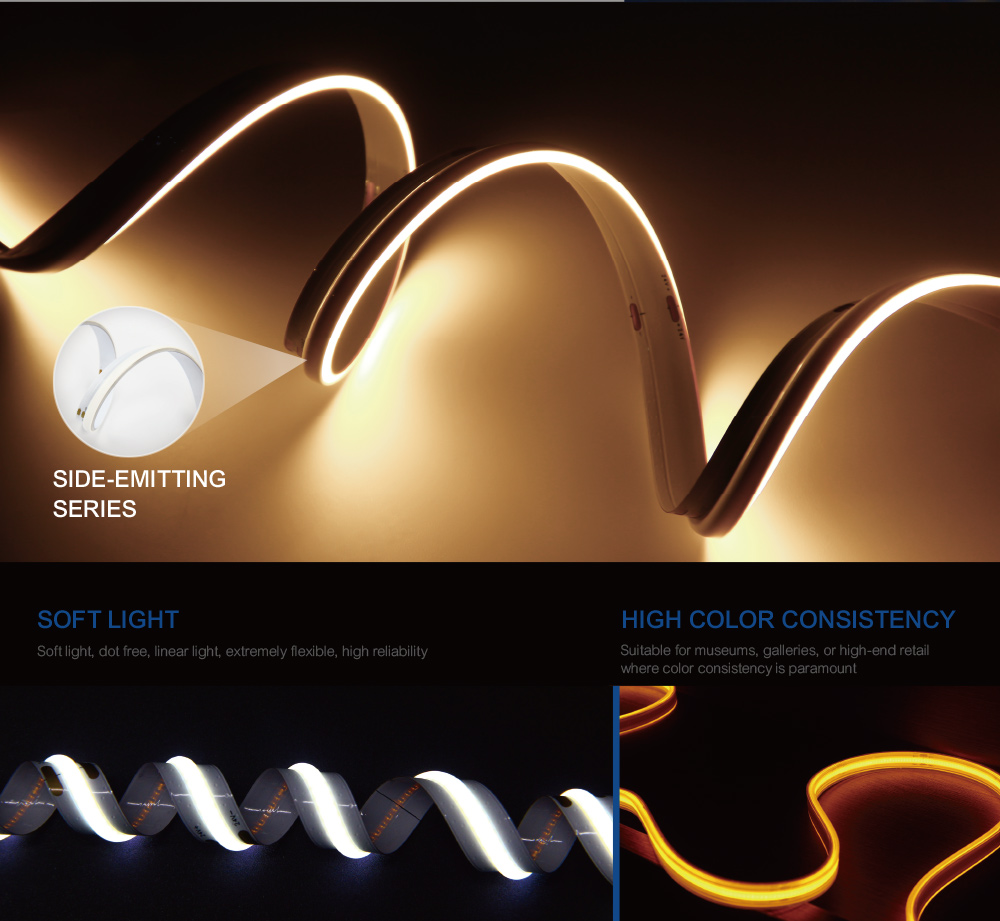

Flexible Chip-on-FPC strip

Flexible Chip-on-FPC strip

  • 3.5mm high-brightness, ultra slim LED strip or super thin LED strips

  • Ideal for advertising boxes, letters, niches, signboards, etc

  • Double layer pure copper PCB

  • 3M adhesive tape for easy installation

Flexible Chip-on-FPC strip
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColorCCT RangeLumenCRIPCB widthVoltageMini. cutLED Qty.Rated WattIP
(leds/m)(w/m)
SC-SFL-504-27K-12SWW2700K640lm/m928mm12V35.7mm50410w/m20
SC-SFL-504-30K-12WW3000K780lm/m
SC-SFL-504-40K-12NW4000K800lm/m
SC-SFL-504-65K-12W6500K760lm/m
SC-SFL-512-22K-24SWW2200K710lm/m928mm24V62.5mm51210w/m20
SC-SFL-512-27K-24SWW2700K780lm/m
SC-SFL-512-30K-24WW3000K910lm/m
SC-SFL-512-40K-24NW4000K989lm/m
SC-SFL-512-50K-24W5000K1050lm/m
SC-SFL-512-65K-24W6500K1080w/m
SC-SFL-512-R-24R620-630nm//8mm24V62.5mm51210w/m20
SC-SFL-512-G-24G520-530nm
SC-SFL-512-B-24B450-460nm
SC-SFL-512-Y-24Y585-595nm
SC-SFLBS-504-27K-12SWW2700K520lm/m928mm12V35.7mm50410w/m65
SC-SFLBS-504-30K-12WW3000K620lm/m
SC-SFLBS-504-40K-12NW4000K700lm/m
SC-SFLBS-504-65K-12W6500K660lm/m
SC-SFLBS-512-22K-24SWW2200K590lm/m928mm24V62.5mm51210w/m65
SC-SFLBS-512-27K-24SWW2700K740lm/m
SC-SFLBS-512-30K-24WW3000K750lm/m
SC-SFLBS-512-40K-24NW4000K830lm/m
SC-SFLBS-512-50K-24W5000K850lm/m
SC-SFLBS-512-65K-24W6500K890w/m
SC-SFLBS-512-R-24R620-630nm//8mm24V62.5mm51210w/m65
SC-SFLBS-512-G-24G520-530nm
SC-SFLBS-512-B-24B450-460nm
SC-SFLBS-512-Y-24Y585-595nm



Size
