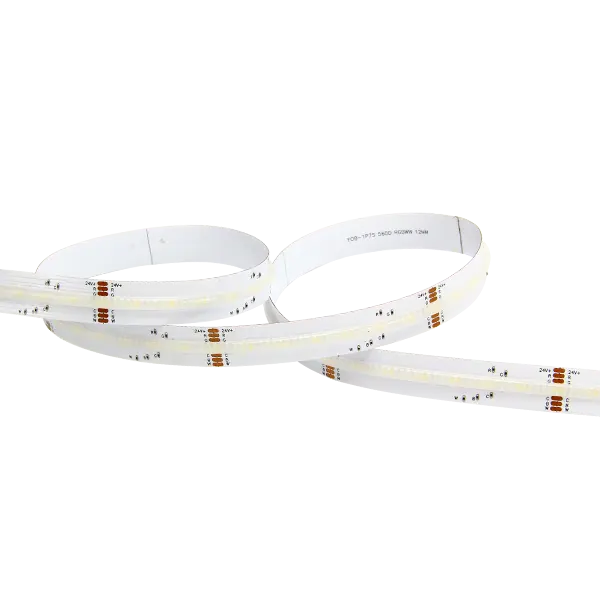

Flexible chip-on-FPC strip with uniform and soft light, good linearity, no glare, high color consistency, with the controller can achieve light color control. Through the control of lighting dynamic effect, it can adapt to different scene application, making immersive feeling.
● Uniform light, good linearity, high color consistency
● Suitable for atmosphere decoration and lighting
● Rich colors and dynamic effects can be adjusted according to needs
| Model | Color | Lumen(lm/m) | Efficiency (lm/W) | Voltage | Connection length (m) | Beam angle | Rated watt (W/m) | IP |
| SC-SFL-420-RGB-24V | R: 620-630NM G: 515-525NM B: 460-470NM | 60-75 195-255 45-70 | 20-25 65-85 15-23 | 24V | 5 | 180° | 9 W（3W*3） | 20/65 |
| SC-SFL-630-RGB-24V | R: 620-630NM G: 515-525NM B: 460-470NM | 75-105 180-240 24-36 | 25-35 60-80 8-12 | 24V | 5 | 180° | 9 W（3W*3） | 20/65 |
| SC-SFL-840-RGB-24V | R: 620-630NM G: 515-525NM B: 460-470NM | 100-125 300-350 65-85 | 20-25 60-70 13-17 | 24V | 5 | 180° | 15 W（5W*3） | 20/65 |
| SC-SFL-560-RGBW-24 | R: 620-630NM G: 515-525NM B: 460-470NM W:3000K | 50-60 125-135 30-40 135-145 | 12-15 30-35 8-10 30-35 | 24V | 5 | 180° | 16W(4W*4) | 20/65 |
| SC-SFL-896-RGBW-24 | R: 620-630NM G: 515-525NM B: 460-470NM W:3000K | 80-100 220-240 40-60 300-280 | 15-25 50-60 5-10 275-28 | 24V | 5 | 180° | 16W(4W*4) | 20 /65 |
| SC-SFL-560-RGBCW-24 | R: 620-630NM G: 515-525NM B: 460-470NM C: 6500K W:3000K | 50-60 100-110 30-40 110-120 95-100 | 12-15 30-35 10-15 35-40 30-35 | 24V | 5 | 180° | 16W(G/B/C/W=3W R=4W) | 20/65 |
