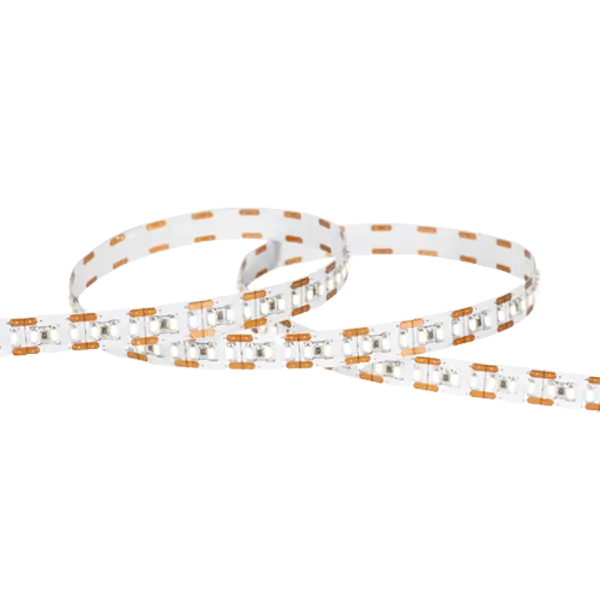

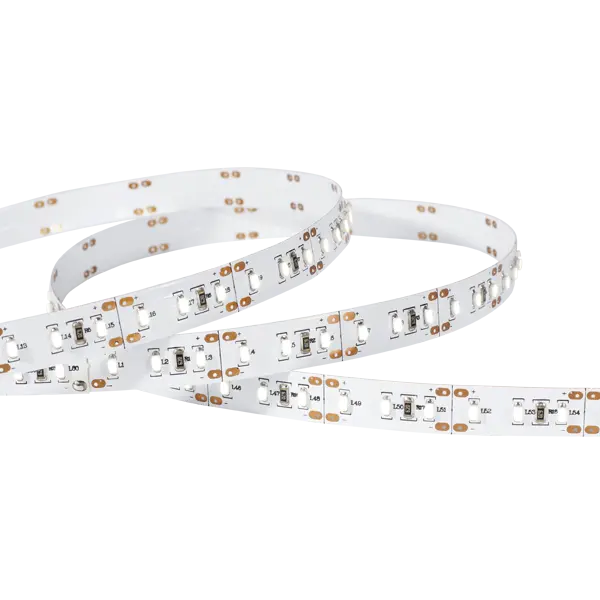

3014SD High Power & Bright SDCM<3 Strip

3014SD High Power & Bright SDCM<3 Strip

  • Three-step color, low color tolerance

  • High power and high brightness light bar.

  • Two-layer copper 2-ounce PCB boards

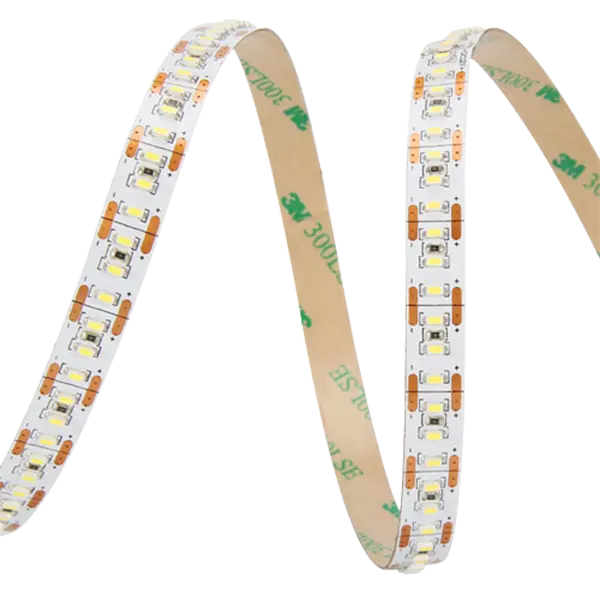

  • The back of the light bar is adhered with 3M gum to facilitate installation.

  • High bright 3014 light beads,the LEDs are with 120° irritation angle.

rohs ce warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColourLumenLED TypeLED Qty. (leds/m)Beam angleDC Voltage (V)Rated Watt (w/m)CRIIP
SC3014SD-XWhite760301460120°12/247.2>8020/64/ 65/68
Neutral White650
Warm White600
SC3014SD2-XWhite15203014120120°12/2414.4>8020/64/ 65/68
Neutral White1300
Warm White1200
SC3014SD3-XWhite24503014204120°12/2424.5>8020/64
Neutral White2100
Warm White1900

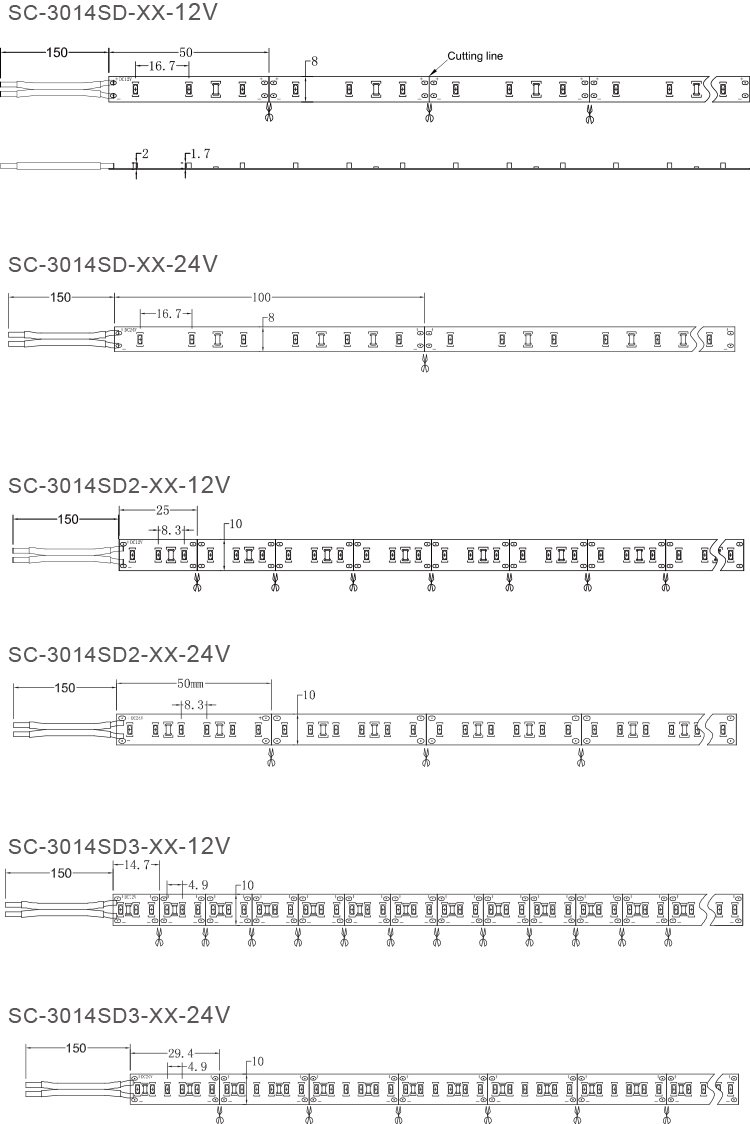

Size
