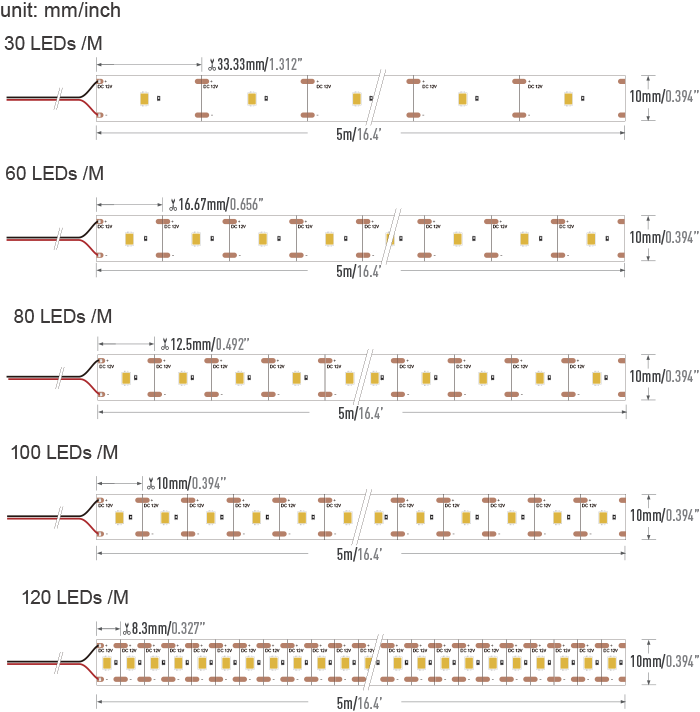

| Model | Color | Lumen(lm/m) | LED type | LED qty. (leds/m) | PCB Width (mm) | Beam angle | DC voltage (V) | Rated watt (W/m) | CRI | IP |
| SC-OLOC-30D | Warm White | 670 | 2835 | 30 | 8/10 | 120° | 12/24 | 6 | 80/90 | 20 |
| Neutral white | 675 | |||||||||
| White | 680 | |||||||||
| SC-OLOC-60D | Warm White | 1130 | 2835 | 60 | 8/10 | 120° | 12/24 | 10 | 80/90 | 20 |
| Neutral white | 1140 | |||||||||
| White | 1145 | |||||||||
| SC-OLOC-80D | Warm White | 1350 | 2835 | 80 | 8/10 | 120° | 12/24 | 12 | 80/90 | 20 |
| Neutral white | 1360 | |||||||||
| White | 1365 | |||||||||
| SC-OLOC-100D | Warm White | 1540 | 2835 | 100 | 8/10 | 120° | 12/24 | 14 | 80/90 | 20 |
| Neutral white | 1550 | |||||||||
| White | 1555 | |||||||||
| SC-OLOC-120D | Warm White | 1760 | 2835 | 120 | 8/10 | 120° | 12/24 | 16 | 80/90 | 20 |
| Neutral white | 1770 | |||||||||
| White | 1775 |
