White color version adopt 2835 high brightness LED, CRI 80 and CRI 90 both available
RGB version adopt sideview 4713RGB LED for perfect color mixing and lighting effect
Mini size 6mm*11mm with high flexibility, minimum bending radius can be 30mm
Side-view design makes dot-free illumination and high uniformity
High quality silicon material, extrusion process makes IP65

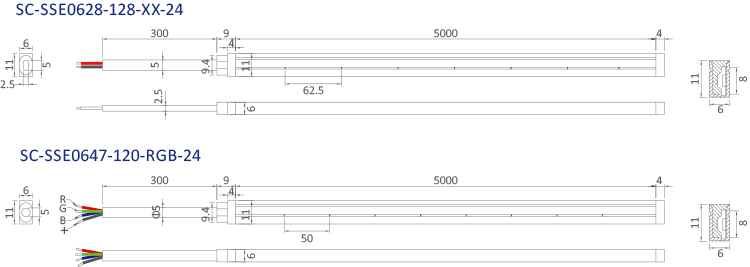

| Model | Wave Length & CCT | Luminous Flux(lm/m) | LED Type | CRI | PCB Width(mm) | Max.Length(m) | DC Voltage(V) | LED Qty.(pcs/m) | Rated Watt(w/m) | IP | |
| Range(for LED only) | |||||||||||
| SC-SSE0628-128-XX-24 | R | 620-630nm | / | / | 8 | 5 | 24 | 128 | 9.6 | 65 | |
| G | 515-530nm | / | 2835 | ||||||||
| B | 460-470nm | / | |||||||||
| WW | 2800-3200K | 525 | 2835 | 80 | 8 | 5 | 24 | 128 | 9.6 | 65 | |
| NW | 3800-4500K | 540 | |||||||||
| W | 6000-6500K | 550 | |||||||||
| SC-SSE0647-120-RGB-24 | RGB | N/A | / | 4713 | / | 8 | 5 | 24 | 120 | 14.4 | 65 |
