3014 High Light Effciency 140lm/w Strip

3014 High Light Effciency 140lm/w Strip

  • High efficiency up to 140LM/W

  • High color consistency from order to order

  • Cuttable 4pcs LEDs for 12V DC, and 8pcs LEDs for 24V DC

  • 3M VHB adhesive tape for easy installation

  • Standard 5M on reel for IE-PX and IE2-PX, 3M on reel for SC-IE3-PX

  • 5.8W/M,11.5W/M and 17.2W for different power demand

3014 High Light Effciency 140lm/w Strip
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLuminous    FluxWidthMax.LengthMin.LengthDC VoltageLED Qty.Rated WattThickness
(lm/m)(mm)(m)(mm)(V)(pcs/m)(w/m)
SC-IE-PW5500-7000K81081062.512645.81.6
SC-IE-PNW4000-4500K800
SC-IE-PWW2700-3200K740
SC-IE2-PW5500-7000K1610101031.21212811.51.6
SC-IE2-PNW4000-4500K1590
SC-IE2-PWW2700-3200K1470
SC-IE3-PW5500-7000K2410105201220017.21.6
SC-IE3-PNW4000-4500K2370
SC-IE3-PWW2700-3200K2200
SC-IE-PW-245500-7000K81081062.524645.81.6
SC-IE-PNW-244000-4500K800
SC-IE-PWW-242700-3200K740
SC-IE2-PW-245500-7000K1610101031.22412811.51.6
SC-IE2-PNW-244000-4500K1590
SC-IE2-PWW-242700-3200K1470
SC-IE3-PW-245500-7000K2410105202419217.21.6
SC-IE3-PNW-244000-4500K2370
SC-IE3-PWW-242700-3200K2200

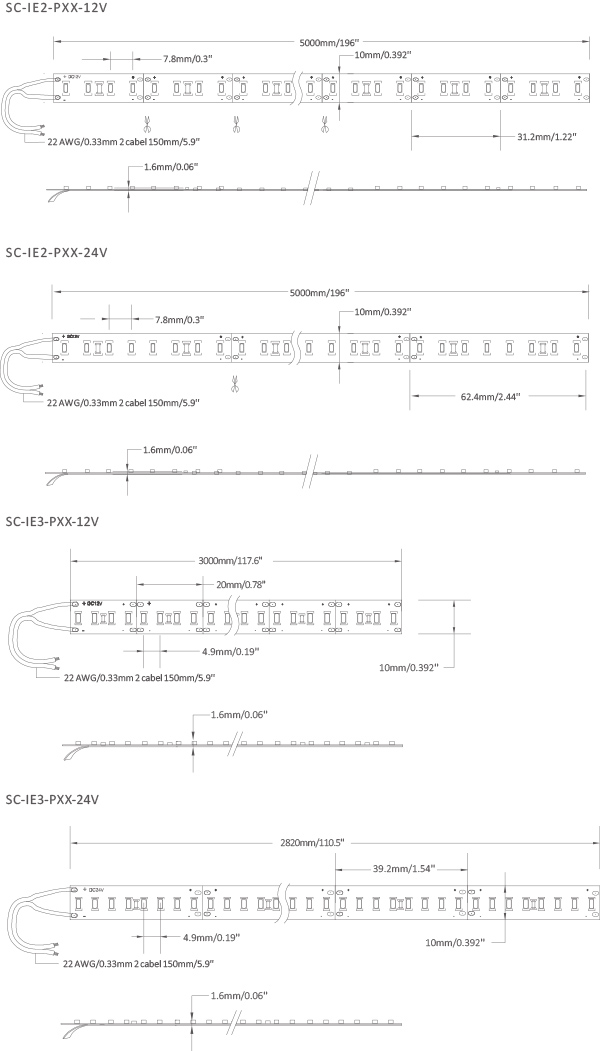

Size

Outdoor Strip Lighting
