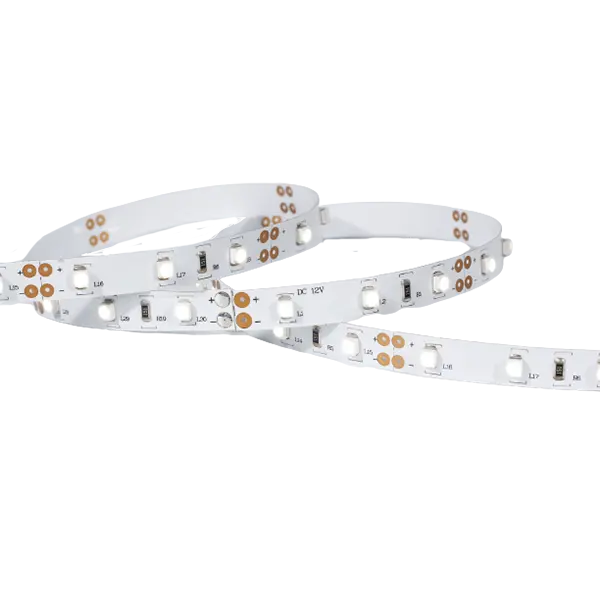

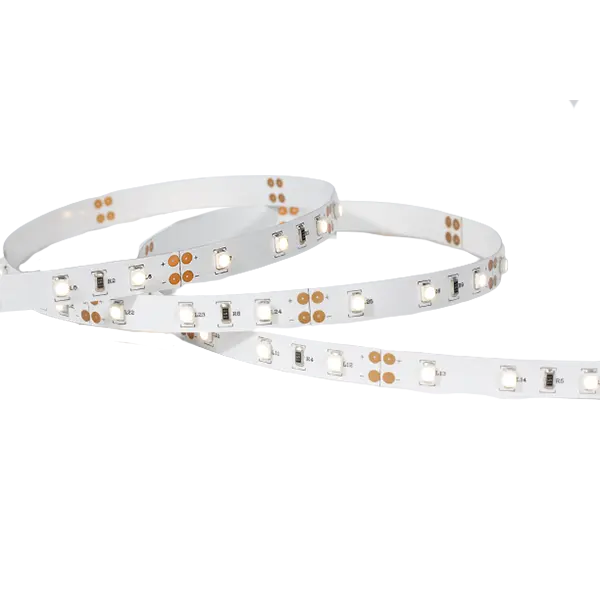

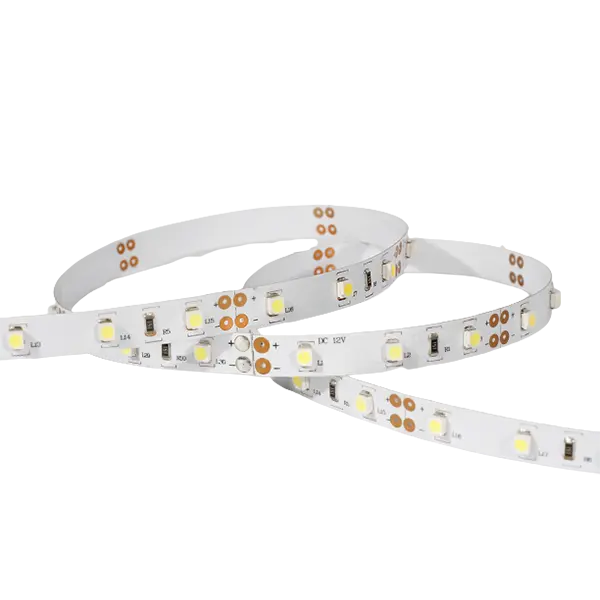

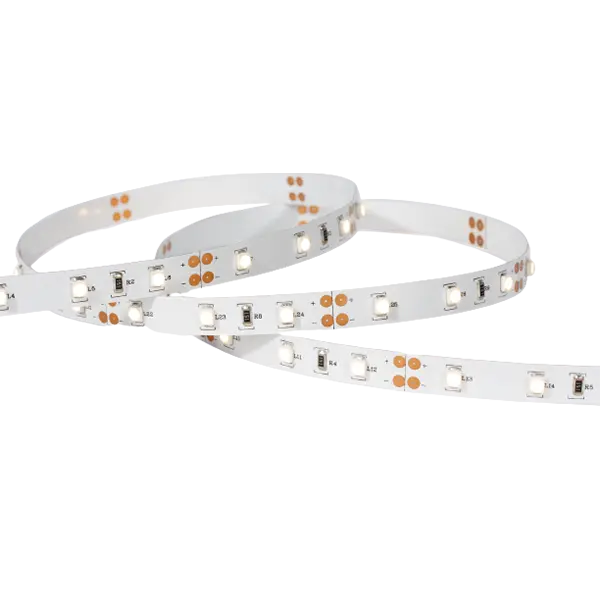

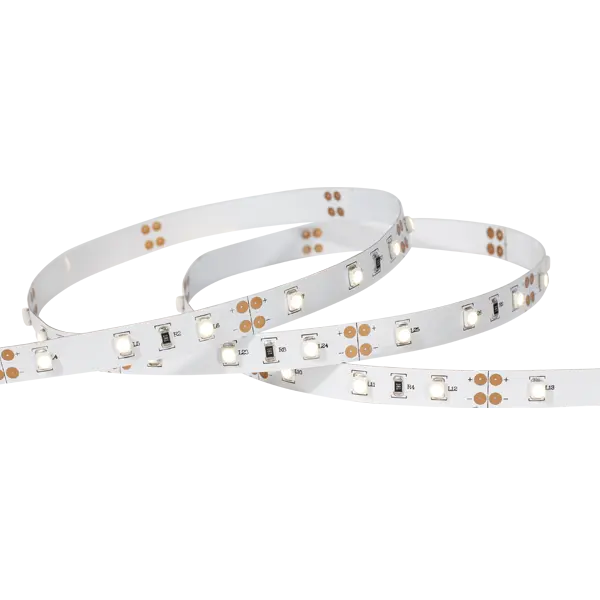

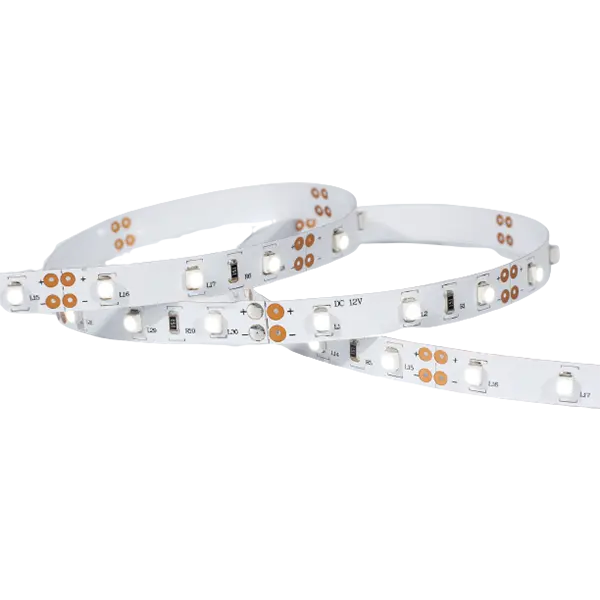

3528 Classica High Luminous Flexible LED Strip

3528 Classica High Luminous Flexible LED Strip

  • High luminous 3528 flexible LED strip;

  • Double layer pure copper 2oz PCB;

  • 3M adhesive tape for easy installation;

  • T or L type connectors for corner connection;

  • Max connection length is 10m, 120 degree;

  • Standard 5M on reel.

Step into a world of unparalleled illumination with Signcomplex, your trusted LED strip light manufacturers in China.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColorLight output
(lumen/m)
LED typeLED
qty.
Length
(m)
Beam angle
(degrees)
Voltage
(V DC)
Current
(Amps/m)
Max. power
consumption
(W/m)
Continuous
connection
(m)
IP
SC-IB-NWWhite33035283005120120.44.81020
SC-IB-YWarm white90
SC-IB-G2Neutral white160
SC-IB-WWRed390
SC-IB-NW2Green640
SC-IB-Y2Blue180
SC-IB-WYellow320
SC-IB-B2White78035283005120120.89.6520
SC-IB-RWarm white90
SC-IB-W2Neutral white660
SC-IB-GRed200
SC-IB-WW2Green170
SC-IB-BBlue80
SC-IB-R2Yellow400


ModelColorLumen(lm)LED qty.
(leds /m)
LED typeRated watt
(W/m)
DC voltage
(V)
Beam angle
(degree )
CRIIP
SC-IB-X-ULWhite390300SMD35284.812/24120°80/9020/64/65
Neutral white360
Warm white350
SC-IB-X2-ULWhite780300SMD35289.612/24120°80/90
Neutral white690
Warm white680
SC-IC-X-ULWhite420300SMD35284.812/24120°80/9020/64/65
Neutral white400
Warm white390
SC-IC-X2-ULWhite850300SMD35289.612/24120°80/90
Neutral white810
Warm white790

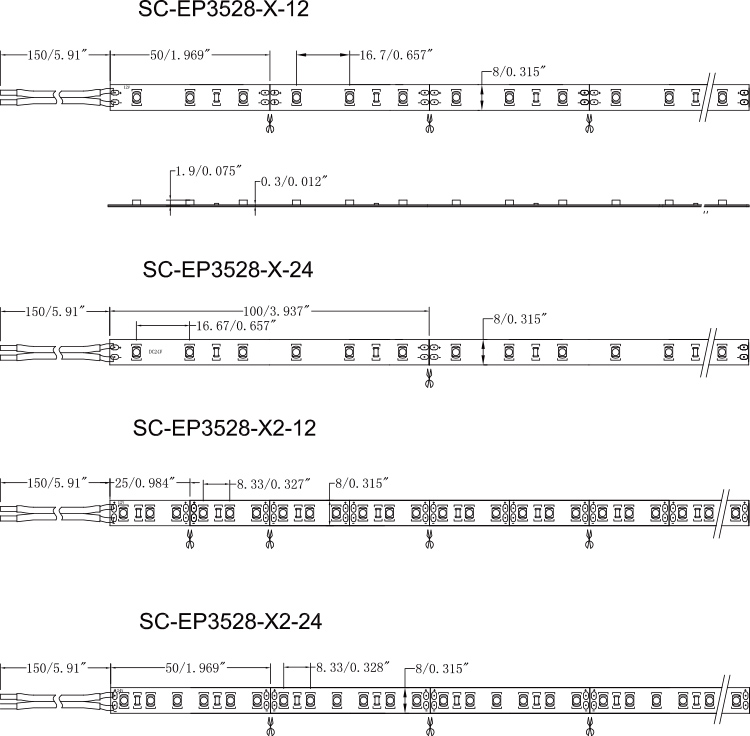

Size
