Built-in 4-in-1 RGB with Single Color Strip

Built-in 4-in-1 RGB with Single Color Strip

  • Built-in 4-in-1 RGB with the single color strip, 5 channels

  • Double layer pure copper 2oz PCB

  • 3M adhesive tape for easy installation

  • High brightness 5050 type LED

  • 120 degree

  • Standard 5M on reel

Built-in 4-in-1 RGB with Single Color Strip
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColorLength (m)LEDLEDLight OutputBeam AngleVoltageCurrentMax. PowerIPContinuous
Q'tyType(lumen/m)(degrees)(V DC)(Amps/m)ConsumptionConnection






(W/m)(m)
SC-OID4-W-12RGB+White5605050 SMD900120121.619.22010
SC-OID4-NW-12RGB+Natural  White880
SC-OID4-WW-12RGB+Warm  White850
SC-OID4-W-24RGB+White5605050 SMD900120240.819.22010
SC-OID4-NW-24RGB+Natural  White880
SC-OID4-WW-24RGB+Warm  White850

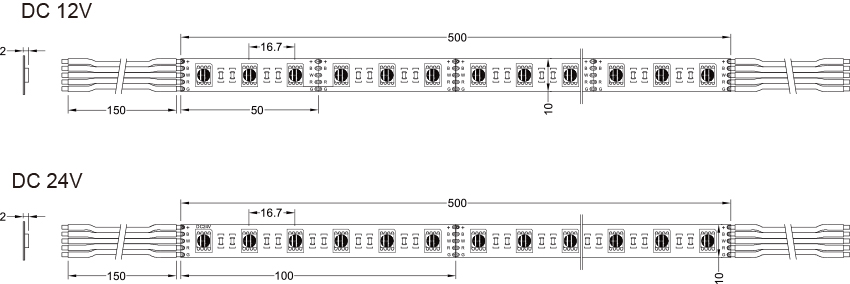

Size
