White color version adopt 2835 high brightness LED, CRI 80 and CRI 90 both available;

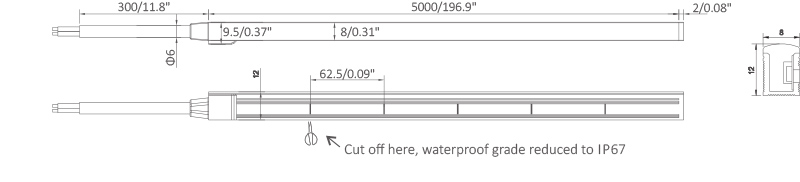

Mini size 8mm*12mm with high flexibility, Minimum bending radius can be 50mm;
Side-view design makes dot-free illumination and high uniformity;
High quality silicon material, extrusion process makes IP67.
| Model | Color | CCT range | Luminous flux(lm/m) | LED type | PCB width(mm) | Max. length(m) | DC voltage(V) | LED qty.(pcs/m) | Rated watt(W/m) | IP |
| SC-SSE0828-128-XX-24V | W | 2800K-3200K | 505 | 2835 | 8 | 5 | 24 | 128 | 9.6 | 67 |
| NW | 3800K-4500K | 532 | ||||||||
| WW | 6000K-6500K | 517 |
