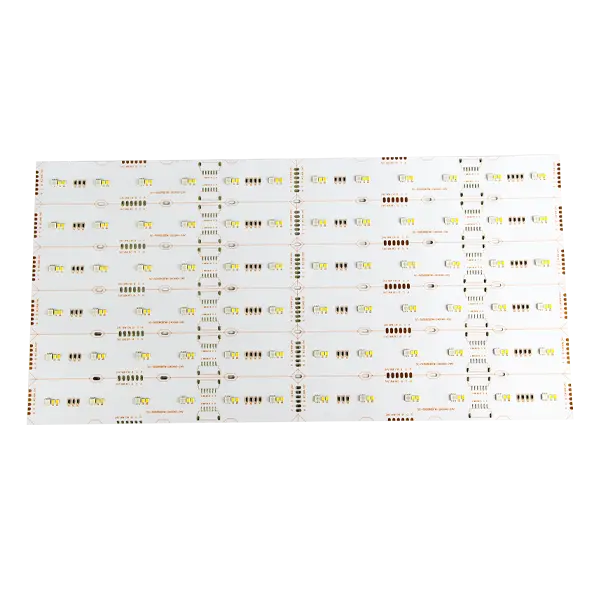

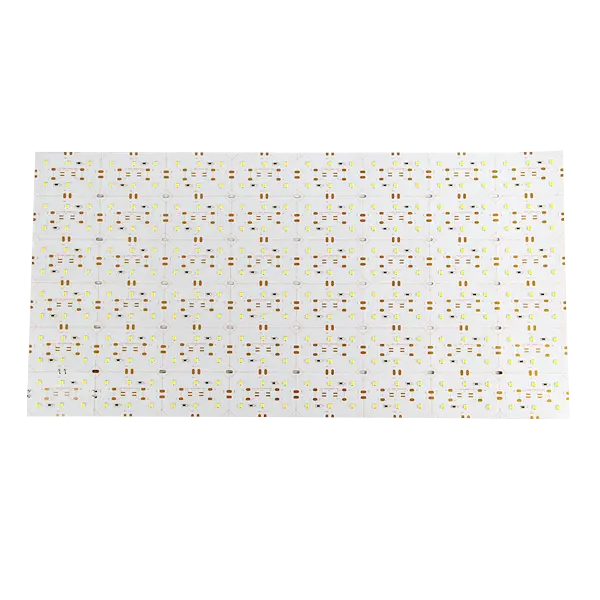

Sign Backlight Flexible Light Sheet

Sign Backlight Flexible Light Sheet

  • Modular design, flexible and convenient to use

  • Multiple light distribution, diffuse reflection and spotlight module options

  • High CRI to restore true colors

  • Low Power Consumption

  • Low heat and power consumption

  • More eye-catching visual effects

Suitable for a wide range of applications including lightboxes,

shop windows, billboards, display boards, etc.


Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelLED TypeLED Qty.Size(mm)Min. Length
(mm)
PowerDC Voltage(V)IP grade
SC-ML-0618-RGBTW-24-
         216D-240-480mm
5050RGB+
         2835WW+2835CW
216 leds480*240240*4015W/20W/25W/
30W/35W/40W
DC24VIP20
SC-ML-0606-RGB-24-
           288D-240-480mm
5050RGB288 leds480*24060*4020W/30W/
40W/50W
DC24VIP20
SC-ML-0612-WW+CW-24-
         576D-240-480mm
2835WW+2835CW576 leds480*24060*4050W/70W/90WDC24VIP20
SC-ML-0606-WW/CW-24-
         288D-240-480mm
2835288 leds480*24060*4025W/35W/45WDC24VIP20

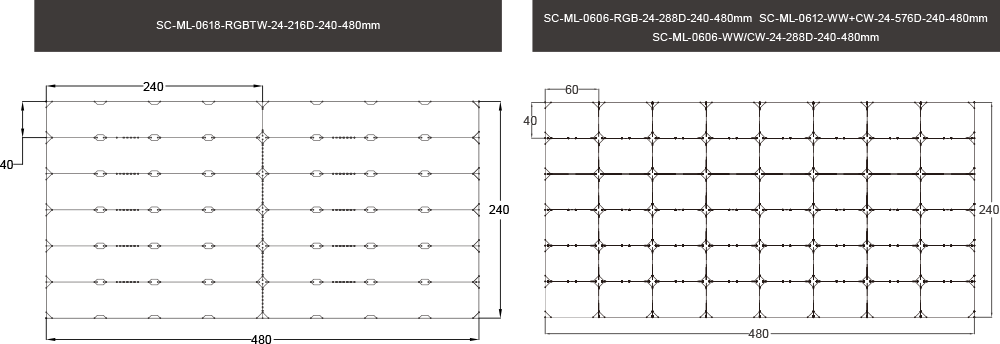

Size

Unit: mm/inch
