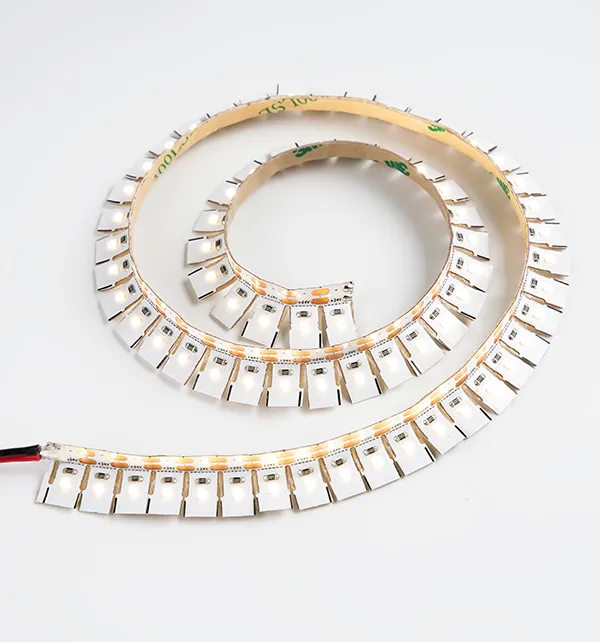

High power and luminous strip.
Double layer pure copper 2oz PCB.

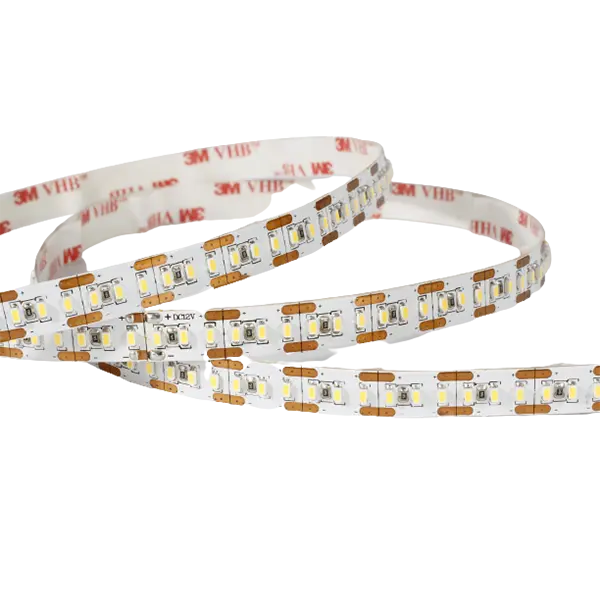

3M VHB adhesive tape for easy installation (IE3 with 3M 300LSE tape).
High brightness of SMD 3014 LED strip; 120 degree.
Standard 5M on the reel for IE and IE2, 3M on the reel for IE3.
IE3 series should work with aluminum profile.

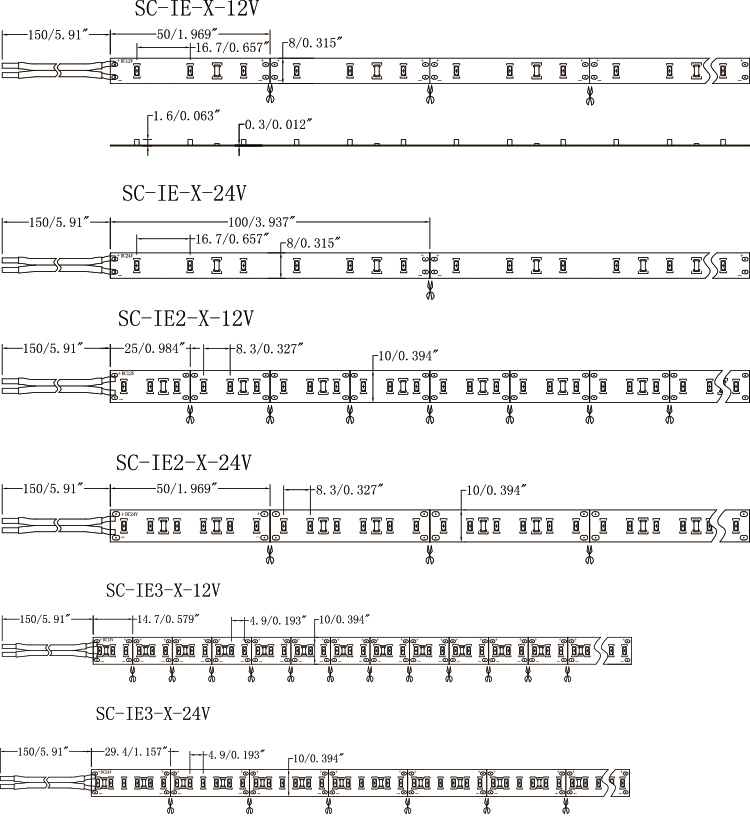

Model | Color | Lumen | LED type | LED qty. (leds/m) | Width*length (mm) | DC voltage (V) | Rated watt (W/m) | CRI | IP |
SC-IE-X | White | 760 | 3014 | 60 | 8*5000 | 12/24 | 7.2 | >80 | 20/64/65/68 |
Neutral white | 650 | ||||||||
Warm white | 600 | ||||||||
R | / | 3014 | 60 | 8*5000 | 12/24 | 7.2 | >80 | 20/64/65/68 | |
G | / | ||||||||
B | / | ||||||||
Y | / | ||||||||
SC-IE2-X | White | 1500 | 3014 | 120 | 10*5000 | 12/24 | 14.4 | >80 | 20/64/65/68 |
Neutral white | 1320 | ||||||||
Warm white | 1200 | ||||||||
R | / | 3014 | 120 | 10*5000 | 12/24 | 14.4 | >80 | 20/64/65/68 | |
G | / | ||||||||
B | / | ||||||||
Y | / | ||||||||
SC-IE3-X | White | 2100 | 3014 | 204 | 10*5000 | 12/24 | 14.4 | >80 | 20/64/65/68 |
Neutral white | 1980 | ||||||||
Warm white | 1540 | ||||||||
R | / | 3014 | 204 | 10*5000 | 12/24 | 24.5 | >80 | 20/64 | |
G | / | ||||||||
B | / | ||||||||
Y | / |
