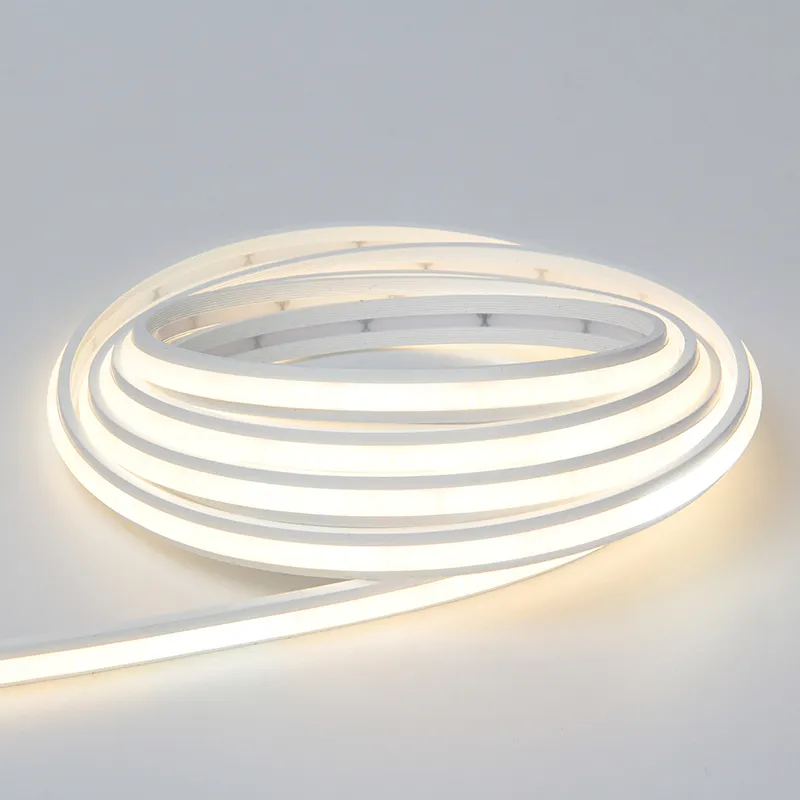

Smooth seamless linear glow
High-Density 1510 LEDs for Smooth, Even Glow. Better lighting
consistency, dot-free.
CRI90
Vivid, true-to-life colors for premium lighting effects.

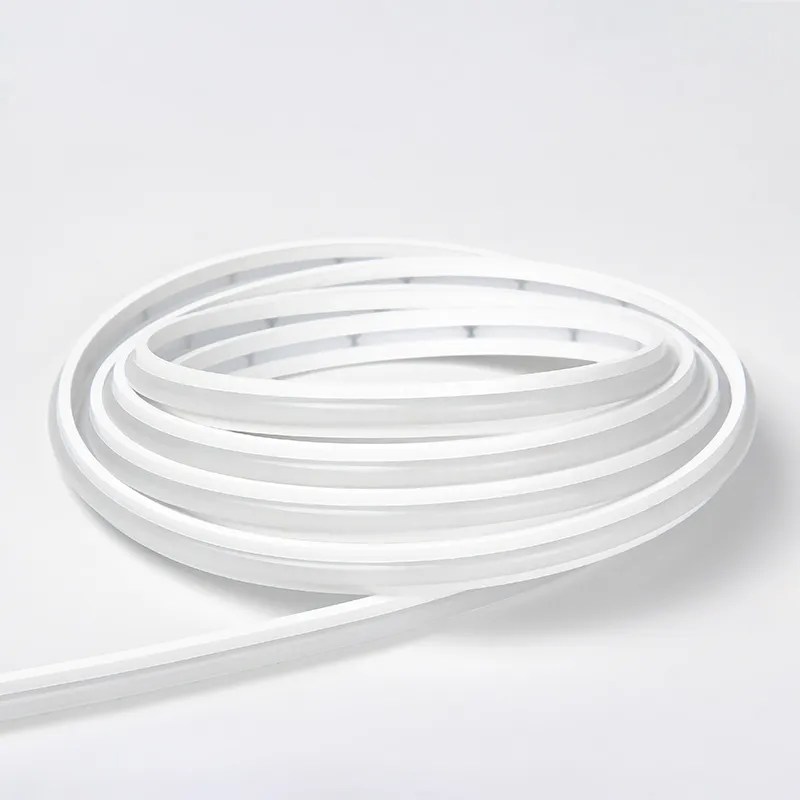

Smooth line strip
No solder joints on PCB board, Appearance looks more elegant and clean
Min.Length: 40mm
Customize your length with easy cutting, perfect for any installation scenario.

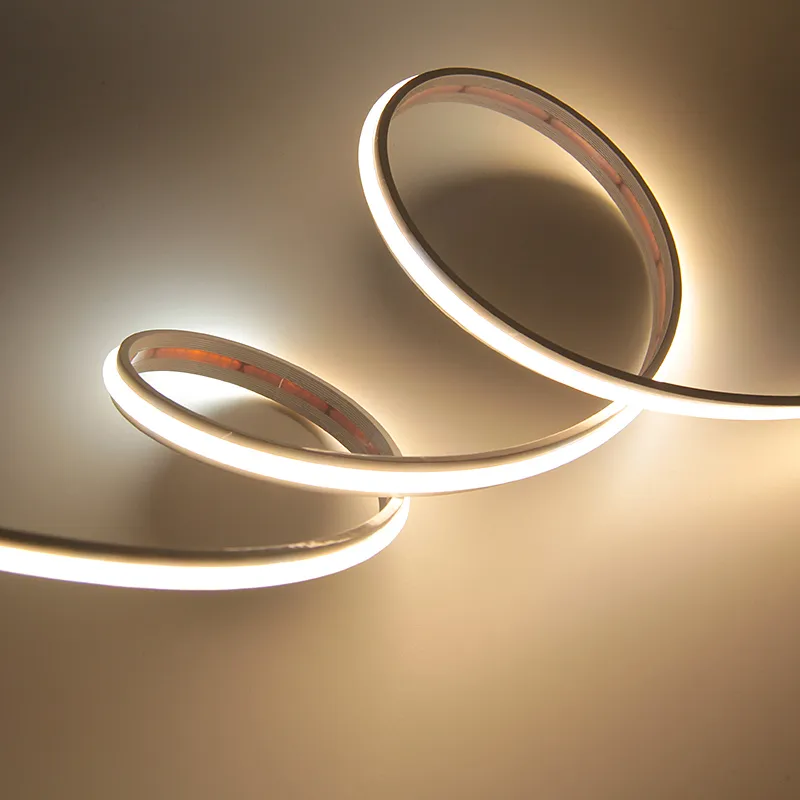

Flexible Bending for Curves
Bending radius >30mm, easily fits curved surfaces and corners.
IP67 Waterproof
Heat-resistant, UV-resistant, and IP67 waterproof for versatile
indoor and outdoor use.

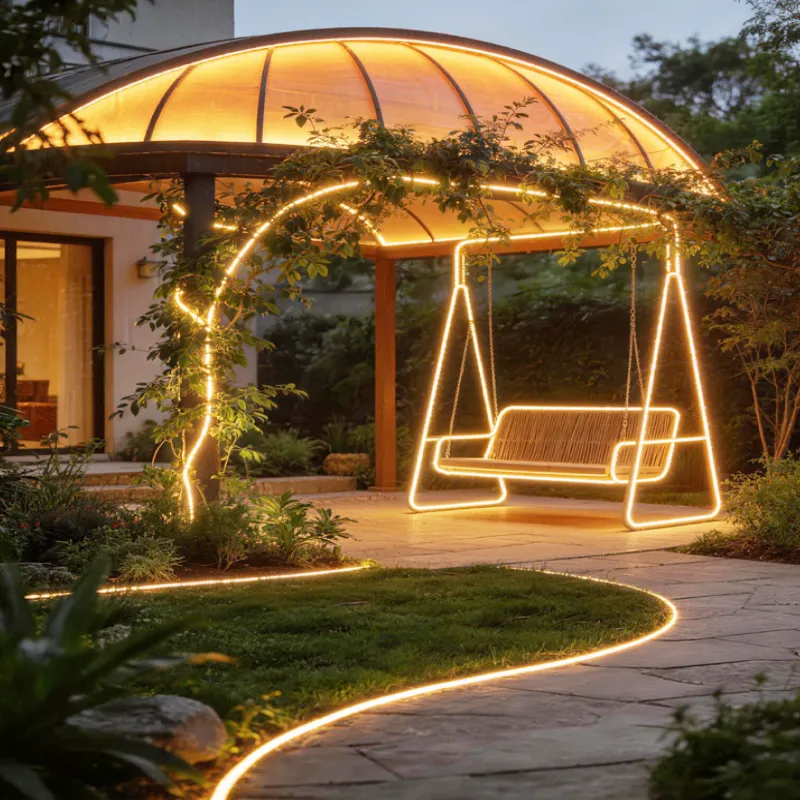

Widely used in hotels, shopping malls, furniture, cabinets, shelf,
as decoration lighting, direct lighting or indirect lighting.
| Model | Wave Length & CCT Range(for LED only) | Luminous Flux (lm/M) | CRI | LED Type | LED Qty. (PCS/M) | DC Voltage(V) | Rated Watt(w/m) | Beam Angle | PCB Width (mm) | IP | |
| SC-1510-08-JT1005- XX-24-320-8-IP67 | WW | 2800-3200K | 1000 | 90 | 1510 | 320 | 24 | 9 | 130° | 8mm | 67 |
| NW | 3800-4500K | 1020 | |||||||||
| W | 6000-6500K | 1030 | |||||||||
| R | 620-630nm | \ | \ | ||||||||
| G | 515-530nm | ||||||||||
| B | 460-470nm | ||||||||||
Unit: mm/inch
