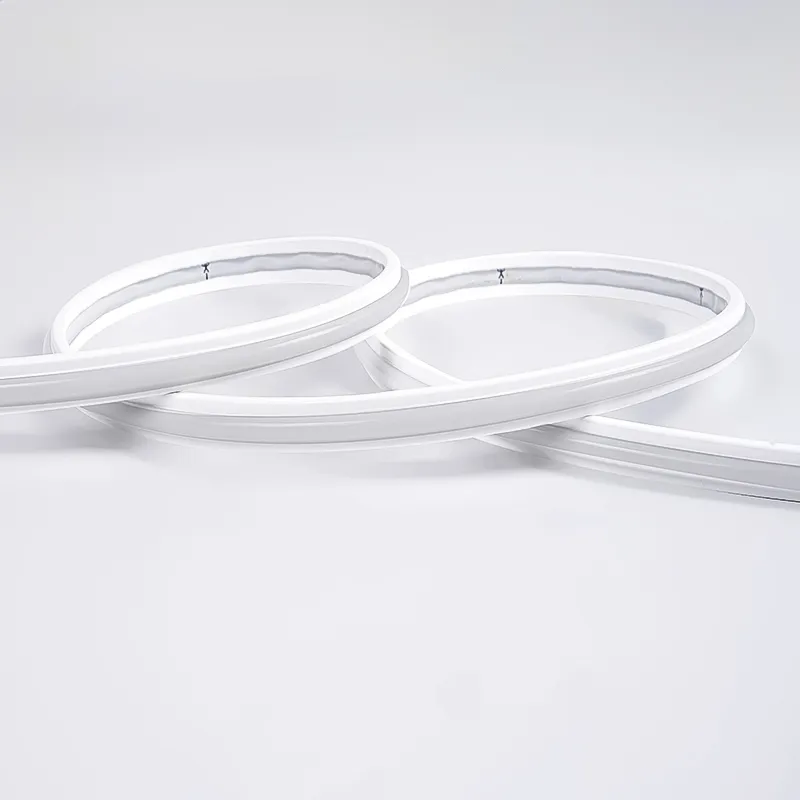

16x9.5mm ultra-thin, streamlined design, offering excellent installation concealment.
Dot-free illumination with uniform linear light output, delivering soft and translucent light effect.

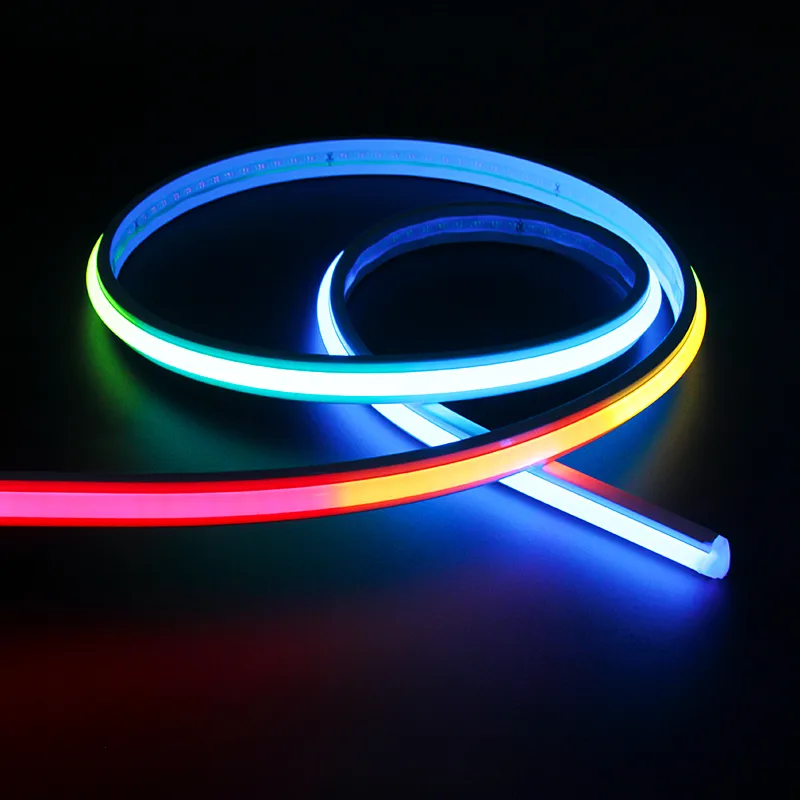

Dense SMD1510 LEDs array, RGB Magic + High CRI White Light (CRI>90).
Compatible with Signcomplex Smart Controller for multi-mode and multi-parameter adjustments.
Bending Radius >75mm, Flexible Installation.
Customize your length with easy cutting, perfect for any installation scenario.
Heat-resistant, UV-resistant, and IP67 waterproof for versatile indoor and outdoor use.

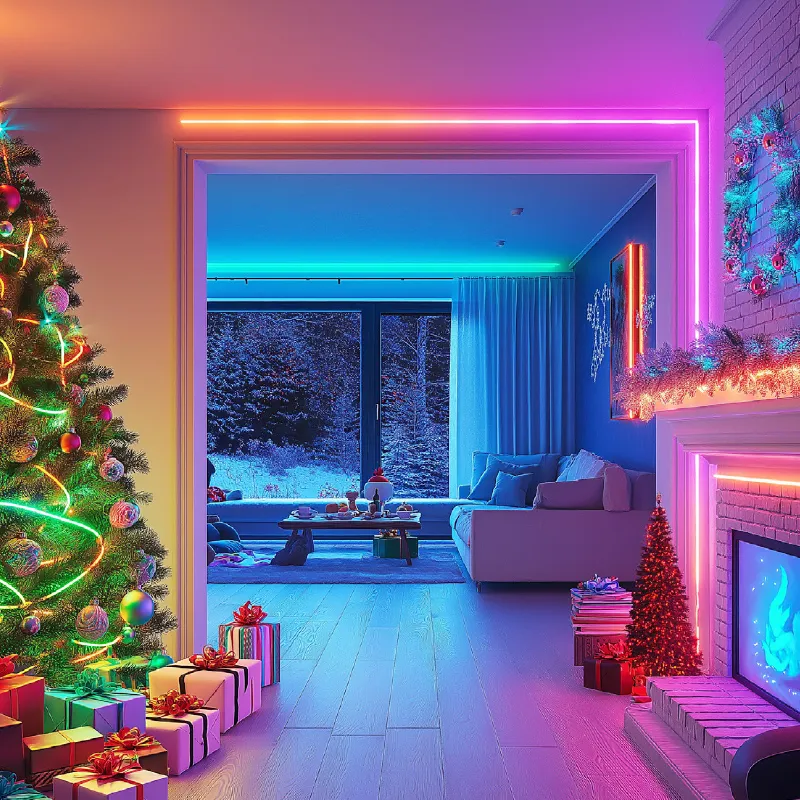

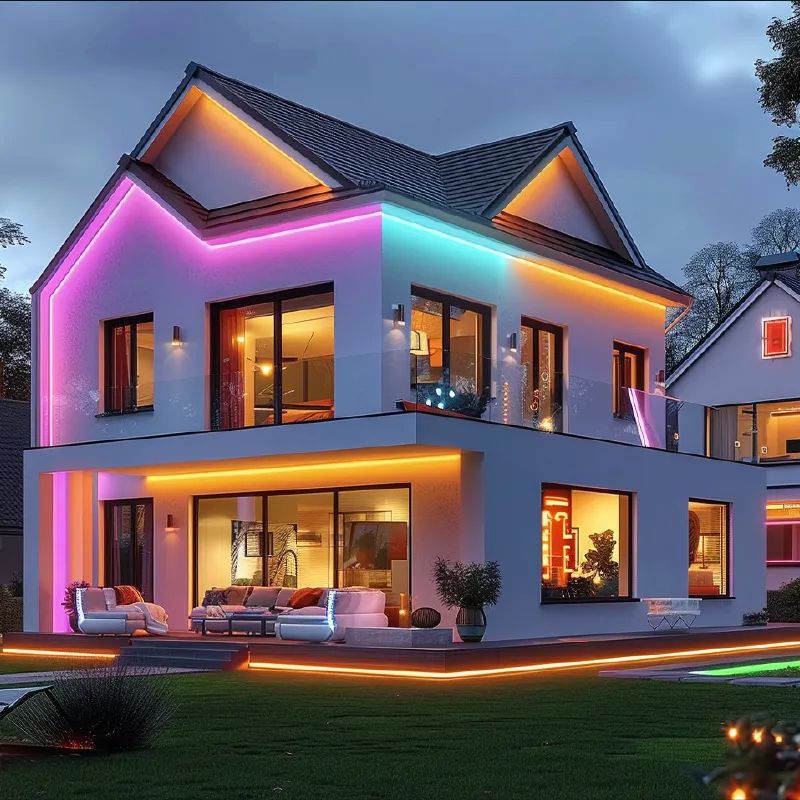

Widely used in hotels, shopping malls, furniture, cabinets, shelf, as decoration lighting, direct lighting or indirect lighting.
| Model | Wave Length & CCT Range(for LED only) | Luminous Flux (lm/M) | CRI | LED Type | LED Qty. (PCS/M) | DC Voltage(V) | Rated Watt(w/m) | Beam Angle | PCB Width (mm) | IP | |
| SC-1510-28-TT1695 -RGBIC+XX- 560-24-12-IP67 | RGB Mixed White | 280 | \ | 1510 | 560 | 24 | 12 | 130-140° | 12 | 67 | |
| R | 625-635nm | 57 | 4 | ||||||||
| G | 515-530nm | 180 | 4 | ||||||||
| B | 460-470nm | 47 | 4 | ||||||||
| WW | 2800-3200K | 320 | 90 | 6 | |||||||
| NW | 3800-4500K | 350 | 90 | 6 | |||||||
| W | 6000-6500K | 340 | 90 | 6 | |||||||
Unit: mm/inch
