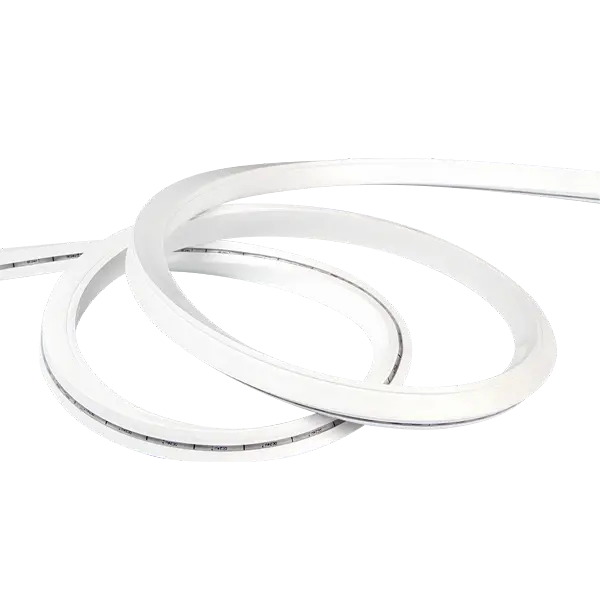

15mm Silicon Top-view Neon Flex

15mm Silicon Top-view Neon Flex

  • High brightness 2835 SMD LED (single color & RGB color).

  • 15*15mm Dimension & Minimum bending radius can be 75mm.

  • Top-View/ Dot-free illumination and high uniformity.

  • UV-resistant high quality silicon material.

  • Extrusion process & injection moulding for end cap make IP67.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelWave length&CCT
range(for led only)
Luminous flux
(lm/M)
PCB width
(mm)
Max. length(m)Min. length(mm)DC voltage(V)LED qty.(pcs/m)Rated watt(W/m)IPLED type
SC-TSE1528-3D-96
(3-direction bent)
WW2800-3200K9368520.83249614.4672835
NW3800-4500K1001
W6000-6500K1003
SC-TSE1528-128-XXWW2800-3200K8458562.5241289.6672835
NW3800-4500K890
W6000-6500K875
R620-630nm2258562.5241289.6672835
G520-530nm783
B465-475nm142
SC-TSE1528-128-XXRGBN/A28785502412014.4672835RGB
R620-630nm73
G515-530nm198
B460-470nm32

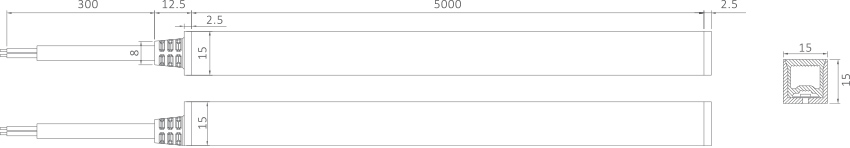

Size
