DC48V Constant-current Strip

DC48V Constant-current Strip

  • Only one-end powered, constant-current design can ensure 50 meters have the same brightness.

  • Over-heat & reverse-input protection, ensure good performance and long lifespan.

  • The input voltage range is 46-50V DC, wide input range can comply with most of the power supply sold in the market.

  • Minimum cuttable length is 100mm, can meet different installation length.

  • CRI80 and CRI 90 are both available, with high color consistency.

DC48V Constant-current Strip
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCT RangeLuminous FluxLED TypeCRIPCB WidthMax.LengthDC VoltageLED Qty.Rated WattIP
(lm/m)(mm)(m)(V)(pcs/m)(w/m)
SC-2835CC-120-24K-482300K-2500K5062835>801250481205.2820
SC-2835CC-120-27K-482600K-2800K635
SC-2835CC-120-30K-482900K-3200K646
SC-2835CC-120-40K-483750K-4280K684
SC-2835CC-120-65K-486100K-6900K651
SC-2835CC-120-H27K-482300K-2500K515>90
SC-2835CC-120-H30K-482600K-2800K567
SC-2835CC-120-H40K-482900K-3200K583
SC-2835CC-120-H65K-483750K-4280K559
SC-2835CC-120-H24K-486100K-6900K405
SC-SF-2835CC-120-24K-482300K-2500K4922835>801250481205.2865
SC-SF-2835CC-120-27K-482600K-2800K599
SC-SF-2835CC-120-30K-482900K-3200K616
SC-SF-2835CC-120-40K-483750K-4280K650
SC-SF-2835CC-120-65K-486100K-6900K623
SC-SF-2835CC-120-H27K-482300K-2500K524>90
SC-SF-2835CC-120-H30K-482600K-2800K540
SC-SF-2835CC-120-H40K-482900K-3200K564
SC-SF-2835CC-120-H65K-483750K-4280K546
SC-SF-2835CC-120-H24K-486100K-6900K407

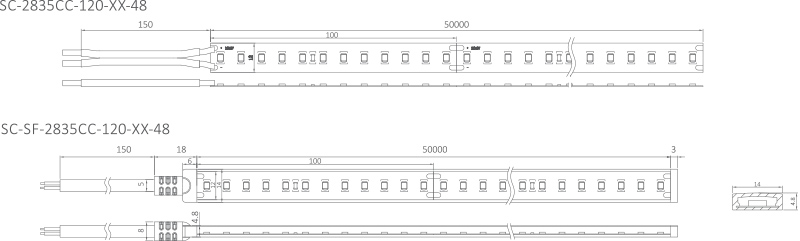

Size
