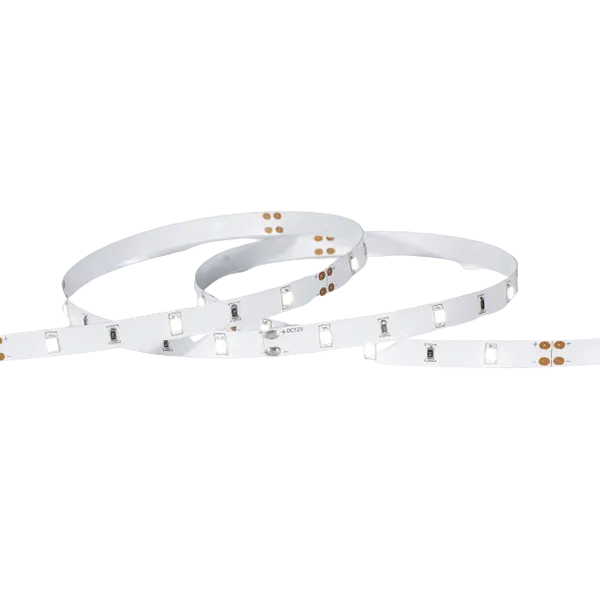

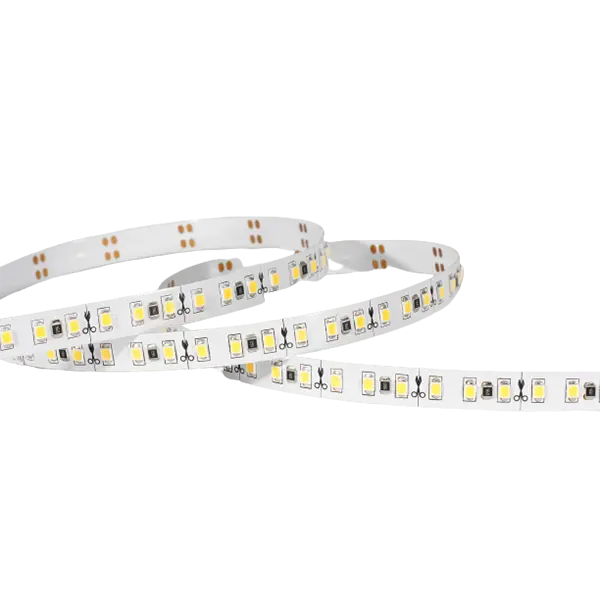

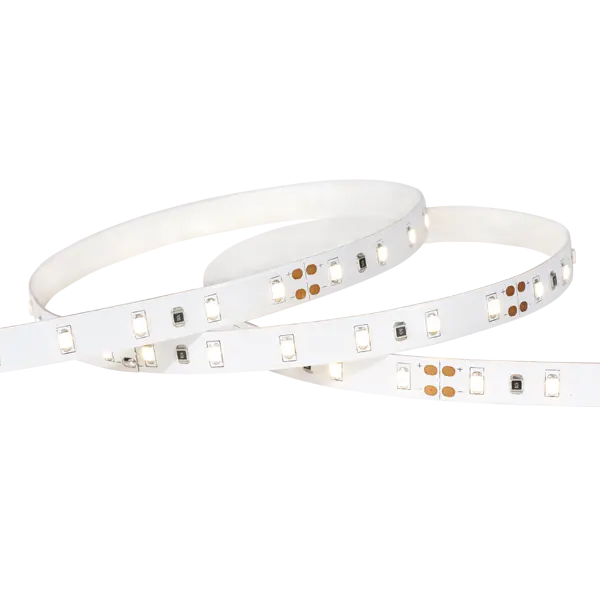

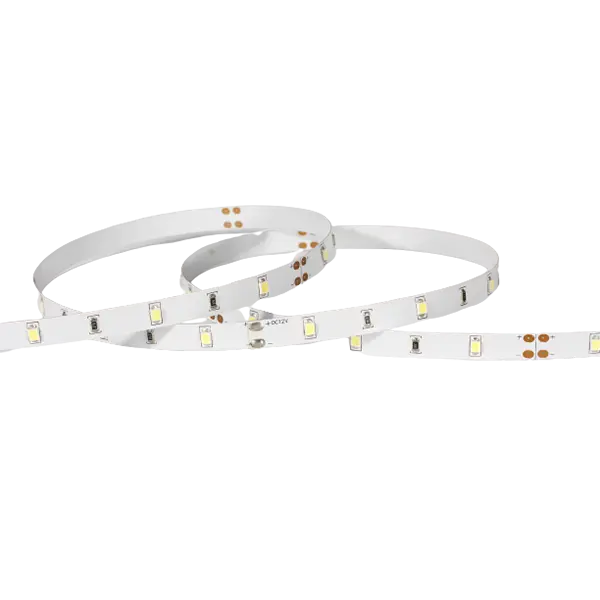

2835IG Classical Flexible LED Strip

2835IG Classical Flexible LED Strip

  • High efficiency and luminous LED strip.

  • Double layer pure copper 2oz PCB.

  • 3M VHB adhesive tape for easy installation (IG3 with 3M 300LSE tape).

  • High brightness of 2835 SMD LED or high 2835 SMD LED lumens; 120 degree.

  • Standard 5M on the reel for IG and IG2, 3M on the reel for IG3.

  • IG3 series should work with aluminum profile.

ul tuv ce rohs warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColorLumenLED typeLED qty. (leds/m)Width*length(mm)DC voltage(V)Rated watt(W/m)CRIIP
SC-IG1-XWhite7102835308*500012/247.2>8020/64/ 65/68
Neutral white660
Warm white620
SC-IG2-XWhite138028356010*500012/2414.4>8020/64/ 65/68
Neutral white1250
Warm white1230
SC-IG3-XWhite2760283512010*300012/2428.8>8020/64
Neutral white2710
Warm white2390

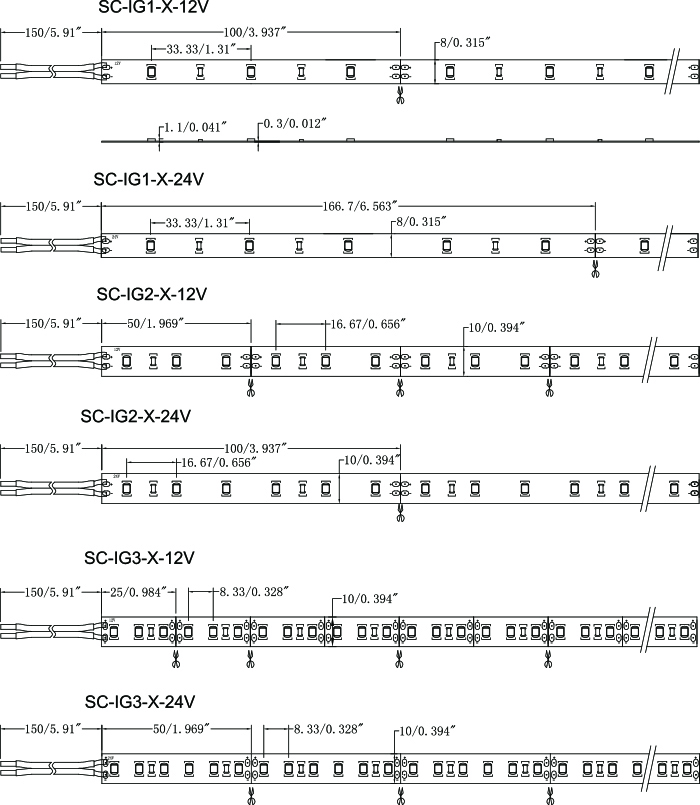

Size

Recessed Troffer
