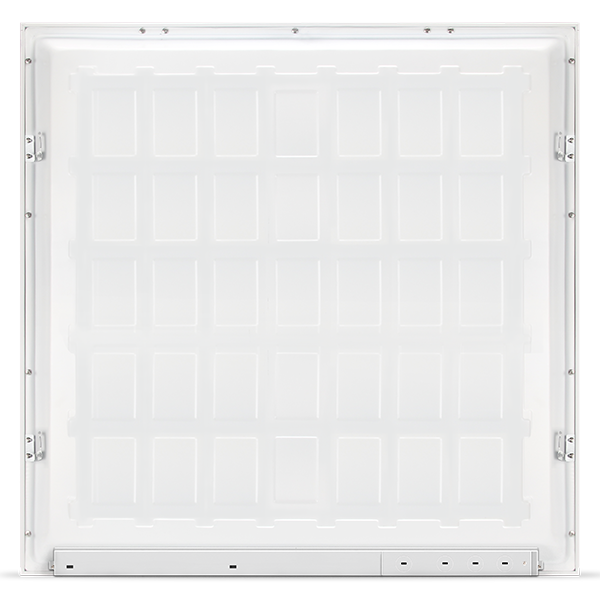

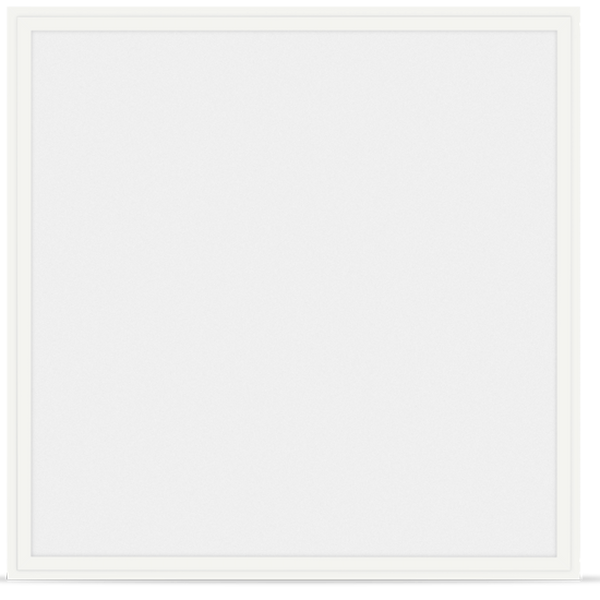

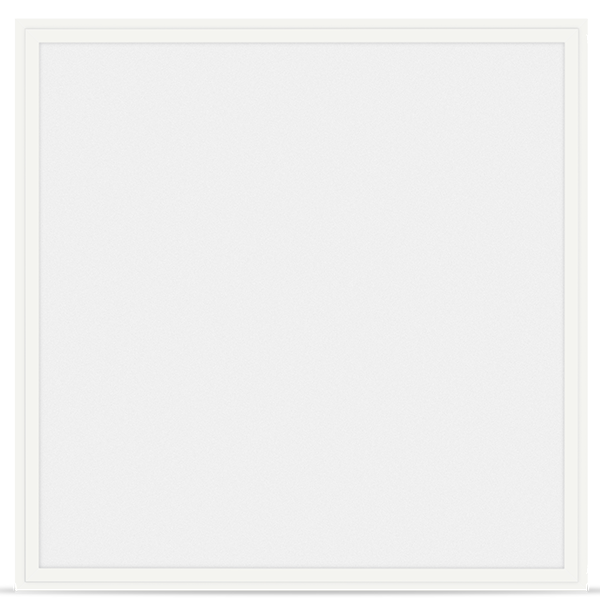

Wattage Adjustable & Color Tunable Panel Light Back-lit Series

Wattage Adjustable & Color Tunable Panel Light Back-lit Series

LED flat panel light is the latest new generation of backlit lighting fixture, it has the uniform and smooth lighting effect and elegant appearance design.And each fixture is 9 SKUS in 1 unit design, so the users can easily set the wattage and color temperature that they want.

  • Flicker free LED driver

  • Constant current design,PF>0.9,THD<15%.

  • 3 in 1 dimming mode:0-10V,PWM,Rx

  • Smoothly dimming 0-100%,can dim to off

  • Short circuit,open circuit protection,and 1KV surge protec



Wattage Adjustable & Color Tunable Panel Light Back-lit Series
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLight efficiencySize(feet)PowerLED typeVoltage(V)CRIColor tunable selectable way
SC-PBCAW22-B40W-02RE
SC-PBCAW14-B40W-02RE
SC-PBCAW24-B50W-02RE
3500K-4000K-5000K110LM/W2*21*42*4

26W/30W/40W

26W/30W/40W

30W/40W/50W

2835100-277VAC>80DIP switch
SC-PBCAW22-B40W-H-02RE
SC-PBCAW14-B40W-H-02RE
SC-PBCAW24-B50W-H-02RE
3500K-4000K-5000K130LM/W2*21*42*4

26W/30W/40W

26W/30W/40W

30W/40W/50W

2835100-277VAC>80DIP switch

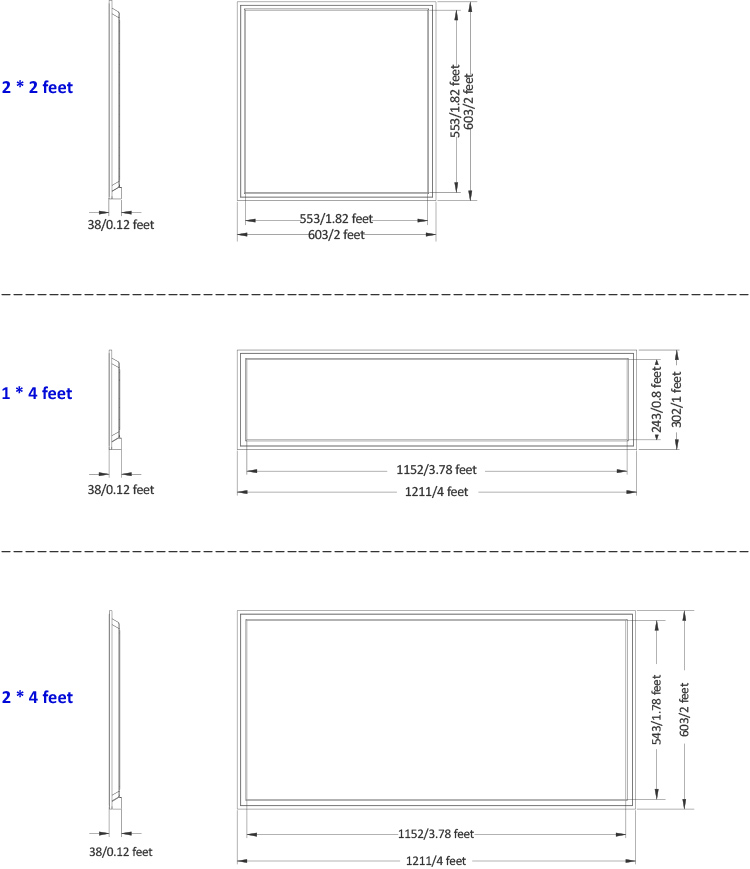

Size
