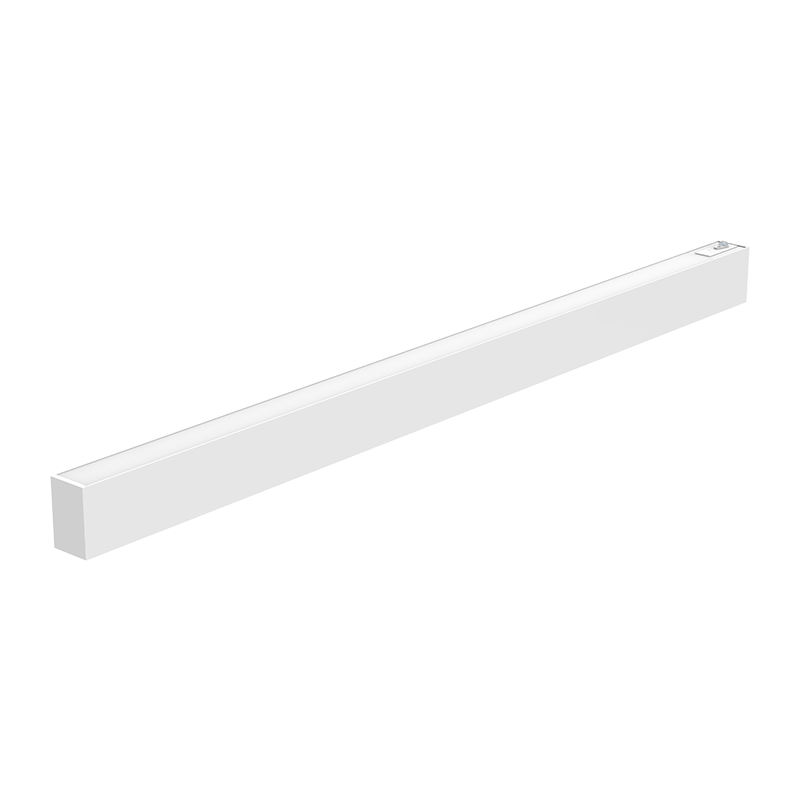

8050 PIR Sensor Linear Light

8050 PIR Sensor Linear Light

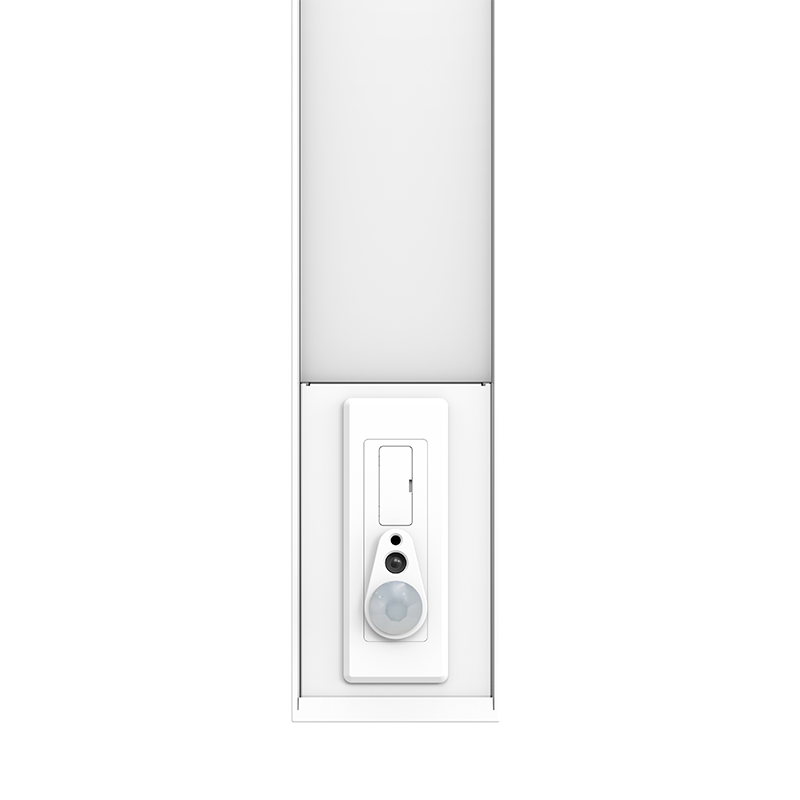

Linear light with sensor, simple design, beautiful and generous. PIR human body sensing function can accurately sense human body temperature and action to prevent false triggering. With DAYLIGHT HARVESTING function, intelligently reduces power, energy saving.


  • PIR sensing, intelligently adjusts brightness, energy saving.

  • Simple and modern design, screwless at end cap.

  • Extrusion aluminum lamp body and PC cover, anti-UV and anti-yellowing.

  • Smooth and soft lighting effect, no dark dot or shadow at the lighting area.

ce rohs warranty 5years cri 80 0 10v dimmers pir remote pf 9 free
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumensPowerBeam angleIP ratingInput voltageLED typeCRIPF
SC-SL8050IF-036-AW-01WW6000-6500K3300LM36W110°IP40220-240VAC
50/60HZ
2835≥80>0.9
SC-SL8050IF-036-AW-01NW3800-4200K3600LM
SC-SL8050IF-036-AW-01CW2800-3200K3500LM
SC-SL8050IF-045-AW-01WW6000-6500K3780LM45W110°IP40220-240VAC
50/60HZ
2835≥80>0.9
SC-SL8050IF-045-AW-01NW3800-4200K3960LM
SC-SL8050IF-045-AW-01CW2800-3200K3860LM
SC-SL8050IF-060-AW-01WW6000-6500K4980LM60W110°IP40220-240VAC
50/60HZ
2835≥80>0.9
SC-SL8050IF-060-AW-01NW3800-4200K5280LM
SC-SL8050IF-060-AW-01CW2800-3200K5180LM

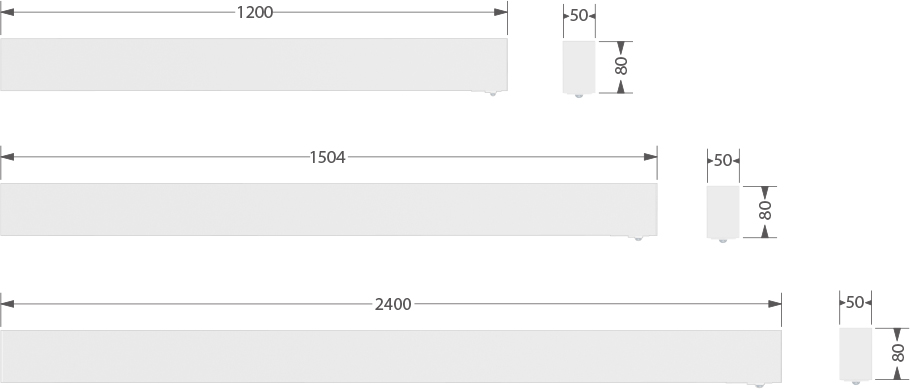

Size

Wall Track Lighting
