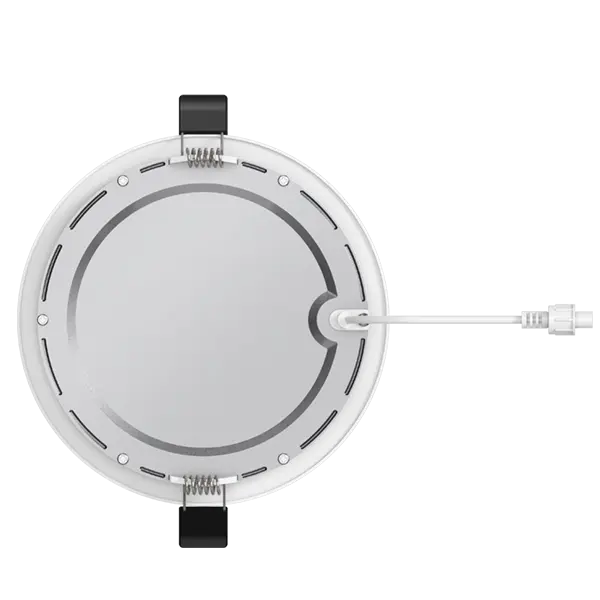

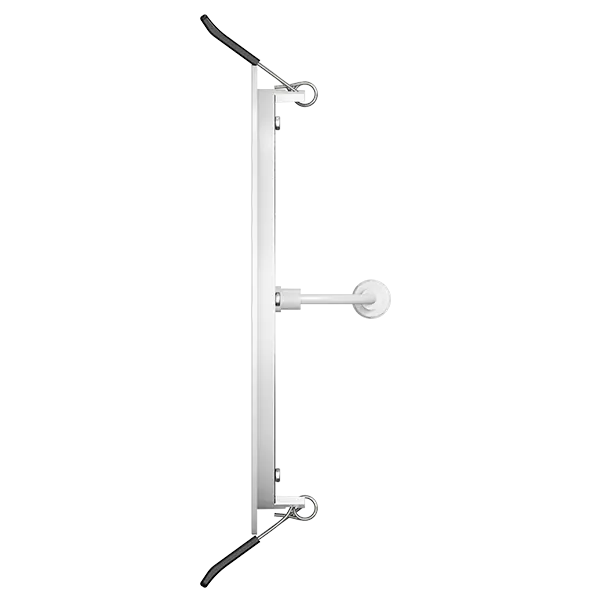

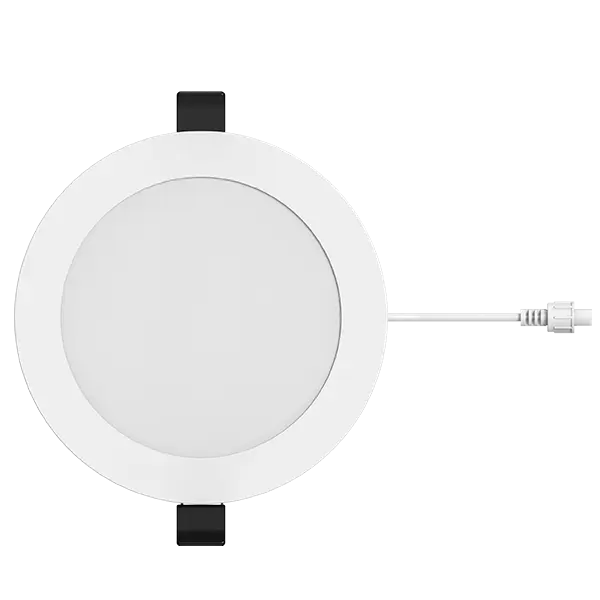

5CCT Adjustable Slim Recessed Downlight (v6)

5CCT Adjustable Slim Recessed Downlight (v6)

  • Super slim lamp body, 1/2 inch high;

  • The diffuser plate adopt double-sided frosted plate, more uniform light;

  • The frame adopt ADC 12, better cooling effect; adopt low-power large LEDs, and LEDs work in low temperature;

  • The back cover adopt bending, powder spraying; consistent whole effect, and prevent light-leaking;

  • The driver is designed with high PF(PF>0.9) and is dimmable with most regular dimmers, dimming range up to 10%-100%.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelColourCCTLuminous flux(±10%)LED typeCutout sizeVoltage(V)Power(W)(±10%)Beam angleCRIPF
SC-DL09-D04-A1-03RE5 CCT
 adjustable
2700K
3000K
3500K
4000K
5000K
>82LM/W28354-1/4inch120VAC9W110°>90>0.9
SC-DL12-D06-A1-03RE>82LM/W6-1/4 inch12W
SC-DL12-D06H-A1-03RE>100LM/W6-1/4 inch12W

Size

Unit: inch
