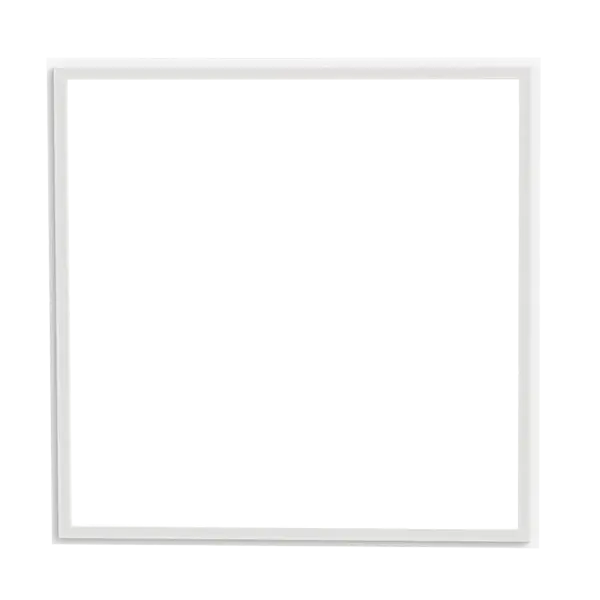

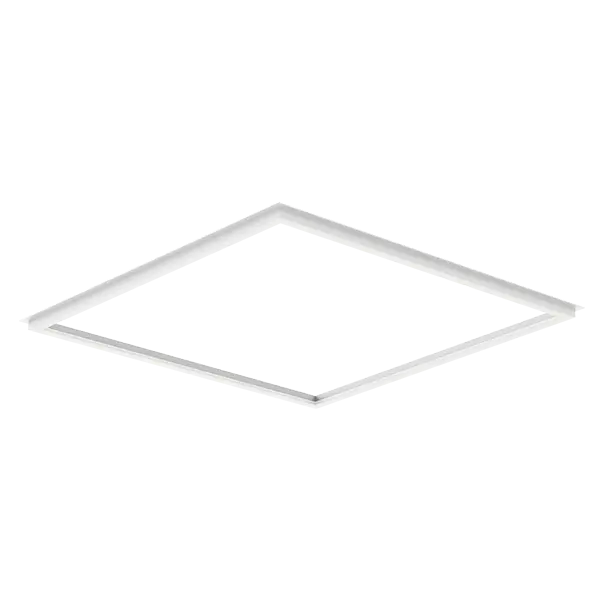

Luminous square frame lines, fashionable and simple appearance.
The four aluminum frames are spliced seamlessly to achieve more uniform heat dissipation.
High quality PC milky white diffuser, uniform and soft light, protecting eyes
85% less weight and 50% less package volume than conventional panel lights, save more freight.
Concealed installation, combined with the ceiling, no separate hole.
| Model | CCT | Lumen(lm±10%) | Beam(angle) | LED Type | Power(w) (±10%) | Voltage | CRI | PF |
| Frame light 3060 | 6000-6500K | 2160 | 120 | 5730 | 24W | 220-240V 50/60Hz | ≥80 | >0.9 |
| 3800-4200K | 2160 | |||||||
| 2800-3200K | 2112 | |||||||
| Frame light 6060 | 6000-6500K | 3200 | 120 | 5730 | 40W | 220-240V 50/60Hz | ≥80 | >0.9 |
| 3800-4200K | 3600 | |||||||
| 2800-3200K | 3400 | |||||||
| Frame light 3012 | 6000-6500K | 3500 | 120 | 5730 | 40W | 220-240V 50/60Hz | ≥80 | >0.9 |
| 3800-4200K | 3600 | |||||||
| 2800-3200K | 3520 |
