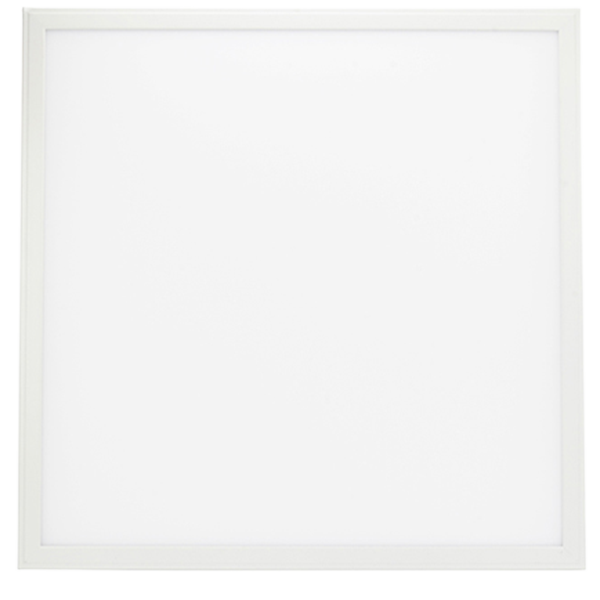

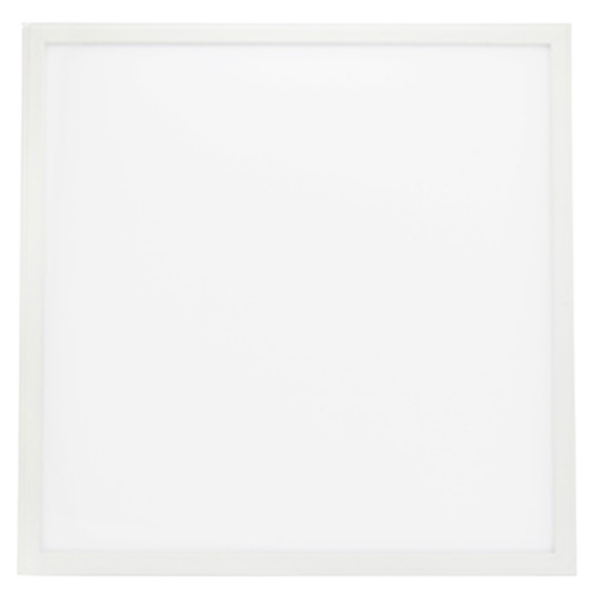

Wattage Adjustable & Color Tunable Panel Light Edge-lit Series

Wattage Adjustable & Color Tunable Panel Light Edge-lit Series

LED flat panel light is the latest new generation of edge-lit lighting fixture, it has the uniform and smooth lighting effect and elegant appearance design. And each fixture is 15 SKUS in 1 unit design,so the users can easily set the wattage and color temperature that they want.


1. Wattage adjustable & color tunable led flat panel light.

One piece wattage adjustable and color tunable panel light=15 pcs regular panel light now, it can save the shipping time, warehouse space and your stock cost.


2. Visual Uniformity.

Using high quality LGP with silk printing technology, the light uniformity rate is greater than 85%. No yellow edge and dark area, perfect lighting effect.


3. High efficiency up to 130LM/W, DLC standard and Premium version for optional.

High transmission LGP (more than 90%), high lumen LED efficacy paired with high power factor drivers.


4. Flicker free LED drive.

Constant current design, PF>0.9, THD<15%. 3 in 1 dimming mode: 0-10V, PWM, Rx Smoothly dimming 0-100%, can dim to off Short circuit, open circuit protection, and 1KV surge protection.

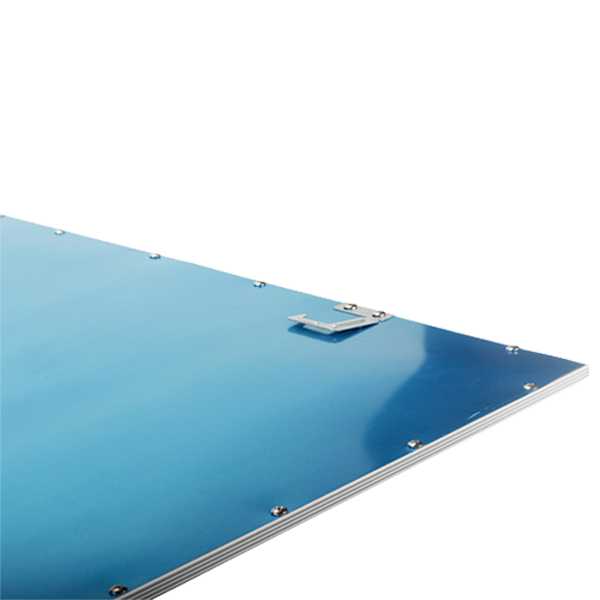

5. Three installation options.

Each panel with standard clips for recessed and suspending installation. Optional surface mounted kit available.

110 pf 9 100 277v ac 0 10v dimmers cri 80 intertek rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLight efficiencySize(feet)PowerLED typeVoltage(V)CRIColor tunable selectable way
2X2 105LMW panel light
1X4 105LMW panel light
2X4 105LMW panel light
2X4 105LMW panel light
3500K-4000K-5000K105LM/W2*21*42*42*4

20W/25W/30W/35W/40W

20W/25W/30W/35W/40W

30W/35W/40W/45W/50W

40W/45W/50W/55W/60W

4014100-277VAC>80DIP switch
2X2 130LMW panel light
1X4 130LMW panel light
2X4 130LMW panel light
2X4 130LMW panel light
3500K-4000K-5000K130LM/W2*21*42*42*4

20W/25W/30W/35W/40W

20W/25W/30W/35W/40W

30W/35W/40W/45W/50W

40W/45W/50W/55W/60W

4014100-277VAC>80DIP switch
2X2 130LMW panel light
1X4 130LMW panel light
2X4 130LMW panel light
2X4 130LMW panel light
3500K-4000K-5000K105LM/W2*21*42*42*4

20W/25W/30W/35W/40W

20W/25W/30W/35W/40W

30W/35W/40W/45W/50W

40W/45W/50W/55W/60W

4014100-277VAC>80Wall switch(Standard0-10V dimmer)
2X2 130LMW panel light
1X4 130LMW panel light
2X4 130LMW panel light
2X4 130LMW panel light
3500K-4000K-5000K130LM/W2*21*42*42*4

20W/25W/30W/35W/40W

20W/25W/30W/35W/40W

30W/35W/40W/45W/50W

40W/45W/50W/55W/60W

4014100-277VAC>80Wall switch(Standard0-10Vdimmer)

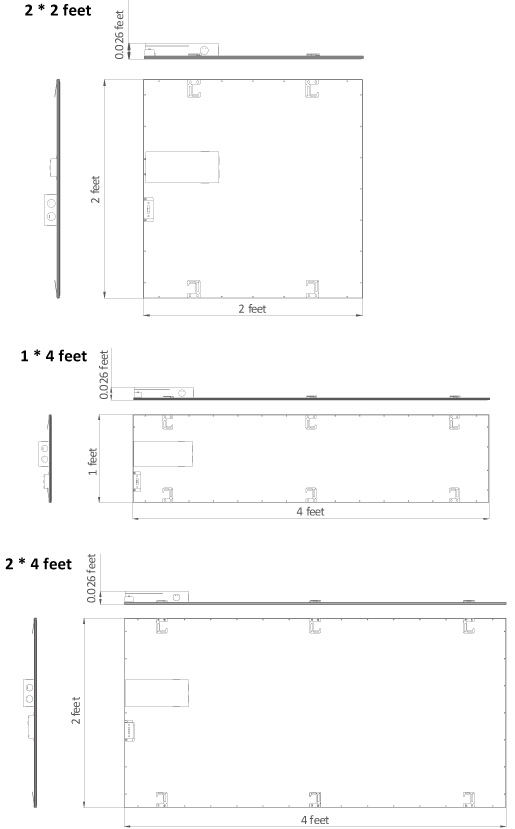

Size
