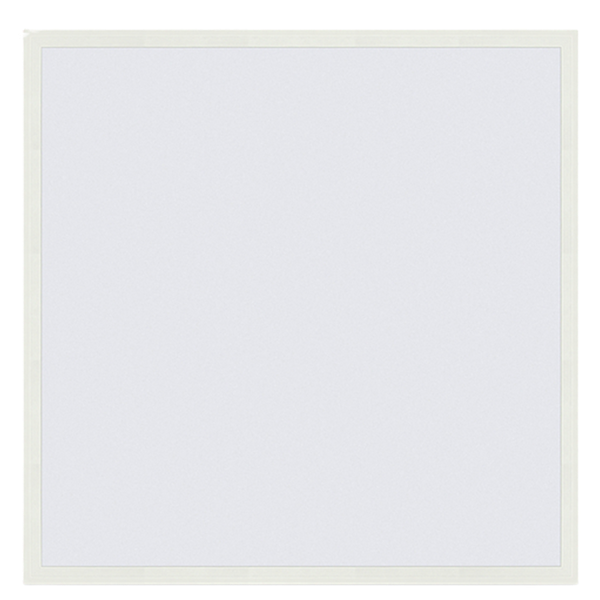

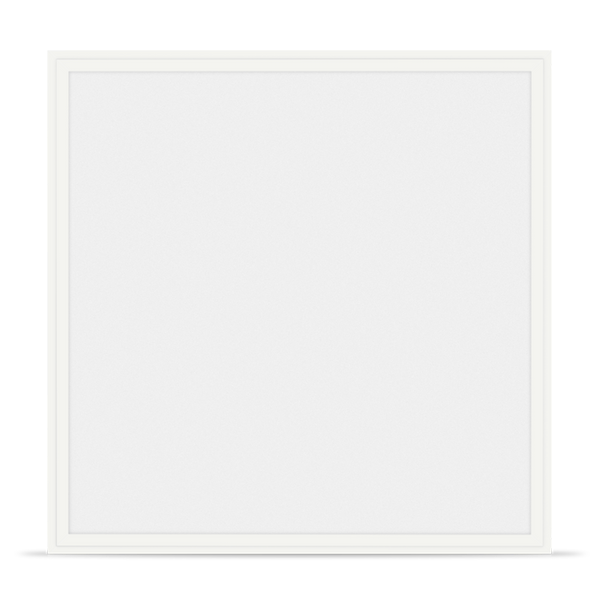

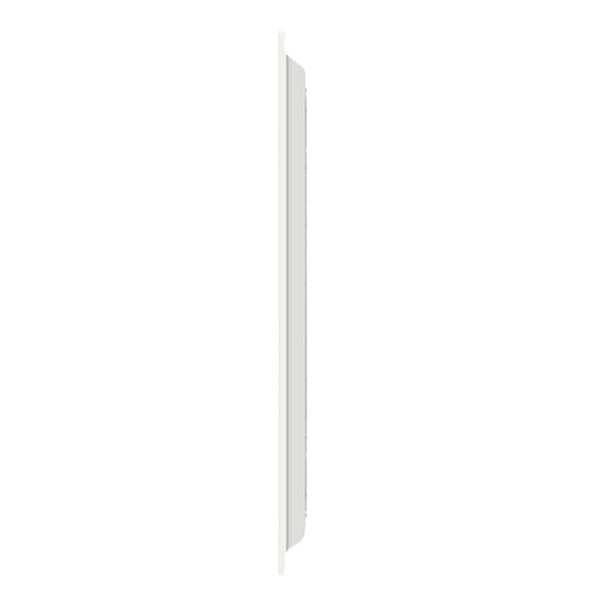

Super Slim Backlit Panel Light

Super Slim Backlit Panel Light

The frame adopts jointing profile design and color of the external frame is RAL9003.

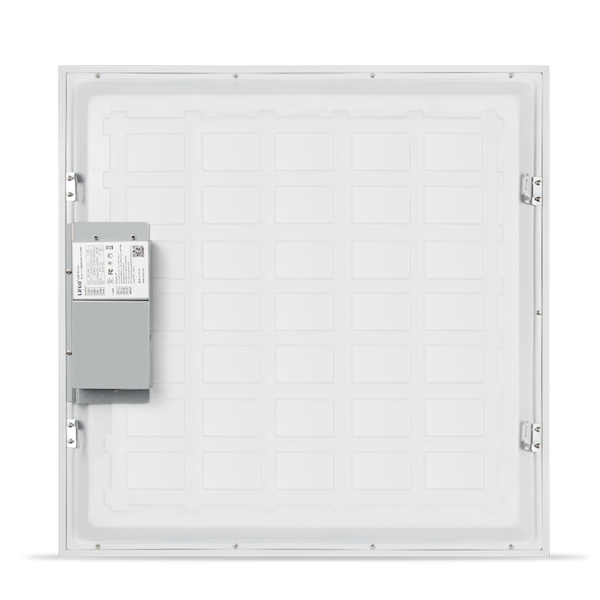

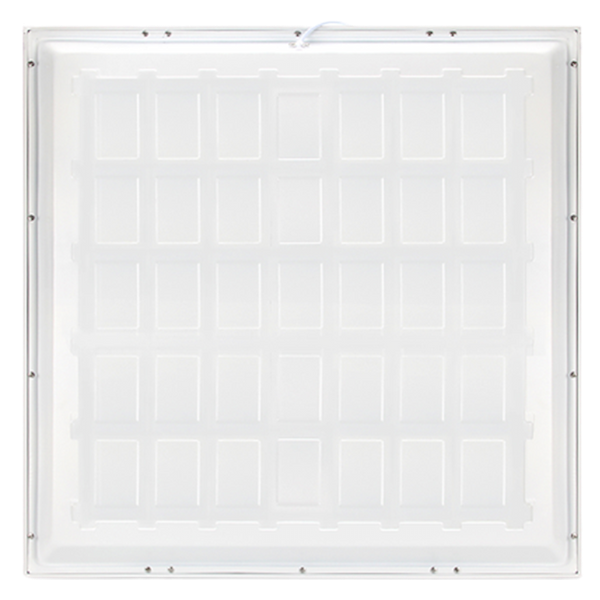

Bottom of the back cover is produced by stamping structure, which can effectively guarantee the appearance of the product. The surface is processed by electrostatic dusting.

High-haze diffusion plate effectively breaks up the light sent forth from the lamp, making the light more uniform.

High-power 2835 LED, 1W of each, high lighting effect, lifetime of more than 50000 hours.

High-light-transmittance and diffuse lens, which is pasted on the lamp panel by silica gel, changes the light of beam angle 120°, which is sent forth from LED, to beam angle of 180°when the light passes through it, thus breaks up the light effectively.

An entire piece of reflective paper is pasted on the bottom of back cover to strengthen the diffuse reflection of light, thus enhances lighting effect of the product and makes the light more uniform.

Isolated power supply design, PF value>0.9, efficiency>85%.

Lamp and power supply is connected by pulling-resistant male connector and female connector to facilitate the replace of power supply.

Bottom emission lamp won’t turn yellow during use.

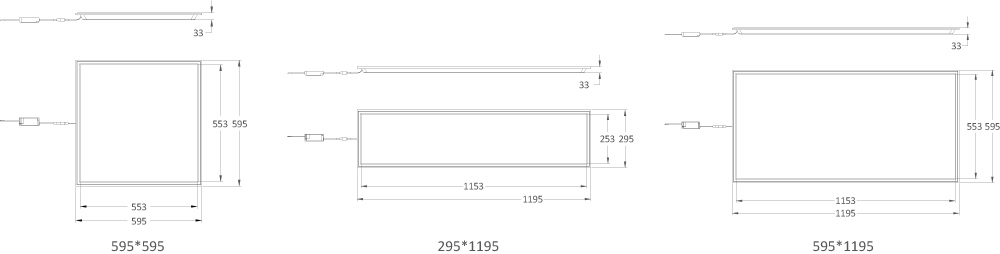

Our current available models are 595*595mm, 295*1195mm and 595*1195mm.


1. Lamp body material: Aluminum alloy + iron + PS.

2. Energy-saving percentage (compared with traditional type) With energy savings of up to 90% than incandescent light.

3. Lifetime: 50000H.

4. Exterior color: RAL9003 powder coated.

5. Available mode for other aspects: Recessed mounting, suspendent mounting and surface mounting.

6. Lighting effect: 100lm/W(-10%).

7. Operating environment: -10℃~40℃.

ce rohs 110 pf 9 220 240v ac cri 80 warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters


CCTLumen
(lm±10%)
LED typePower
(±10%)
VoltageBeam angleLight efficiency
(±10%)
CRI
6000-6500K4000283540W220-240V110°100lm/w>80
3800-4200K4000
2800-3200K3600
6000-6501K4000283540W220-240V110°100lm/w>80
3800-4201K4000
2800-3201K3600
6000-6502K5000283550W220-240V110°100lm/w>80
3800-4202K5000
2800-3202K4500

Size
