Linear light with sensor, simple design, beautiful and generous. PIR human body sensing function can accurately sense human body temperature and action to prevent false triggering. With DAYLIGHT HARVESTING function, intelligently reduces power, energy saving.
PIR sensing, intelligently adjusts brightness, energy saving.
Simple and modern design, screwless at end cap.
Extrusion aluminum lamp body and PC cover, anti-UV and anti-yellowing.
Smooth and soft lighting effect, no dark dot or shadow at the lighting area.

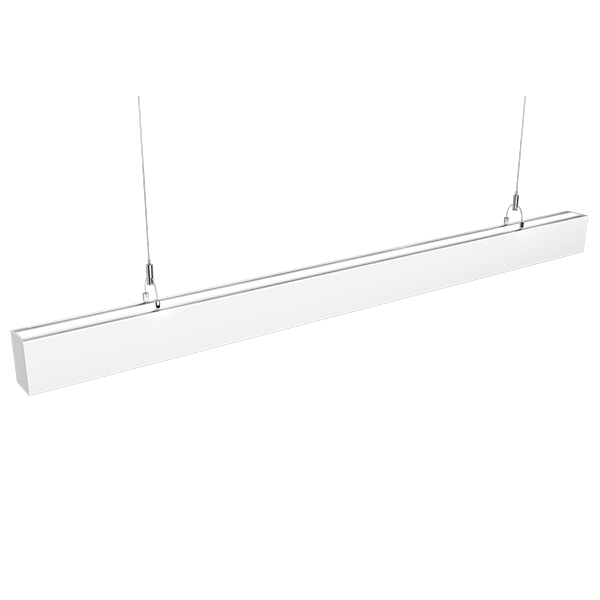

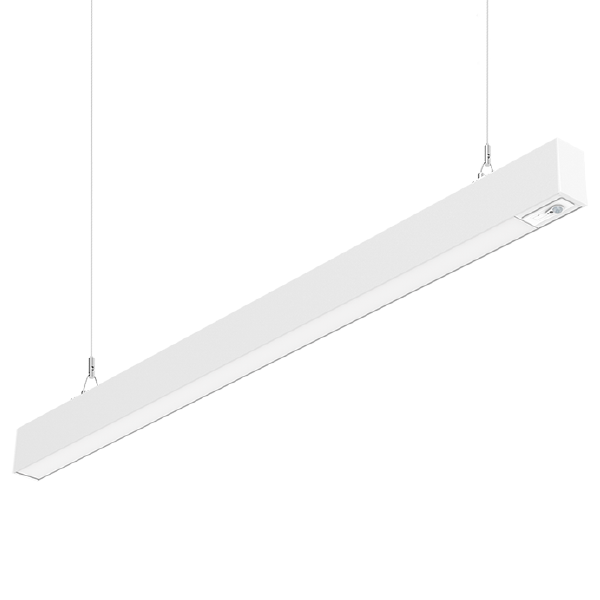

The product has two types: direct lighting and direct/indirect lighting.
The indirect lighting module is an integrated design with a quick coupling structure, which can be used as accessories for delivery, and customers can choose to install/purchase.
| Product name | Model | CCT | Lumen(lm) (±10%) | LED type | Power(W) (±10%) | Beam angle | CRI | PF | Voltage (V) | Remark |
| 1.2M Direct lighting only | SC-SL8055-040-D-IR-AW-CW | 6000-6500K | 4100 | SMD2835 | 40W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming +milky lens |
| SC-SL8055-040-D-IR-AW-NW | 3800-4200K | 4200 | ||||||||
| SC-SL8055-040-D-IR-AW-WW | 2800-3200K | 4000 | ||||||||
| SC-SL8055-040-D-IU-AW-CW | 6000-6500K | 4100 | No dimming +UGR＜19 lens | |||||||
| SC-SL8055-040-D-IU-AW-NW | 3800-4200K | 4200 | ||||||||
| SC-SL8055-040-D-IU-AW-WW | 2800-3200K | 4000 | ||||||||
| 1.5M Direct lighting only | SC-SL8055-050-D-IR-AW-CW | 6000-6500K | 5100 | SMD2835 | 50W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming +milky lens |
| SC-SL8055-050-D-IR-AW-NW | 3800-4200K | 5200 | ||||||||
| SC-SL8055-050-D-IR-AW-WW | 2800-3200K | 5000 | ||||||||
| SC-SL8055-050-D-IU-AW-CW | 6000-6500K | 5100 | No dimming +UGR＜19 lens | |||||||
| SC-SL8055-050-D-IU-AW-NW | 3800-4200K | 5200 | ||||||||
| SC-SL8055-050-D-IU-AW-WW | 2800-3200K | 5000 | ||||||||
| 2.4M Direct lighting only | SC-SL8055-080-D-IR-AW-CW | 6000-6500K | 8200 | SMD2835 | 80W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming +milky lens |
| SC-SL8055-080-D-IR-AW-NW | 3800-4200K | 8400 | ||||||||
| SC-SL8055-080-D-IR-AW-WW | 2800-3200K | 8000 | ||||||||
| SC-SL8055-080-D-IU-AW-CW | 6000-6500K | 8200 | No dimming +UGR＜19 lens | |||||||
| SC-SL8055-080-D-IU-AW-NW | 3800-4200K | 8400 | ||||||||
| SC-SL8055-080-D-IU-AW-WW | 2800-3200K | 8000 | ||||||||
| 1.2M Indirect lighting module | SC-SL8055-010-U-12-CW | 6000-6500K | 1025 | SMD2835 | 10W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming |
| SC-SL8055-010-U-12-NW | 3800-4200K | 1050 | ||||||||
| SC-SL8055-010-U-12-WW | 2800-3200K | 1000 | ||||||||
| 1.5M Indirect lighting module | SC-SL8055-013-U-12-CW | 6000-6500K | 1275 | 13W | 220-240VAC 50/60HZ | No dimming | ||||
| SC-SL8055-013-U-12-NW | 3800-4200K | 1300 | ||||||||
| SC-SL8055-013-U-12-WW | 2800-3200K | 1250 |
