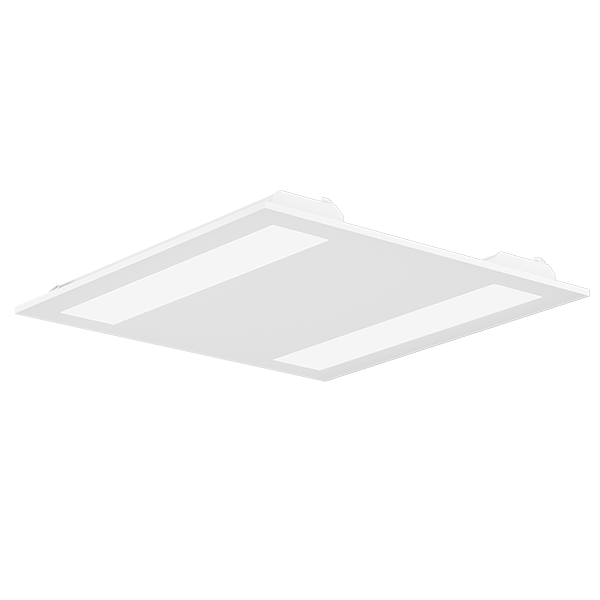

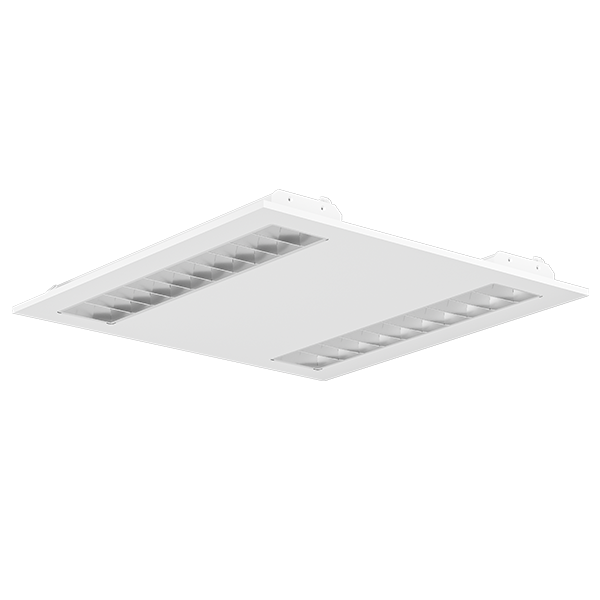

3CCT Lourves Light

3CCT Lourves Light

The product has simple appearance, soft light, and uniform luminance.

The lighting effect includes diffusion type and grille type, with adjustable color temperature through dip switch, widely used in office buildings, factories, department stores and other indoor sites.


  • Three CCT and three power adjustable, save stock cost.

  • Three lens version for optional: lourves lens, opal lens and micro prisma lens.

  • Aluminum lattice adopts high-quality aluminum profile.

  • The frame adopts iron frame, integrated molding process and stronger structure.

ce rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)PowerLED TypeBeam angelVoltage(V)/FrequencyCRIlens versionPF
±10%
SC-GLM-CCT6060-G40W3000K-4000K-6500K2700-300030WSMD283580°220-240VACRa>90Llourves lens>0.9
3200-360036W50/60Hz
3300-380040W
SC-GLM-CCT6060-L40W3000K-4000K-6500K2700-300030WSMD283590°220-240VACRa>90Micro prisma lens>0.9
3200-360036W50/60Hz
3300-380040W
SC-GLM-CCT6060-P40W3000K-4000K-6500K2700-300030WSMD2835110°220-240VACRa>90Opal lens>0.9
3200-360036W50/60Hz
3300-380040W
SC-GLM-CCT0312-G40W3000K-4000K-6500K2700-300030WSMD283580°220-240VACRa>90Llourves lens>0.9
3200-360036W50/60Hz
3300-380040W
SC-GLM-CCT0312-L40W3000K-4000K-6500K2700-300030WSMD283590°220-240VACRa>90Micro prisma lens>0.9
3200-360036W50/60Hz
3300-380040W
SC-GLM-CCT0312-P40W3000K-4000K-6500K2700-300030WSMD2835110°220-240VACRa>90Opal lens>0.9
3200-360036W50/60Hz
3300-380040W




Size

3CCT Lourves Light
