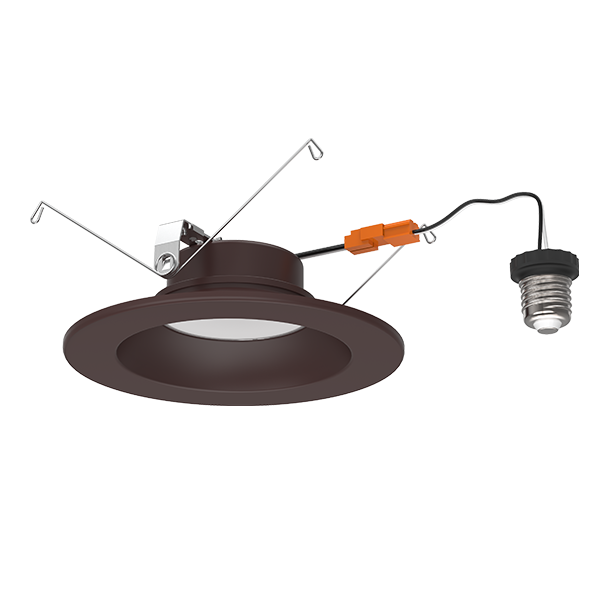

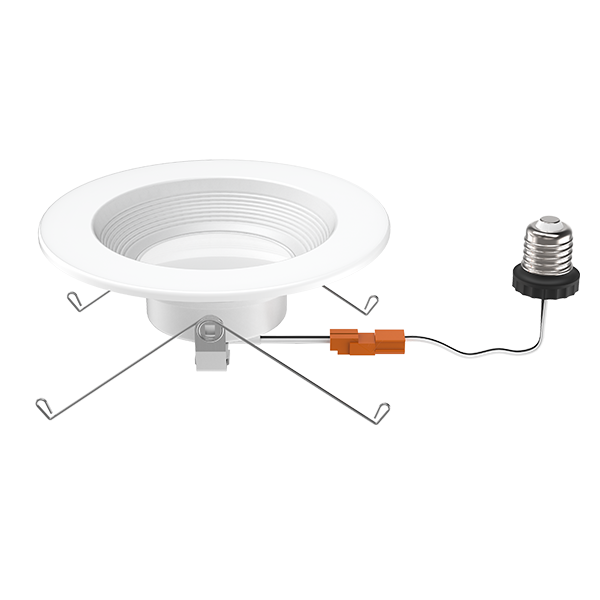

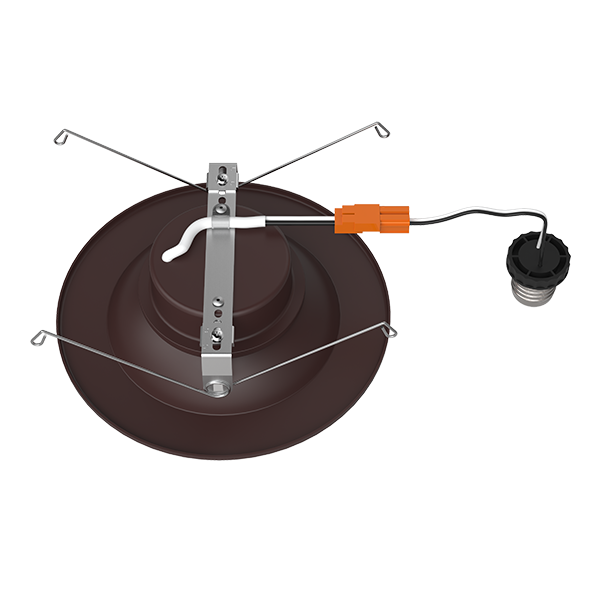

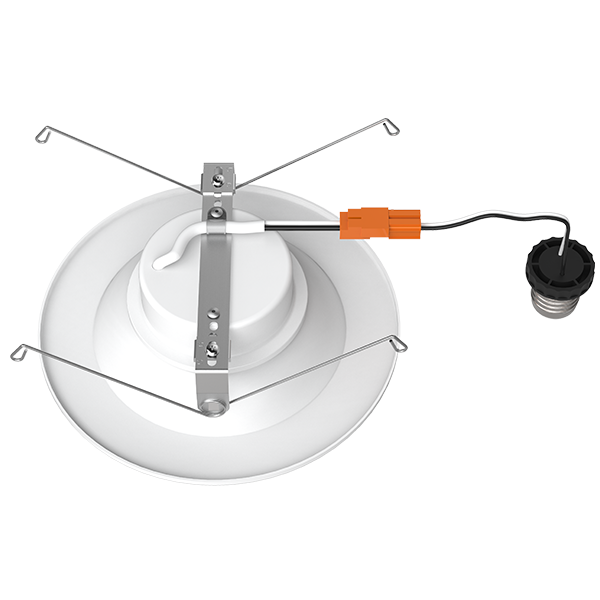

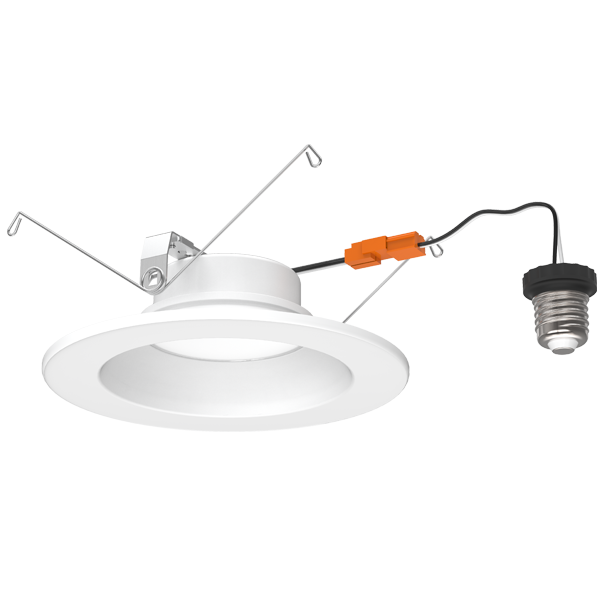

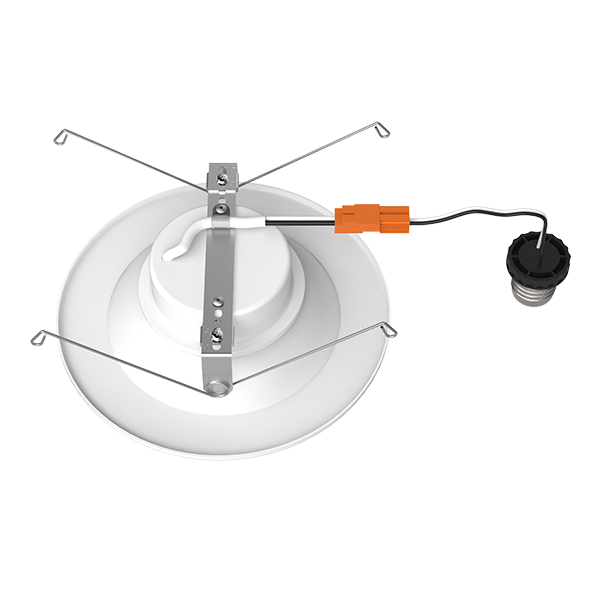

HAT Retrofit Downlight HTL4-6

HAT Retrofit Downlight HTL4-6

HAT 4" and 5-6" UL recessed mount downlight for 120V AC, available triac dimmable and no dimming, HAT 5-6" UL downlight can fit 5" & 6" downlight housings, can replace of most 5" and "recessed downlights, HAT 4" UL downlight can fit 4" downlight housings only, can replace of most 4inch recessed downlights, this product is ideal for use in many residential and light commercial applications with E26 base/ GU24.


1. Adopt spinning aluminum as heat sink;

2. Unique appearance, beautiful design and gorgeous;

3. Excellent thermal management to ensure long lifetime of LED;

4. High efficiency and energy-saving LED dirver;

5. Triac dimmable/non dimming.

1 wetlocation title 24 compliant fc intertek lm80 eneragy star warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTColorLumen(lm)
(±10%)
LED qty.LED typePower(W)Voltage(V)/
frequency
Beam angleCRIPF
HTL4-010-AL-927K-01(B)D2700KWarm white60021SMD283510120V AC
60Hz
85°90>0.8
HTL4-010-AL-930K-01(B)D3000KWarm white610
HTL4-010-AL-940K-01(B)D4000KNeutral white700
HTL4-010-AL-950K-01(B)D5000KWhite700
HTL6-015-AL-927K-01(B)D2700KWarm white100042SMD283515120V AC
60Hz
85°90>0.8
HTL6-015-AL-930K-01(B)D3000KWarm white1020
HTL6-015-AL-940K-01(B)D4000KNeutral white1050
HTL6-015-AL-950K-01(B)D5000KWhite1100

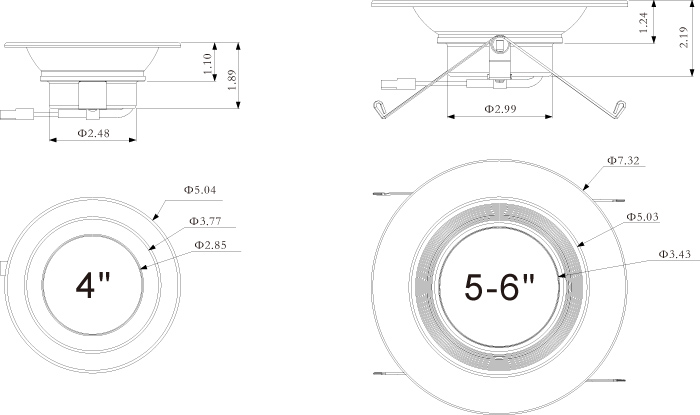

Size
