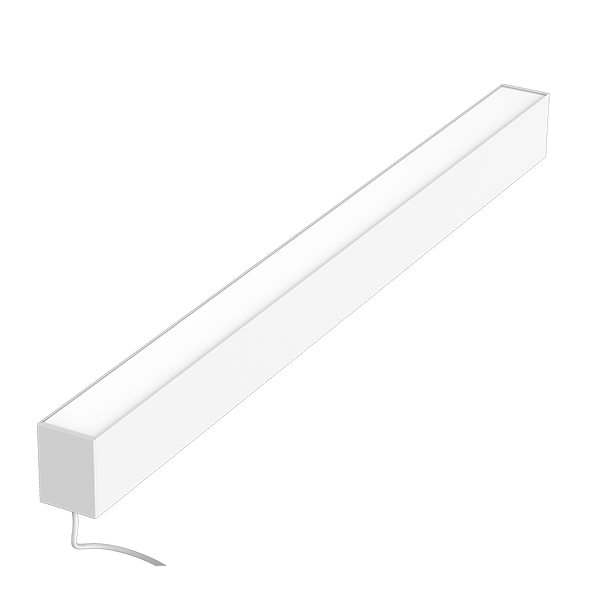

10075 Linear Light in Single Run & Continuous Run

10075 Linear Light in Single Run & Continuous Run

LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopt premium aluminum profile, the different dimension, and size, easy to install, and different customized dimensions are also acceptable, which can meet the installation requirement of different fields and occasions.


  • Simple and modern design, screwless at the end cap.

  • Extrusion aluminum lamp body and PC cover.

  • Smooth and soft lighting effect, no dark dot and shadow at the lighting area.

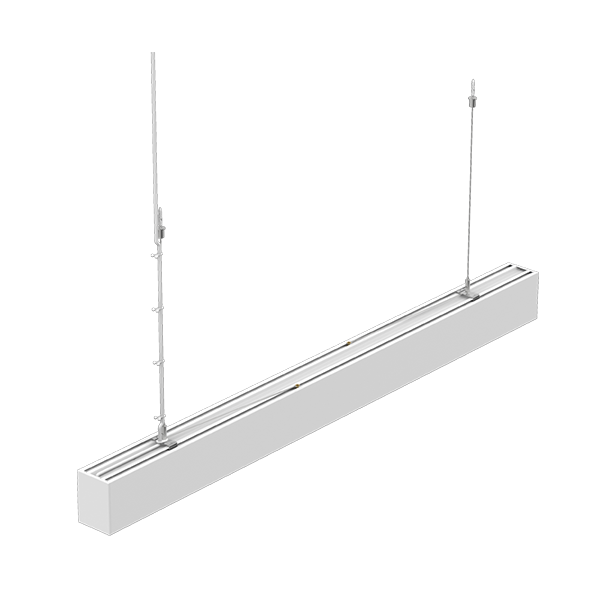

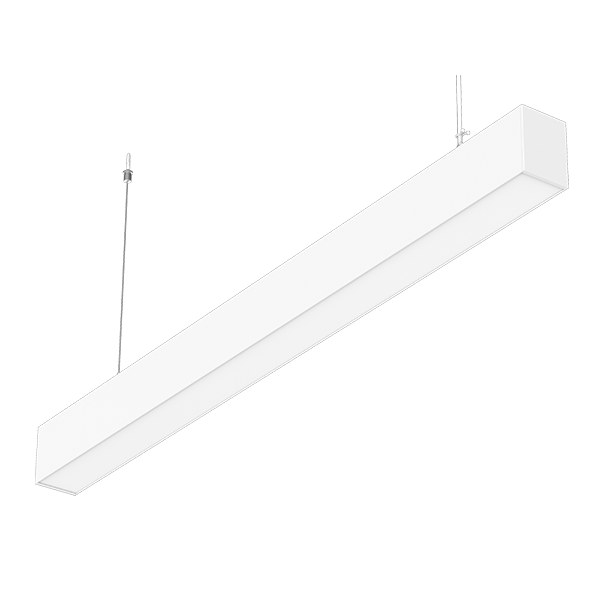

  • Various installation: Suspendent, ceiling and recessed.

  • Three colors of the lamp body, white, black and silver.

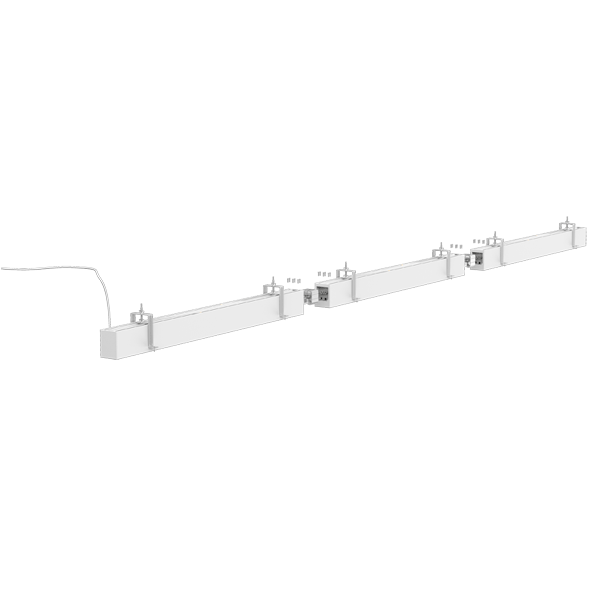

  • Continuous connection at max 550W run.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters of SL10075 Linear Light in Continuous Run

First run

ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length(mm)Voltage (V)
SC-SL10075-020-AW-02W6000-6500K28351732lm20W600

AC 100-240

V50/60Hz

SC-SL10075-020-AW-02NW3800-4200K1812lm20W600
SC-SL10075-020-AW-02WW2800-3200K1661lm20W600
SC-SL10075-040-AW-02W6000-6500K28353630 lm40W1200

AC 100-240

V50/60Hz

SC-SL10075-040-AW-02NW3800-4200K3557 lm40W1200
SC-SL10075-040-AW-02WW2800-3200K3460 lm40W1200
SC-SL10075-050-AW-02W6000-6500K28354295 lm50W1500

AC 100-240

V50/60Hz

SC-SL10075-050-AW-02NW3800-4200K4491 lm50W1500
SC-SL10075-050-AW-02WW2800-3200K4072 lm50W1500


Middle run

ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length(mm)Voltage (V)
SC-SL10075-020-AW-03W6000-6500K28351732lm20W600

AC 100-240

V50/60Hz

SC-SL10075-020-AW-03NW3800-4200K1812lm20W600
SC-SL10075-020-AW-03WW2800-3200K1661lm20W600
SC-SL10075-040-AW-03W6000-6500K28353630 lm40W1200

AC 100-240

V50/60Hz

SC-SL10075-040-AW-03NW3800-4200K3557 lm40W1200
SC-SL10075-040-AW-03WW2800-3200K3460 lm40W1200
SC-SL10075-050-AW-03W6000-6500K28354295 lm50W1500

AC 100-240

V50/60Hz

SC-SL10075-050-AW-03NW3800-4200K4491 lm50W1500
SC-SL10075-050-AW-03WW2800-3200K4072 lm50W1500


Last run

ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length(mm)Voltage (V)
SC-SL10075-020-AW-04W6000-6500K28351732lm20W600

AC 100-240

V50/60Hz

SC-SL10075-020-AW-04NW3800-4200K1812lm20W600
SC-SL10075-020-AW-04WW2800-3200K1661lm20W600
SC-SL10075-040-AW-04W6000-6500K28353630 lm40W1200

AC 100-240

V50/60Hz

SC-SL10075-040-AW-04NW3800-4200K3557 lm40W1200
SC-SL10075-040-AW-04WW2800-3200K3460 lm40W1200
SC-SL10075-050-AW-04W6000-6500K28354295 lm50W1500

AC 100-240

V50/60Hz

SC-SL10075-050-AW-04NW3800-4200K4491 lm50W1500


Parameters of SL10075 Linear Light in Single Run (UL)

ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length(feet)Voltage (V)
SC-SL10075-020-AW-A-01W5000K2835205620W2

AC 100-277

V50/60Hz

SC-SL10075-020-AW-A-01NW4000K207220W2
SC-SL10075-020-AW-A-01WW3000K195520W2
SC-SL10075-040-AW-A-01W5000K2835390540W4

AC 100-277

V50/60Hz

SC-SL10075-040-AW-A-01NW4000K387040W4
SC-SL10075-040-AW-A-01WW3000K366440W4
SC-SL10075-050-AW-A-01W5000K2835526450W5

AC 100-277

V50/60Hz

SC-SL10075-050-AW-A-01NW4000K504350W5
SC-SL10075-050-AW-A-01WW3000K498650W5
SC-SL10075-075-AW-A-01W5000K2835526475W8

AC 100-277

V50/60Hz

SC-SL10075-075-AW-A-01NW4000K504375W8
SC-SL10075-075-AW-A-01WW3000K498675W8


Beam anglePFCRIIPLife spanReflector
110°>0.95>80IP4050000hrsMilky cover


Parameters of SL10075 Linear Light in Single Run


ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length(mm)Voltage (V)
SC-SL10075-020-AW-01W6000-6500K2835173220W600

AC 100-240

V50/60Hz

SC-SL10075-020-AW-01NW3800-4200K181220W600
SC-SL10075-020-AW-01WW2800-3200K166120W600
SC-SL10075-040-AW-01W6000-6500K2835363040W1200

AC 100-240

V50/60Hz

SC-SL10075-040-AW-01NW3800-4200K355740W1200
SC-SL10075-040-AW-01WW2800-3200K346040W1200
SC-SL10075-050-AW-01W6000-6500K2835429550W1500

AC 100-240

V50/60Hz

SC-SL10075-050-AW-01NW3800-4200K449150W1500
SC-SL10075-050-AW-01WW2800-3200K407250W1500


Beam anglePFCRIIPLife spanReflector
110°>0.95>80IP4050000hrsMilky cover

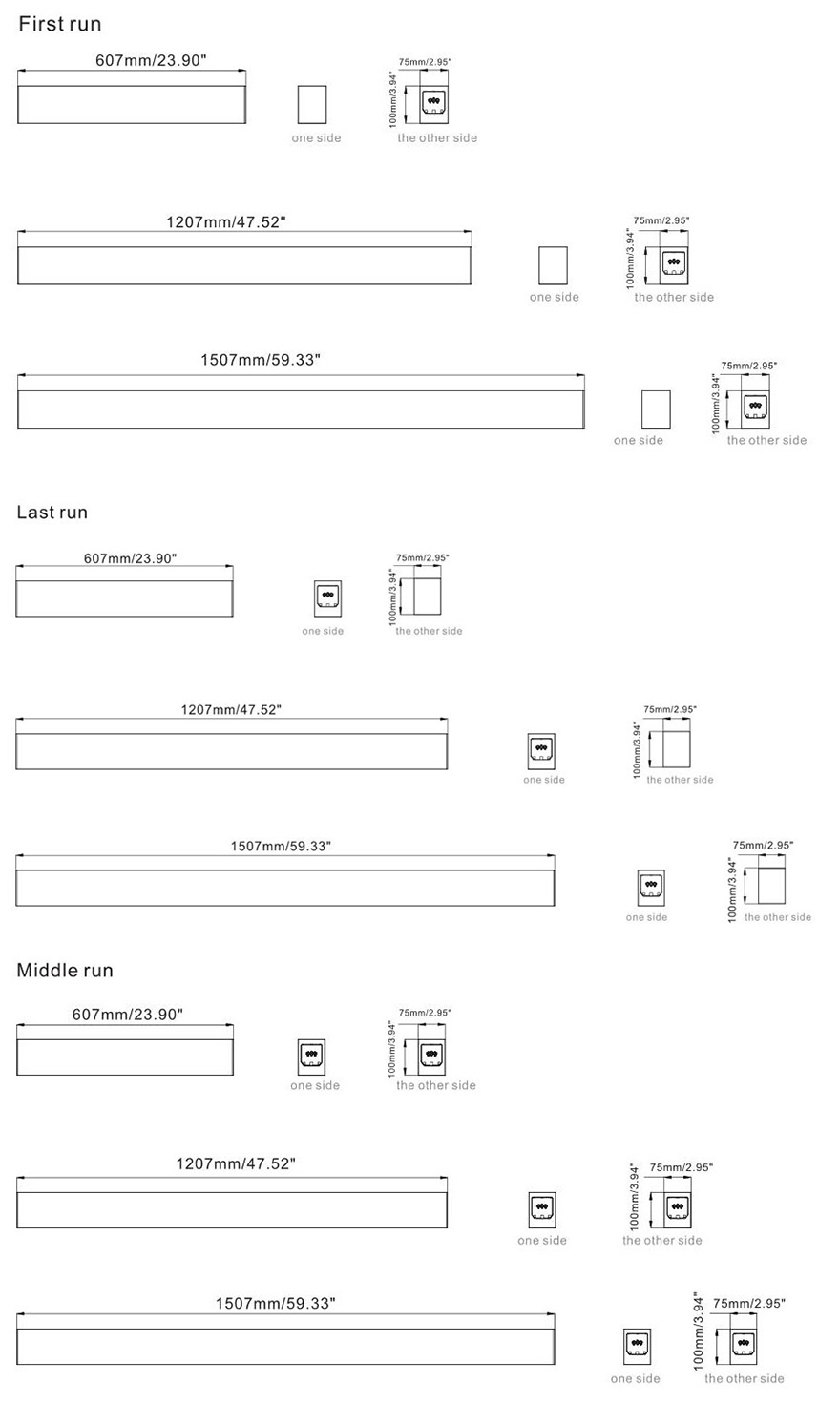

Size

Ul Listed Led Tube Lights
