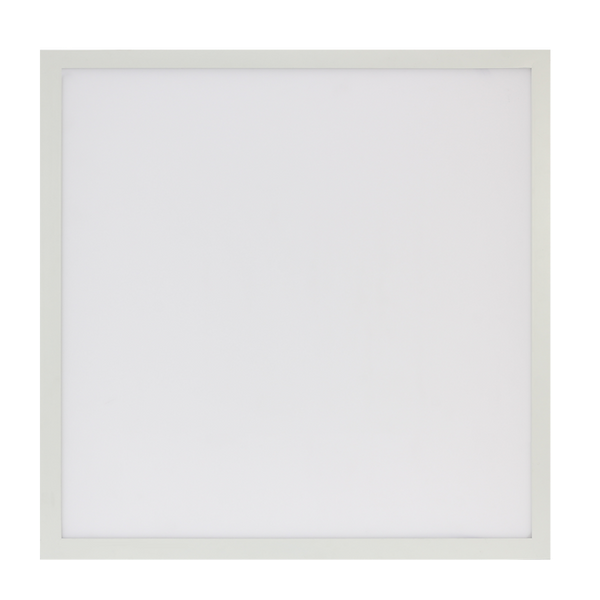

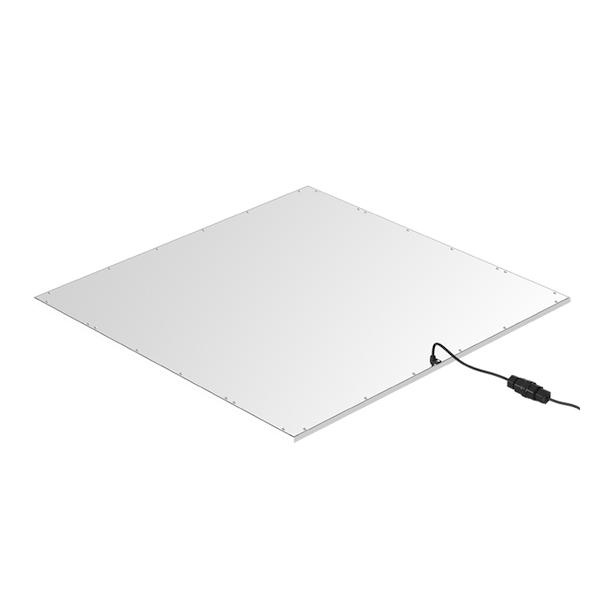

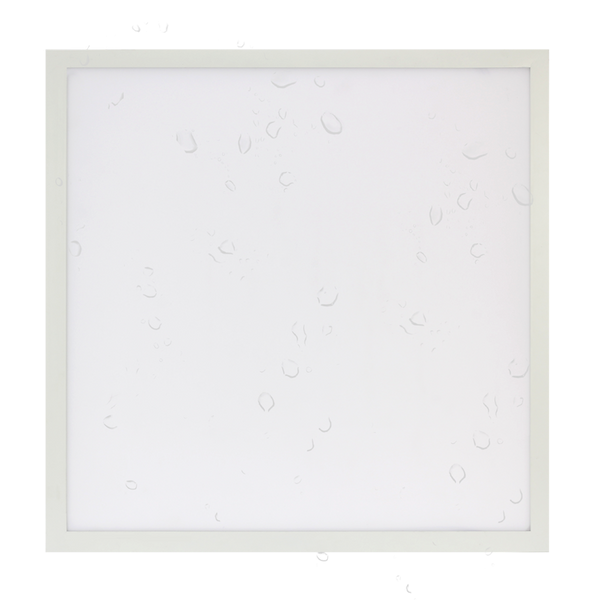

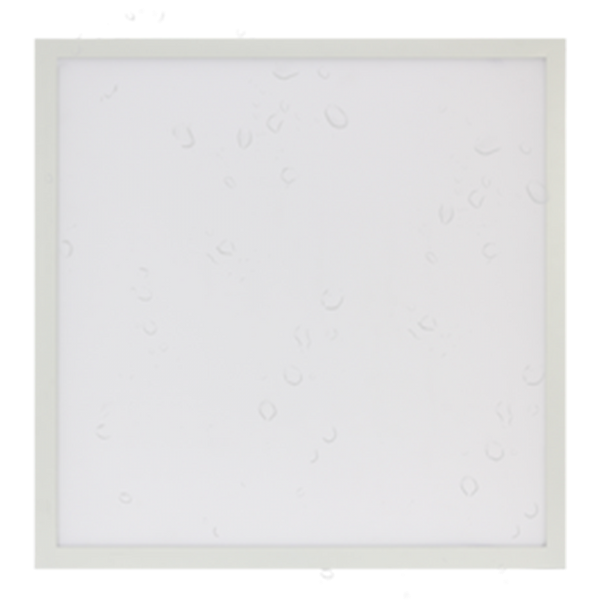

IP65 Waterproof Panel Light

IP65 Waterproof Panel Light

  • Adopt IP65 waterproof power supply and connector, the panel light can reach IP65 waterproof grade.

  • AL6063 aluminum housing,13mm thickness, very stronge stuctrure, not easy to bend during using.

  • Flat frame design, without any gap at 4 corners.

  • Using PMMA light guide plate, up to 90% light transmittance, long life time up to 50,000 hours.

  • Bending back cover design to prevent light leakage from back side.

  • Special waterproof foem installed at the front side between aluminum housing and diffuser, also at the back side between the back cover and LGP, to achieve the waterproof effect.

  • Three installation types: Recessed, surface and suspendent.

cri 80 ce rohs warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm±10%)LED typePower(±10%)Input voltageCRIPF valueProtection grade
IP65 waterproof panel light 18W6000-6500K1656401418W100-240V
50/60Hz
≥80>0.9IP65
IP65 waterproof panel light 18W3800-4200K1656
IP65 waterproof panel light 18W2800-3200K1476
IP65 waterproof panel light 24W6000-6500K2184401424W100-240V
50/60Hz
≥80>0.9IP65
IP65 waterproof panel light 24W3800-4200K2184
IP65 waterproof panel light 24W2800-3200K1968
IP65 waterproof panel light 40W6000-6500K4000401440W100-240V
50/60Hz
≥80>0.9IP65
IP65 waterproof panel light 40W3800-4200K4000
IP65 waterproof panel light 40W2800-3200K3600
IP65 waterproof panel light 40W6000-6500K4000401440W100-240V
50/60Hz
≥80>0.9IP65
IP65 waterproof panel light 40W3800-4200K4000
IP65 waterproof panel light 40W2800-3200K3600


Size
