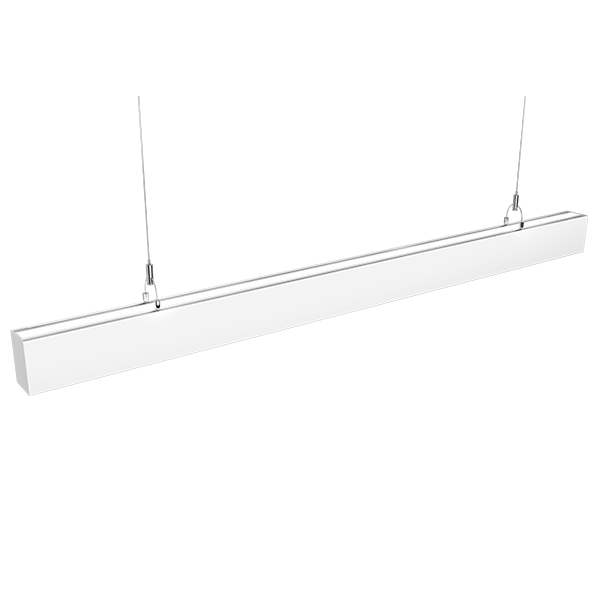

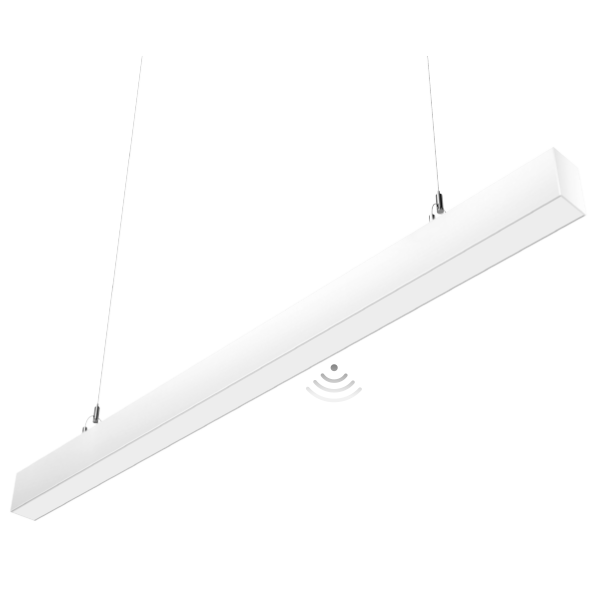

8055 Direct & Indirect Linear Light With Microwave Sensor

8055 Direct & Indirect Linear Light With Microwave Sensor

Linear light with built-in microwave sensor, intelligent sensing and power saving. Simple and beautiful appearance, delicate and uniform light, strong functionality. It can not only play the role of lighting but also beautify the whole space environment.

  • Microwave Sensor.

  • Microwave induction function, intelligently adjusts brightness, energy saving.

  • Remote upload range up to 15 m (50 ft.).

  • Built-in sensor, invisible from the outside, beautiful and generous.

  • Simple and modern design, screwless at end cap.

  • Extrusion aluminum lamp body and PC cover, anti-UV and anti-yellowing.

  • Smooth and soft lighting effect, no dark dot or shadow at the lighting area.

  • The product has two types: direct lighting and direct/indirect lighting.

  • The indirect lighting module is an integrated design with a quick coupling structure.

  • which can be used as accessories for delivery, and customers can choose to install/purchase.

ce rohs warranty 5years cri 80 microwave remote pf 9 free
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

Product nameModelCCT

Lumen(lm)

(±10%)

LED type

Power(W)

(±10%)

Beam angleCRIPFVoltage(V)Remark
1.2M
Direct lighting only
SC-SL8055-040-D-MW-AW-CW6000-6500K4100SMD283540W110°>80>0.9220-240VAC
50/60HZ
No dimming
+milky lens
SC-SL8055-040-D-MW-AW-NW3800-4200K4200
SC-SL8055-040-D-MW-AW-WW2800-3200K4000
SC-SL8055-040-D-MU-AW-CW6000-6500K4100No dimming
+UGR<19 lens
SC-SL8055-040-D-MU-AW-NW3800-4200K4200
SC-SL8055-040-D-MU-AW-WW2800-3200K4000
1.5M
Direct lighting only
SC-SL8055-050-D-MW-AW-CW6000-6500K5100SMD283550W110°>80>0.9220-240VAC
50/60HZ
No dimming
+milky lens
SC-SL8055-050-D-MW-AW-NW3800-4200K5200
SC-SL8055-050-D-MW-AW-WW2800-3200K5000
SC-SL8055-050-D-MU-AW-CW6000-6500K5100No dimming
+UGR<19 lens
SC-SL8055-050-D-MU-AW-NW3800-4200K5200
SC-SL8055-050-D-MU-AW-WW2800-3200K5000
2.4M
Direct lighting only
SC-SL8055-080-D-MW-AW-CW6000-6500K8200SMD283580W110°>80>0.9220-240VAC
50/60HZ
No dimming
+milky lens
SC-SL8055-080-D-MW-AW-NW3800-4200K8400
SC-SL8055-080-D-MW-AW-WW2800-3200K8000
SC-SL8055-080-D-MU-AW-CW6000-6500K8200No dimming
+UGR<19 lens
SC-SL8055-080-D-MU-AW-NW3800-4200K8400
SC-SL8055-080-D-MU-AW-WW2800-3200K8000
1.2M
Indirect lighting module
SC-SL8055-010-U-12-CW6000-6500K1025SMD283510W110°>80>0.9220-240VAC
50/60HZ
No dimming
SC-SL8055-010-U-12-NW3800-4200K1050
SC-SL8055-010-U-12-WW2800-3200K1000
1.5M
Indirect lighting module
SC-SL8055-013-U-12-CW6000-6500K127513W220-240VAC
50/60HZ
No dimming
SC-SL8055-013-U-12-NW3800-4200K1300
SC-SL8055-013-U-12-WW2800-3200K1250

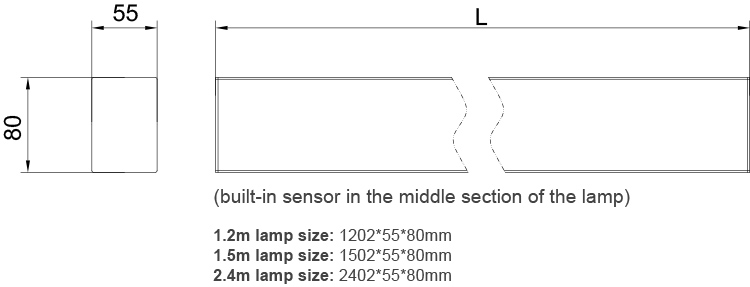

Size

Wall Washer Price
