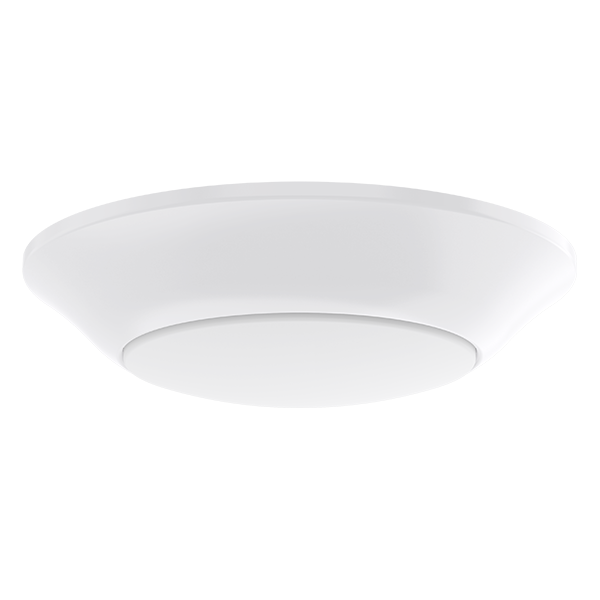

DISC Downlight

DISC Downlight

DISC downlight for 120V AC ,10W/15W,available triac dimmable and no dimming;

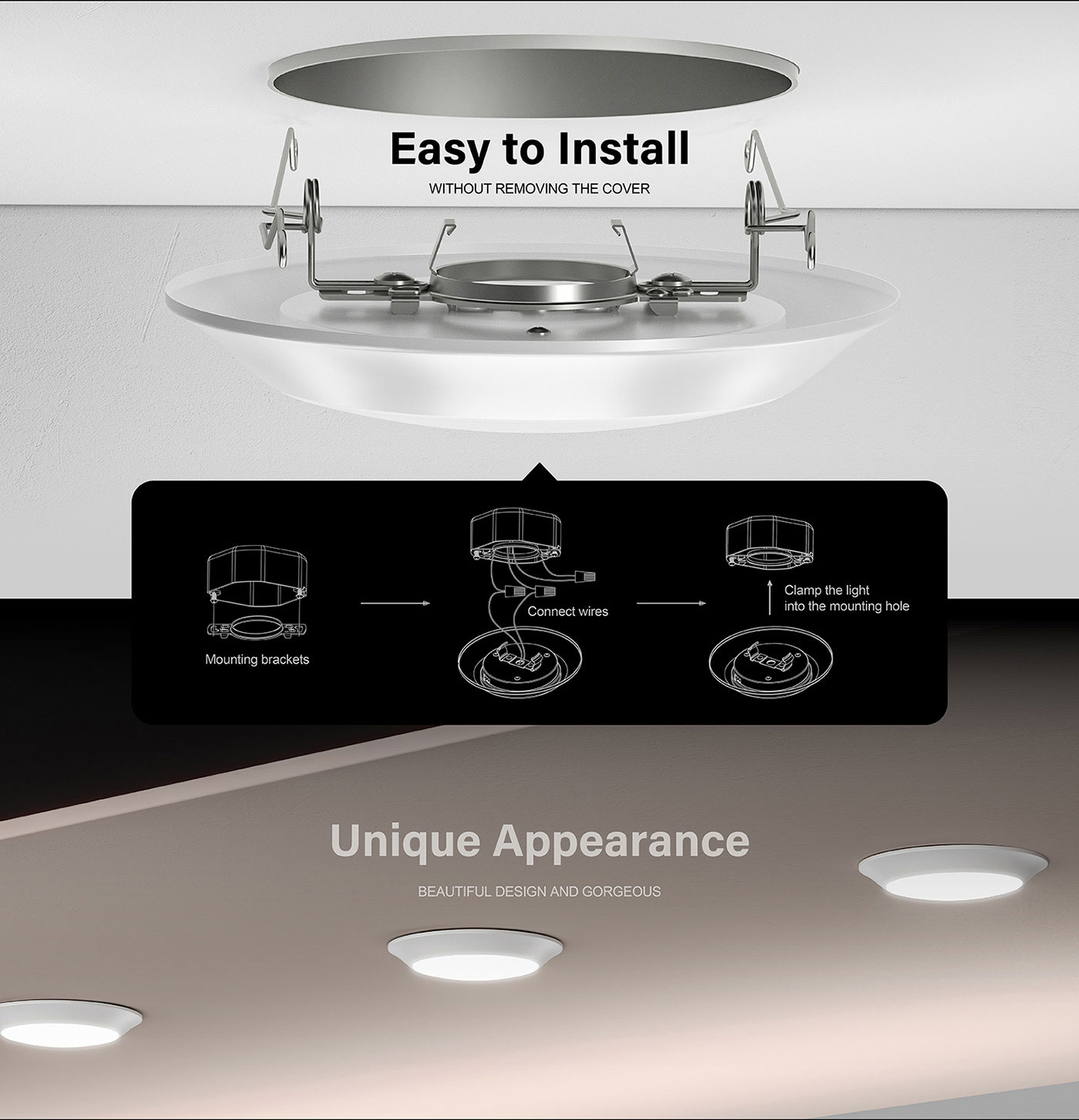

DISC downlight can fit 4" & 6" junction box, can replace of most 4" and 6" surface mount downlights;

DISC downlight can fit 5" & 6" downlight housings, can replace of most 5" and 6" recessed downlights;

this product is ideal for use in many residential and light commercial applications with E26 base.

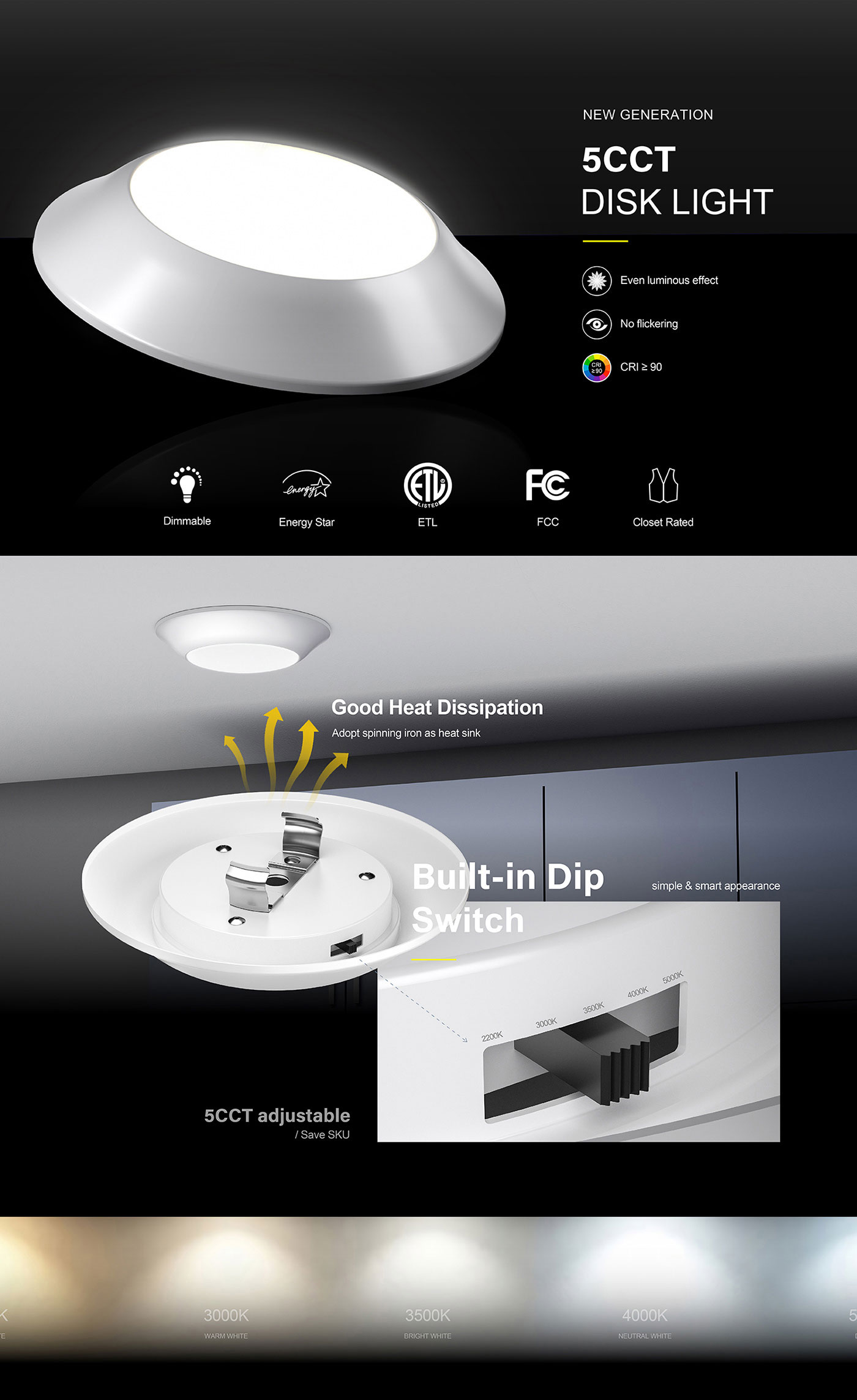

  • Adopt spinning aluminum as heat sink;

  • Unique appearance, beautiful design and gorgeous;

  • Excellent thermal management to ensure long lifetime of LED;

  • High efficiency and energy-saving LED dirver;

  • Triac dimmable and adjustable CCT.



cri 80 lm80 dimmer title 24 compliant eneragy star fc intertek warranty 5years
Inquire
Inquire
Share
Share
Detail
Specifications
Download

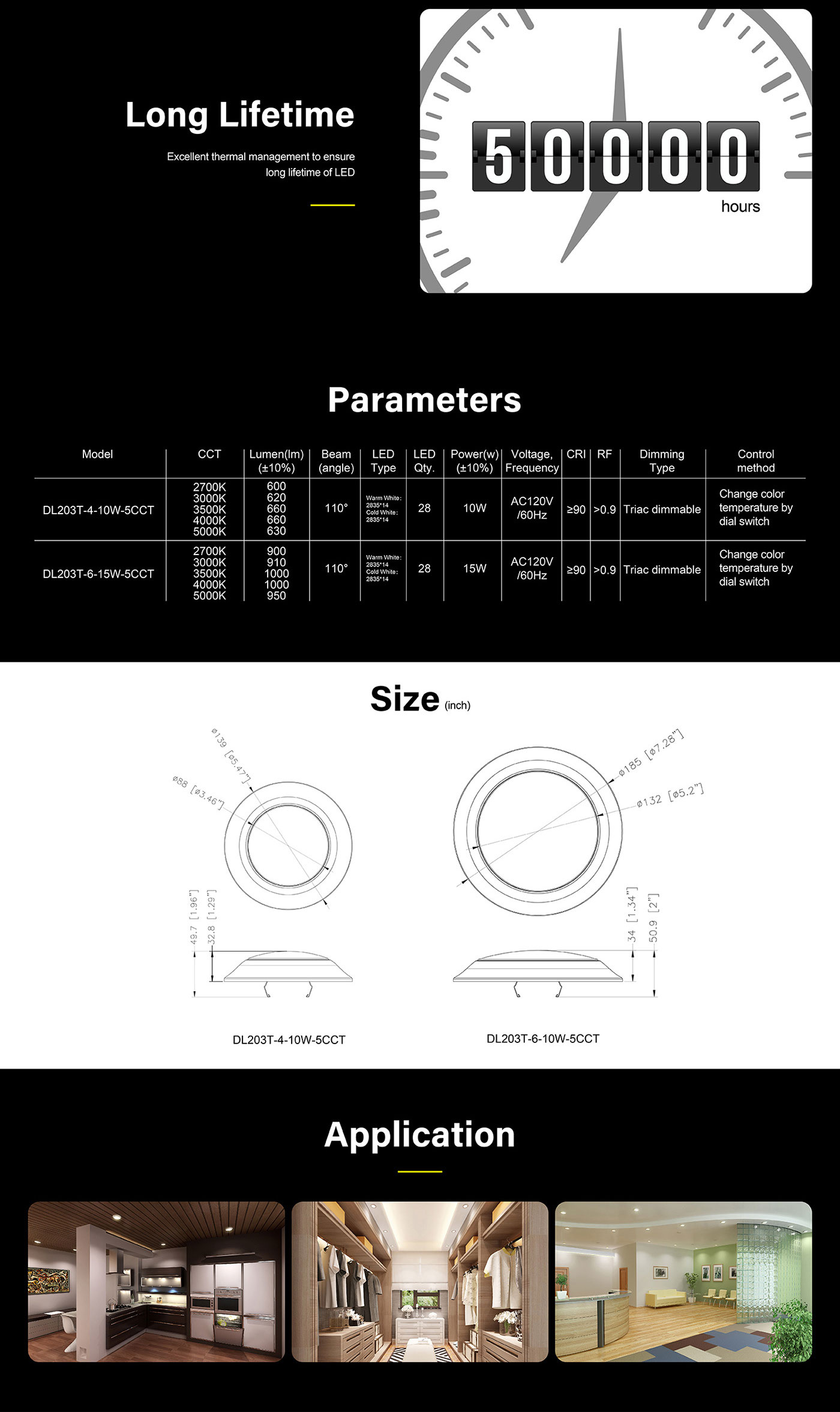

Parameters


ModelCCTLumen(lm±10%)Beam(angle)LED TypeLED Qty.Power(w)
(±10%)
VoltageCRIPF
5CCT series 4inch2700K68011028352810WAC120V/60Hz≥80>0.8
3000K730
3500K780
4000K800
5000K760
2700K60011028352810WAC120V/60Hz≥90>0.8
3000K620
3500K660
4000K660
5000K630
5CCT series 6inch2700K100011028352815WAC120V/60Hz≥80>0.8
3000K1100
3500K1200
4000K1200
5000K1100
2700K90011028352815WAC120V/60Hz≥90>0.8
3000K910
3500K1000
4000K1000
5000K950

Single color
series 4inch

2700K65011028352810WAC120V/60Hz≥80>0.8
3000K700
4000K750
5000K750
2700K61011028352810WAC120V/60Hz≥90>0.8
3000K630
4000K700
5000K700
Single color
series 6inch
2700K100011028352815WAC120V/60Hz≥80>0.8
3000K1100
4000K1100
5000K1100
2700K89011028352815WAC120V/60Hz≥90>0.8
3000K1000
4000K1000
5000K1000

Size
