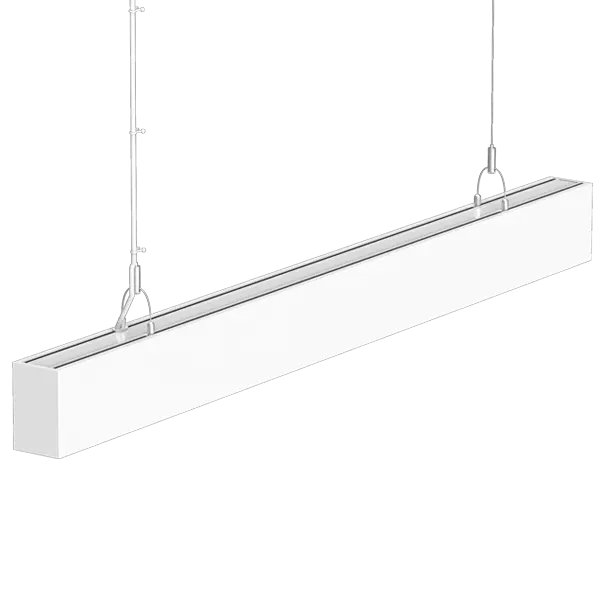

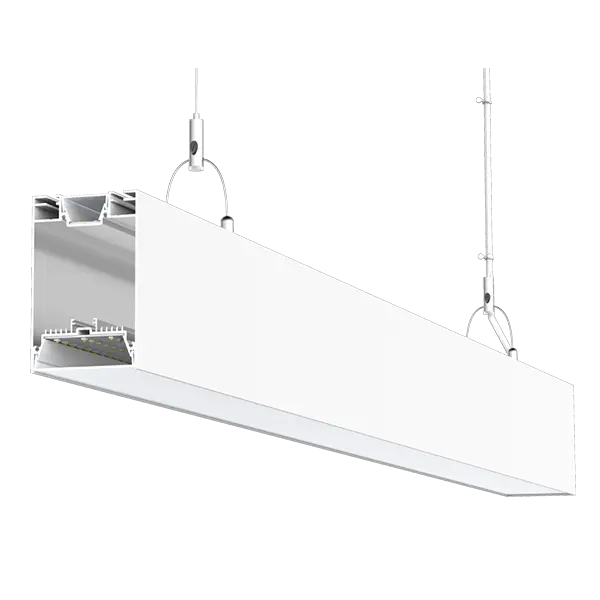

11070 Linear Light in Single Run & Continuous Run

11070 Linear Light in Single Run & Continuous Run

Sl11070 series, with excellent 6063 extrusion aluminum, reliable LEDs and PC diffuser, it has high light efficiency and uniform light distribution. It provides up and down lighting and allows 2 ways of installation: wall mounted and suspendant. It can be widely used as wall lighting for decoration and also the main lighting for office, shops, hospital, school and so on.


  • Simple and modern design, screwless at the end cap.

  • Extrusion aluminum lamp body and PC cover.

  • Smooth and soft lighting effect, no dark dot and shadow at the lighting area.

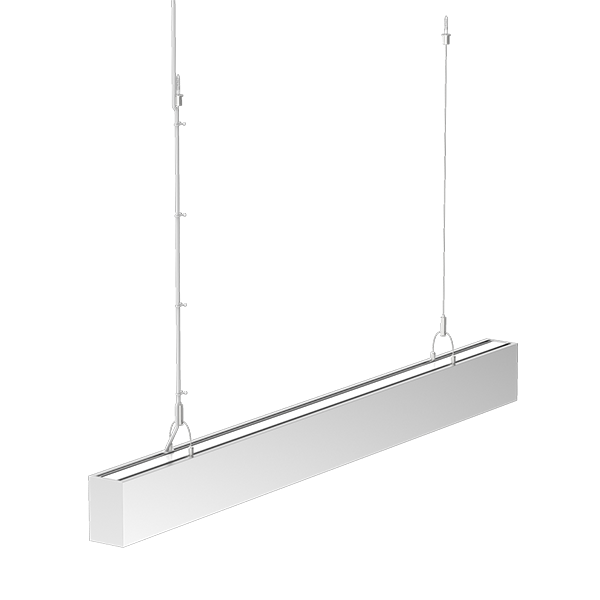

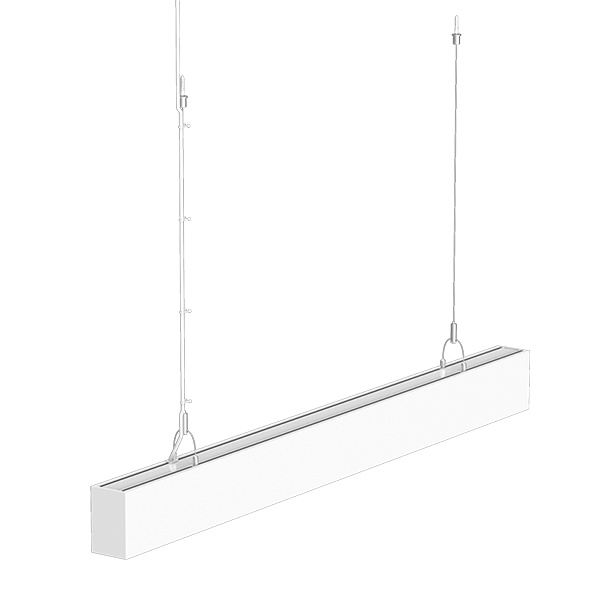

  • Various installation: Suspendent, side installation on the wall surface.

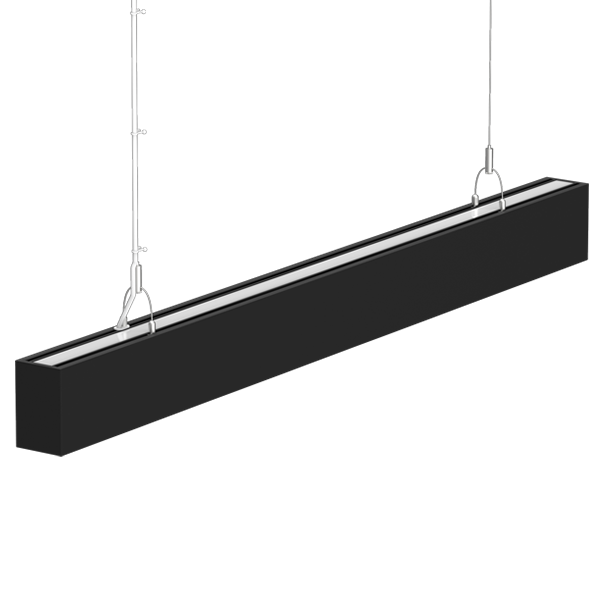

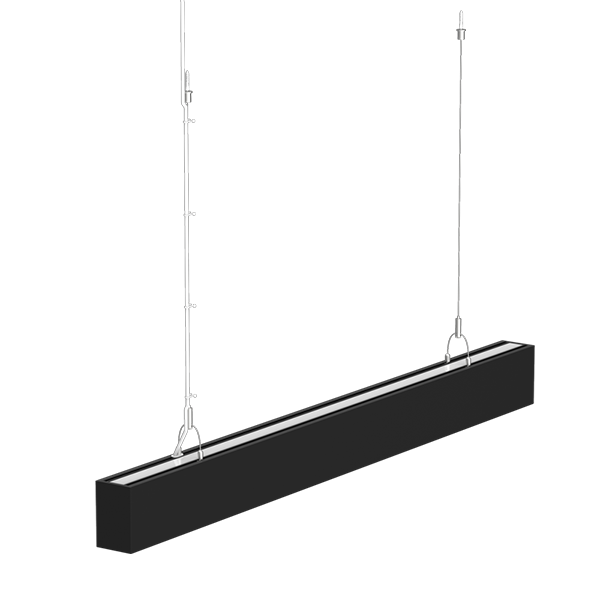

  • Three colors of the lamp body, white, black and silver.

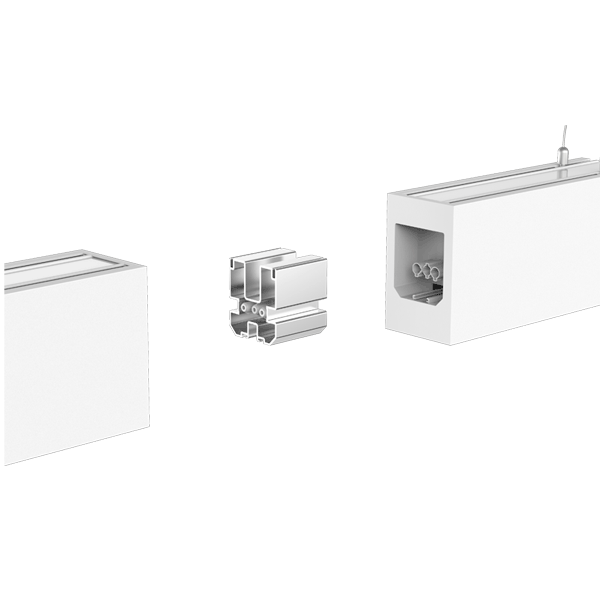

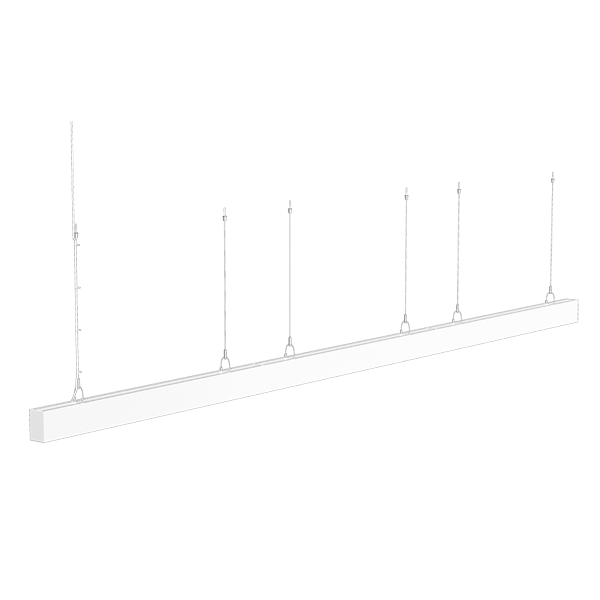

  • Continuous connection at max 550W run.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

First run

ModelCCTLED Type

Lumen(lm)

(±10%)

Power(W)

(±10%)

Length(mm)Voltage (V)
SC-SL11070-028-AW-02W6000-6500K28352658 lm28W600

AC 100-240

V50/60Hz

SC-SL11070-028-AW-02NW3800-4200K2703 lm28W600
SC-SL11070-028-AW-02WW2800-3200K2469 lm28W600
SC-SL11070-056-AW-02W6000-6500K28355246lm56W1200

AC 100-240

V50/60Hz

SC-SL11070-056-AW-02NW3800-4200K5340 lm56W1200
SC-SL11070-056-AW-02WW2800-3200K4953 lm56W1200
SC-SL11070-075-AW-02W6000-6500K28356704 lm75W1500

AC 100-240

V50/60Hz

SC-SL11070-075-AW-02NW3800-4200K6520 lm75W1500


Middle run

ModelCCTLED TypeLumen(lm)
(±10%)
Power(W)
(±10%)
Length(mm)Voltage (V)
SC-SL11070-028-AW-03W6000-6500K28352658 lm28W600

AC 100-240

V50/60Hz

SC-SL11070-028-AW-03NW3800-4200K2703 lm28W600
SC-SL11070-028-AW-03WW2800-3200K2469 lm28W600
SC-SL11070-056-AW-03W6000-6500K28355246lm56W1200

AC 100-240V

50/60Hz

SC-SL11070-056-AW-03NW3800-4200K5340 lm56W1200
SC-SL11070-056-AW-03WW2800-3200K4953 lm56W1200
SC-SL11070-075-AW-03W6000-6500K28356704 lm75W1500

AC 100-240

V50/60Hz

SC-SL11070-075-AW-03NW3800-4200K6520 lm75W1500
SC-SL11070-075-AW-03WW2800-3200K6214 lm75W1500


Last run

ModelCCTLED TypeLumen(lm)
(±10%)
Power(W)
(±10%)
Length(mm)Voltage (V)
SC-SL11070-028-AW-04W6000-6500K28352658 lm28W600

AC 100-240

V50/60Hz

SC-SL11070-028-AW-04NW3800-4200K2703 lm28W600
SC-SL11070-028-AW-04WW2800-3200K2469 lm28W600
SC-SL11070-056-AW-04W6000-6500K28355246lm56W1200

AC 100-240

V50/60Hz

SC-SL11070-056-AW-04NW3800-4200K5340 lm56W1200
SC-SL11070-056-AW-04WW2800-3200K4953 lm56W1200
SC-SL11070-075-AW-04W6000-6500K28356704 lm75W1500

AC 100-240

V50/60Hz

SC-SL11070-075-AW-04NW3800-4200K6520 lm75W1500
SC-SL11070-075-AW-04WW2800-3200K6214 lm75W1500


ModelCCTLED Type

Lumen(lm)

(±10%)

Power(W)

(±10%)

Length(mm)Voltage (V)
SC-SL11070-050-AW-A02-01W5000K2835464550W1200

AC 100-277

V50/60Hz

SC-SL11070-050-AW-A02-01NW4000K440050W1200
SC-SL11070-050-AW-A02-01WW3000K425050W1200
SC-SL11070-075-AW-A02-01W5000K2835697575W2400

AC 100-277

V50/60Hz

SC-SL11070-075-AW-A02-01NW4000K659475W2400
SC-SL11070-075-AW-A02-01WW3000K630075W2400


ModelCCTLED Type

Lumen(lm)

(±10%)

Power(W)

(±10%)

Length(mm)Voltage (V)
SC-SL11070-028-AW-01W6000-6500K28351656lm28W600

AC 100-240

V50/60Hz

SC-SL11070-028-AW-01NW3800-4200K1620lm28W600
SC-SL11070-028-AW-01WW2800-3200K1530lm28W600
SC-SL11070-056-AW-01W6000-6500K28353312lm56W1200

AC 100-240

V50/60Hz

SC-SL11070-056-AW-01NW3800-4200K3240lm56W1200
SC-SL11070-056-AW-01WW2800-3200K3060lm56W1200
SC-SL11070-075-AW-01W6000-6500K28354140lm75W1500

AC 100-240

V50/60Hz

SC-SL11070-075-AW-01NW3800-4200K4050lm75W1500
SC-SL11070-075--AW-01WW2800-3200K3825lm75W1500


Beam anglePFCRIIPLife spanReflector
110°>0.95>80IP4050000hrsMilky cover

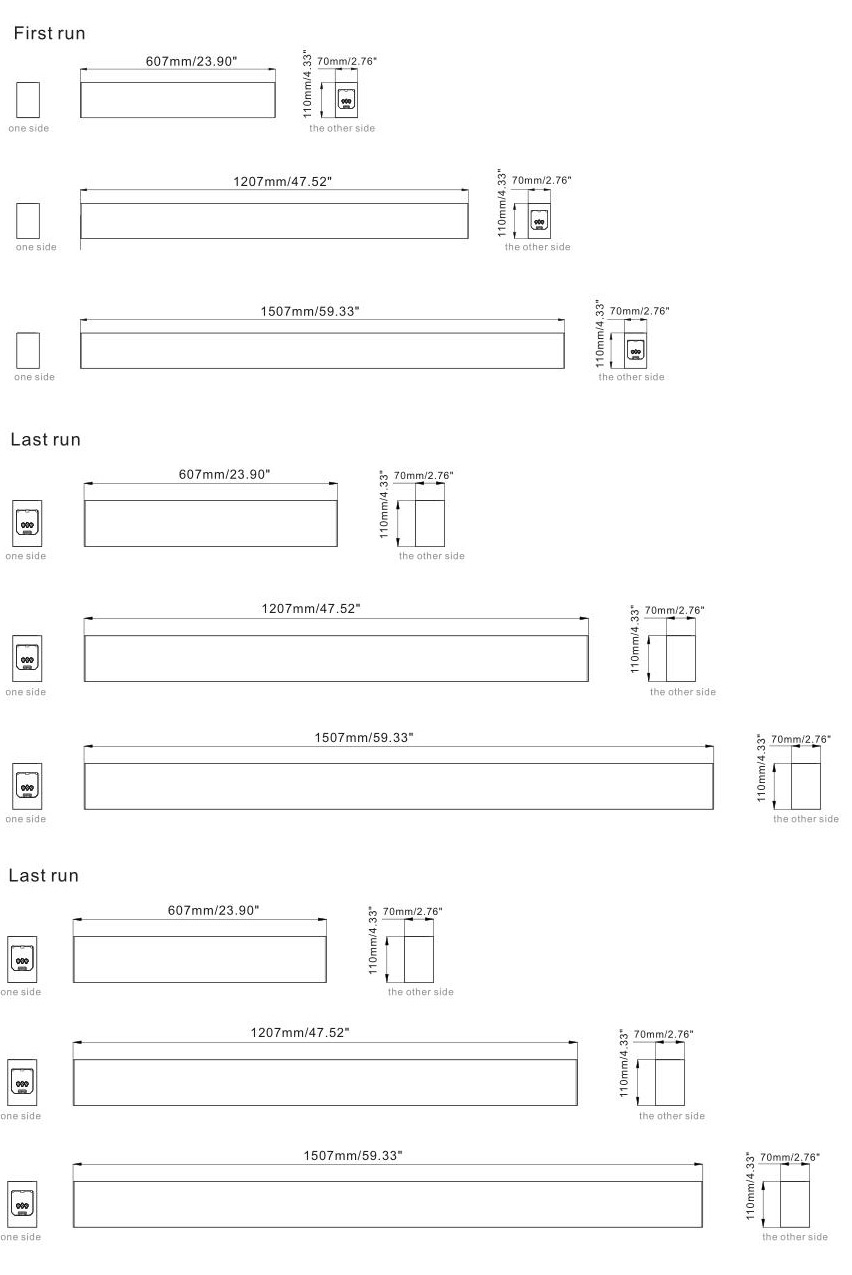

Size

U Shaped Fluorescent Led
