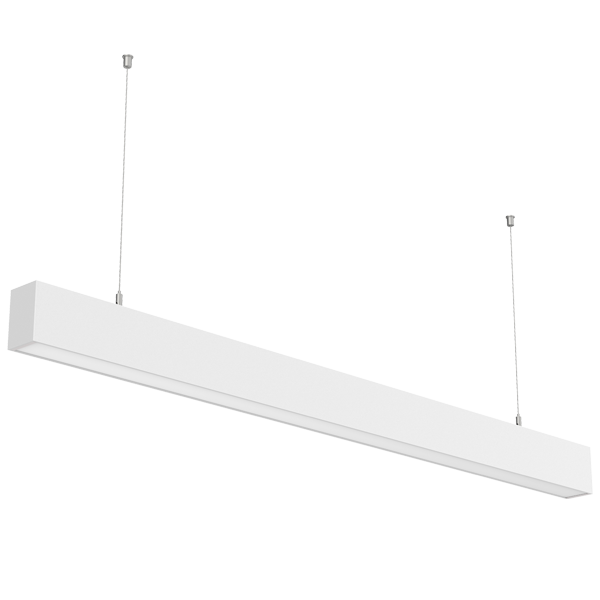

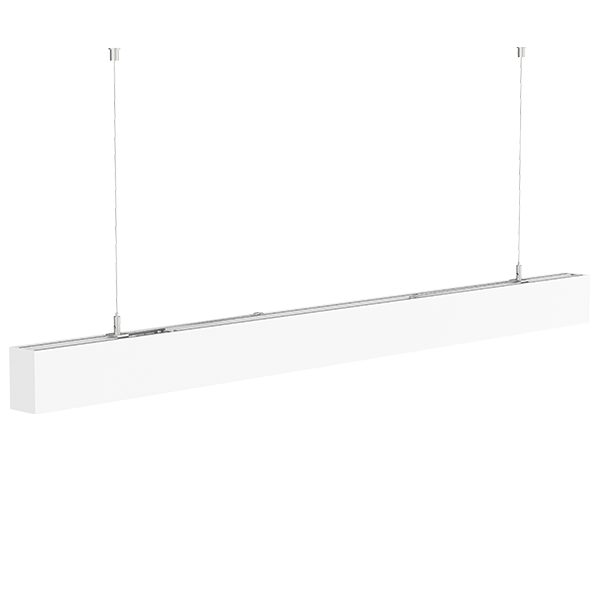

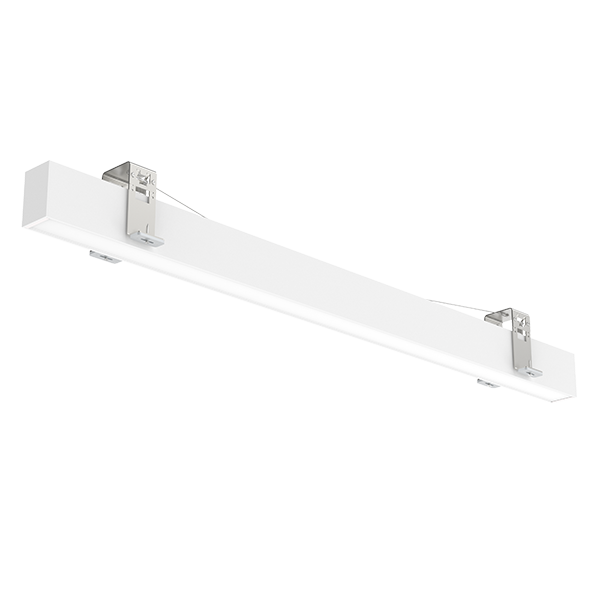

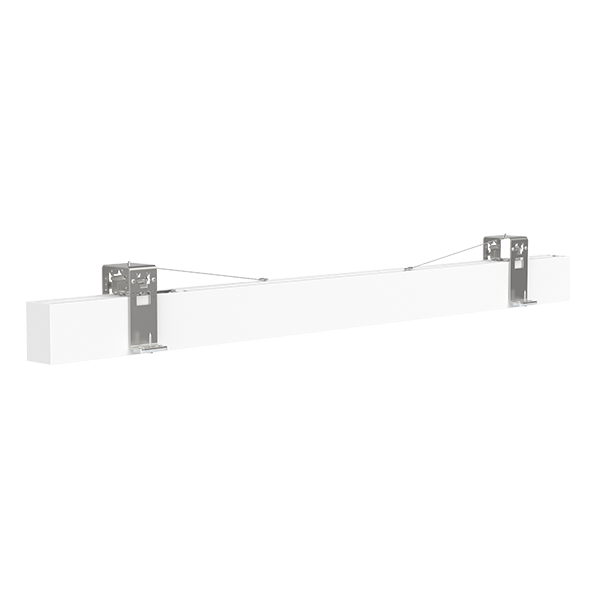

8456 Linear Light

8456 Linear Light

SL8456 linear light is combination of separated structures, it is convenient to dismantle and maintain because of its replaceable power supply and lighting emitting parts(PCB+LEDs), simple shape and random jointing can be realized.  it is can be widely used in home, school, shopping mall, hotel and other indoor public places, and it is mainly made of aluminum alloy, PC.

  • The product can operate in the single run or continuous runs seamless, when the input voltage is AC220V, 110m can be connected.



ul ce rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length
(feet)
Voltage (V)Dimming
optional
SC-SL8456-040-AW-A02-03CW5000K2835432040W4

AC 100-277V

50/60Hz

0-10V
Dimming
SC-SL88456-040-AW-A02-03NW4000K428040W4
SC-SL8456-040-AW-A02-03WW3000K412040W4
SC-SL8456-075-AW-A02-03CW5000K2835787575W8

AC 100-277

50/60Hz

0-10V
Dimming
SC-SL8456-075-AW-A02-03NW4000K772575W8
SC-SL8456-075-AW-A02-03WW3000K765075W8


ModelCCTLED TypeLumen(lm) (±10%)Power(W) (±10%)Length
(mm)
Voltage (V)Dimming
optional
SC-SL8456-040-AW-CW6000-6500K2835378040W1200

AC 100-240

50/60Hz

non-Dimming
SC-SL8456-040-AW-NW3800-4200K4030
SC-SL8456-040-AW-WW2800-3200K3650
SC-SL8456-050-AW-CW6000-6500K2835464050W1500

AC 100-240

V50/60Hz

non-Dimming
SC-SL8456-050-AW-NW3800-4200K4600
SC-SL8456-050-AW-WW2800-3200K4090
SC-SL8456-075-AW-CW6000-6500K2835464075W2400

AC 100-240

V50/60Hz

non-Dimming
SC-SL8456-075-AW-NW3800-4200K4600
SC-SL8456-075-AW-WW2800-3200K4090

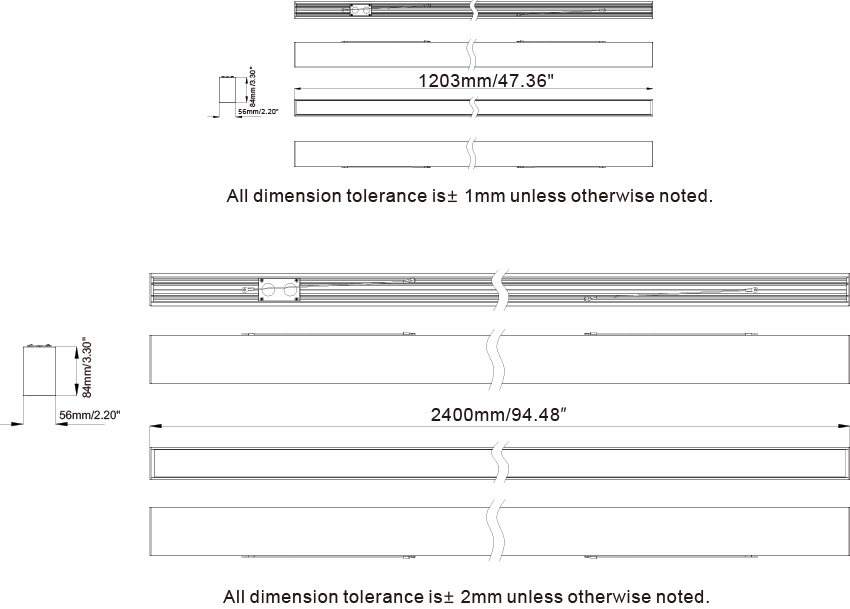

Size

Wall Mounted Track Lighting
