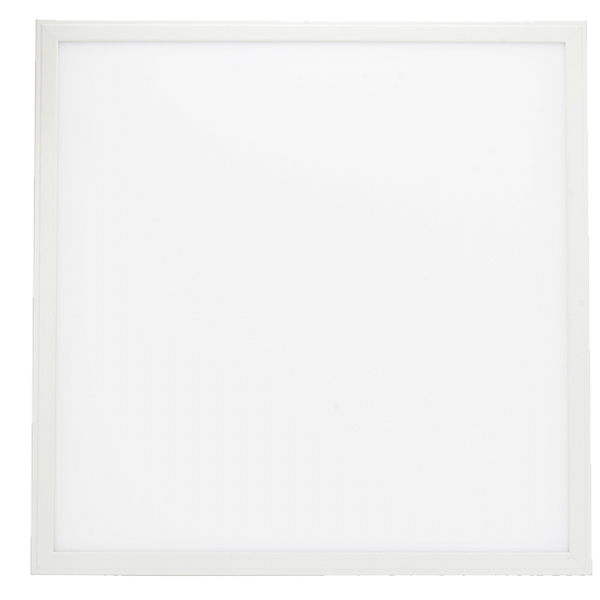

Color Adjustable Flat Panel Light

Color Adjustable Flat Panel Light

LED flat panel light is the latest new generation of edge-lit lighting fixture, it has the uniform and smooth lighting effect and elegant appearance design. And each fixture is 3 SKUS in 1 unit design, so the users can easily set the wattage and color temperature that they want.


1. Color temperature setting: 3000K, 4000K, 6000K.

One piece wattage adjustable and color tunable panel light=15 pcs regular panel light now, it can save the shipping time, warehouse space and your stock cost.


2. Visual Uniformity.

Using high quality LGP with silk printing technology, the light uniformity rate is greater than 85%. No yellow edge and dark area, prefect lighting effect.


3. High efficiency up to 80-90LM/W, Premium version for optional.

High transmission LGP (more than 90%), high lumen LED efficacy paired with high power factor drivers.


4. Flicker free LED drive and premium version for optional.

Constant current design, PF>0.9, THD<15%.short circuit, open circuit protection, and 1KV surge protection; 0-10V, DALI, Triac drive also can work with this panel light.


5. Three installation options.

Each panel with standard clips for recessed and suspending installation. Optional surface mounted kit available.

triac dimmers 0 10v dimmers dali dimmers 110 pf 9 220 240v ac cri 80 warranty 3years ce
Inquire
Inquire
Share
Share
Specifications
Download

Parameters


ModelCCTLight efficiencySize(feet)PowerLED typeVoltage(V)CRIColor tunable
selectable way
SC-PSCAWRE6060-R40W-01
SC-PSCAWRE3012-R40W-01
SC-PSCAWRE6012-R40W-01
3500K-4000K-6000K80-90LM/W595*595
295*1195
595*1195
40W
40W
50W
4014200-240VAC>80DIP switch
SC-PSCAWRE6060-R40W-02
SC-PSCAWRE3012-R40W-02
SC-PSCAWRE6012-R40W-02
3500K-4000K-6000K80-90LM/W595*595
295*1195
595*1195
40W
40W
50W
4014200-240VAC>80Wall switch

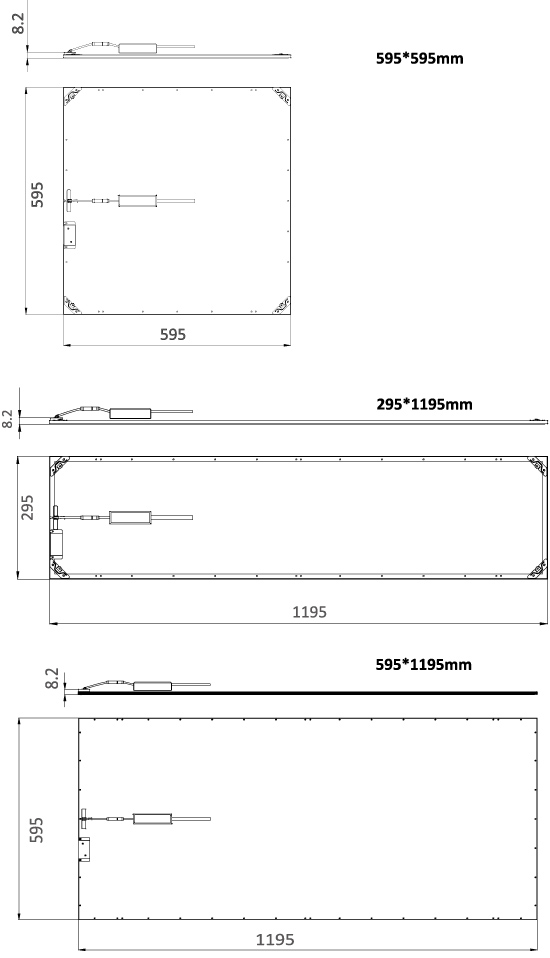

Size
