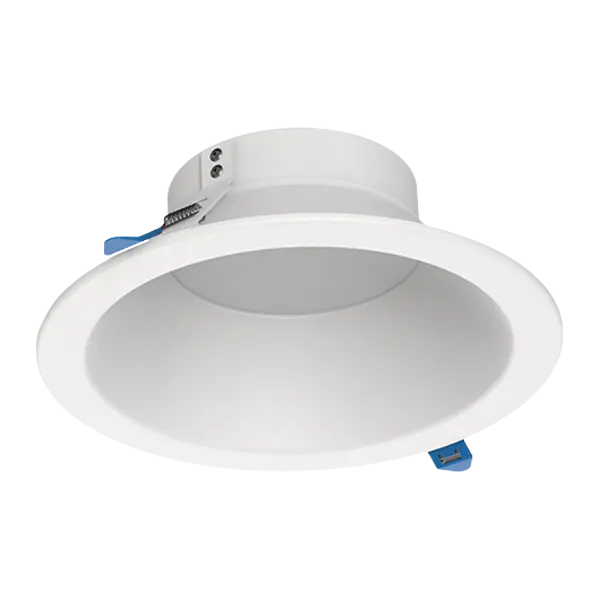

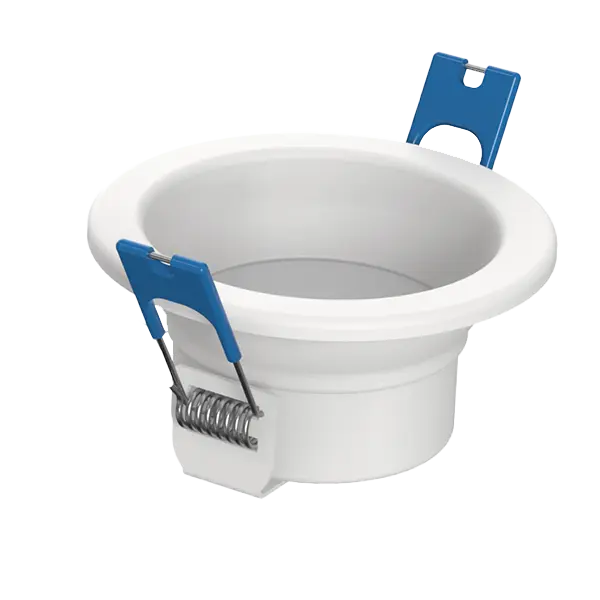

5CCT adjustable recessed downlight DL211 series

5CCT adjustable recessed downlight DL211 series

This downlight adopts remote J-box dimming compatibility and quick easy to install into existing recessed frames does not require a separate housing, and the recess fixture mounts directly into the ceiling.


  • Achieve selection of five types of color temperature through five- section dip switches.

  • Long service life: the adoption of LEDs ensures that the service life exceeds 50000 hours.

  • Compatible with most dimmers of North American to obtain good dimming effect.

  • Tpye-IC rated and suitable for wet location applications.


Inquire
Inquire
Share
Share
Detail
Specifications
Download




Coming soon, please wait...





Parameters

ModelCCTLumen(lm±10%)Beam(angle)LED TypeLED Qty.Power(w)
       (±10%)
VoltageCRIPF
DL211 series 3inch2700K40090283566WAC100-277V
       50        /60Hz
≥980>0.8
3000K450
3500K500
4000K500
5000K450
DL211 series 4inch2700K8009528351610WAC100-277V
       50        /60Hz
≥90>0.8
3000K850
3500K900
4000K900
5000K850

DL211series 6inch

2700K11509528352015WAC100-277V
       50        /60Hz
≥90>0.8
3000K1200
3500K1300
4000K1300
5000K1200
DL211series 8inch2700K18009528352825WAC100-277V
       50        /60Hz
≥90>0.8
3000K1950
3500K2100
4000K2100
5000K1950

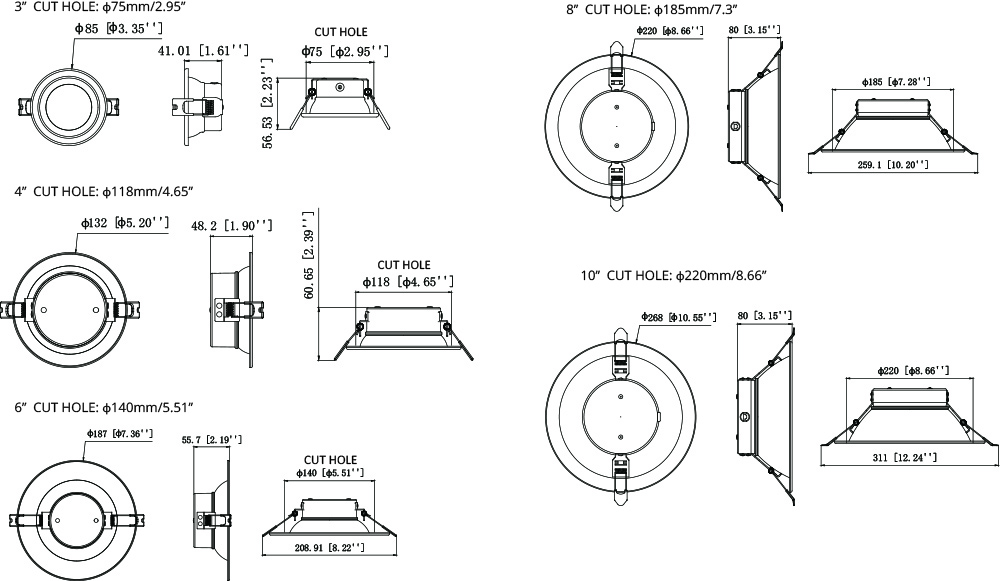

Size
