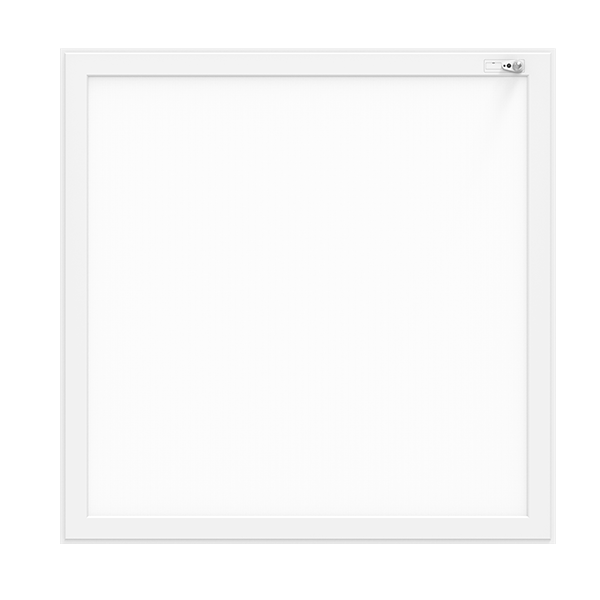

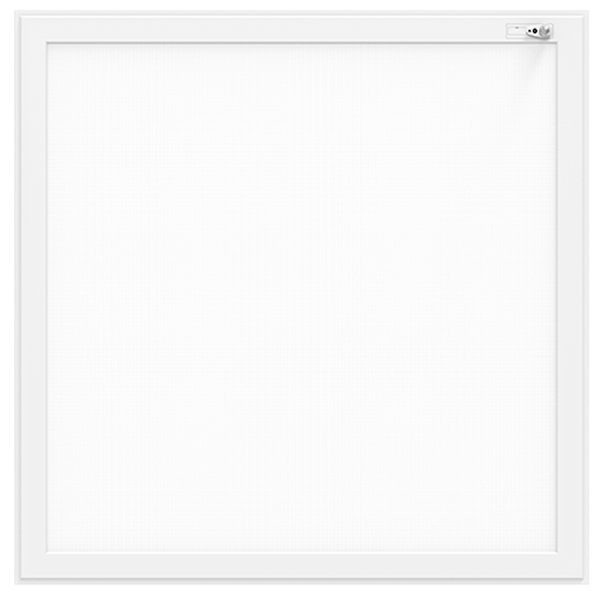

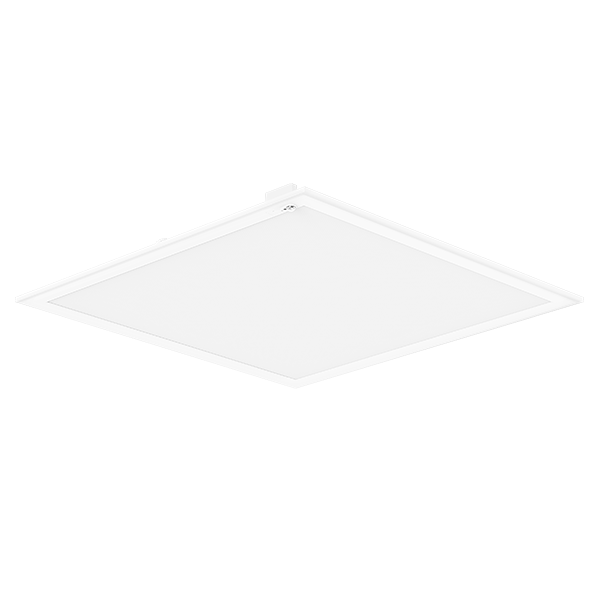

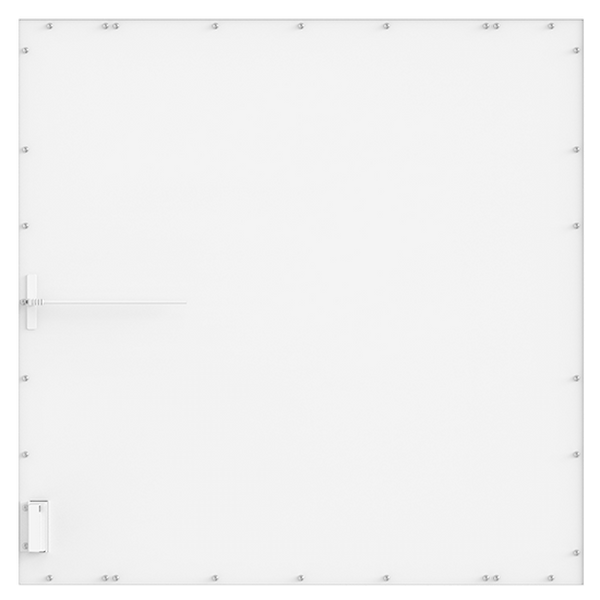

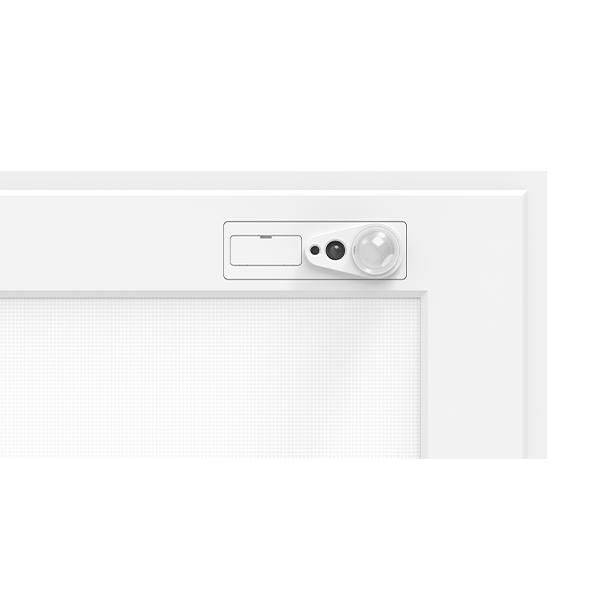

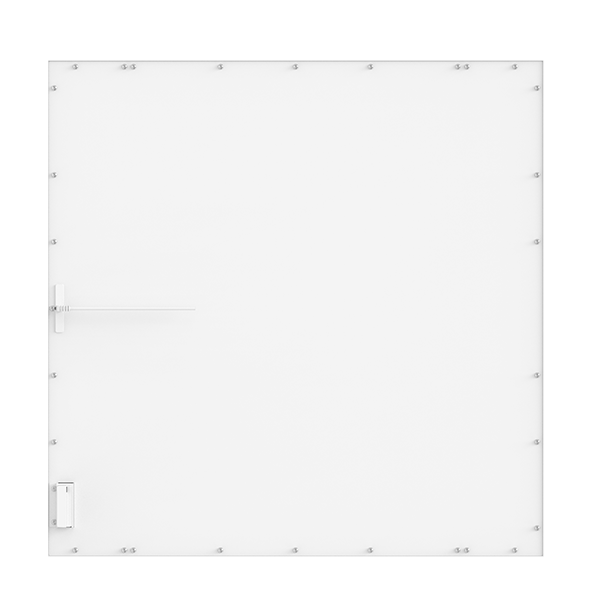

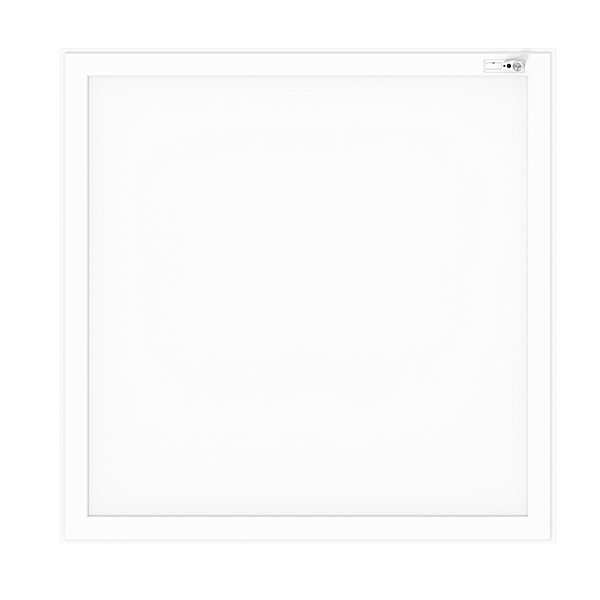

PIR Sensor Panel Light

PIR Sensor Panel Light

LED flat panel light is the latest new generation of backlit lighting fixture, it has the uniform and smooth lighting effect and elegant appearance design. And each fixture is 9 SKUS in 1 unit design, so the users can easily set the wattage and color temperature that they want.

  • Flicker free LED driver.

  • Constant current design, PF>0.9, THD<15%.

  • 3 in 1 dimming mode: 0-10V, PWM, Rx.

  • Smoothly dimming 0-100%, can dim to off.

  • Short circuit, open circuit protection, and 1KV surge protect.

ce rohs warranty 5years cri 80 0 10v dimmers pir remote pf
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumensPowerBeam angleLED typeVoltage(V)CRIType
SC-PSC24CE6060-S40W
SC-PSC24NE6060-S40W
SC-PSC24WE6060-S40W
SC-PSC24CE3012-S40W
SC-PSC24NE3012-S40W
SC-PSC24WE3012-S40W
6000-6500K
3800-4200K
2800-3200K
6000-6500K
3800-4200K
2800-3200K
4000LM
4000LM
3600LM
4000LM
4000LM
3600LM
40W110°4014220-240VAC
50/60HZ
>80Non sensor
SC-PSC24CE6012-S50W
SC-PSC24NE6012-S50W
SC-PSC24WE6012-S50W
6000-6500K
3800-4200K
2800-3200K
5000LM
5000LM
4500LM
50W110°4014220-240VAC
50/60HZ
>80Non sensor
SC-PSC24CE6060-S40W-S
SC-PSC24NE6060-S40W-S
SC-PSC24WE6060-S40W-S
SC-PSC24CE3012-S40W-S
SC-PSC24NE3012-S40W-S
SC-PSC24WE3012-S40W-S
6000-6500K
3800-4200K
2800-3200K
6000-6500K
3800-4200K
2800-3200K
4000LM
4000LM
3600LM
4000LM
4000LM
3600LM
40W110°4014220-240VAC
50/60HZ
>80Sensor
SC-PSC24CE6012-S50W-S
SC-PSC24NE6012-S50W-S
SC-PSC24WE6012-S50W-S
6000-6500K
3800-4200K
2800-3200K
5000LM
5000LM
4500LM
50W110°4014220-240VAC
50/60HZ
>80Sensor

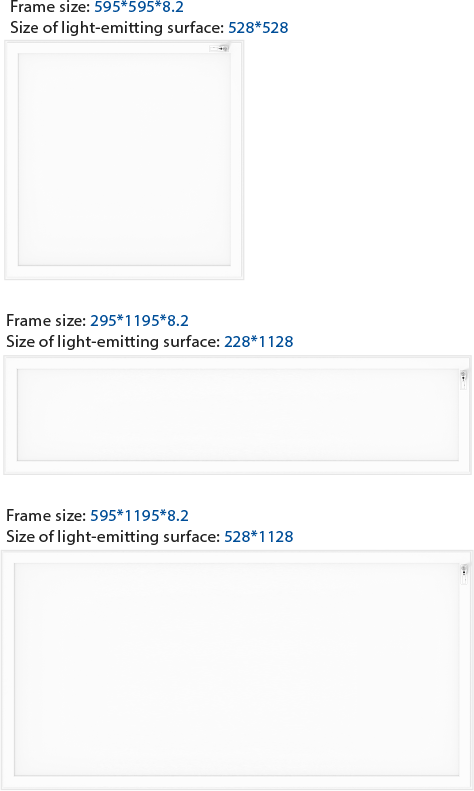

Size

Rigid Strip
