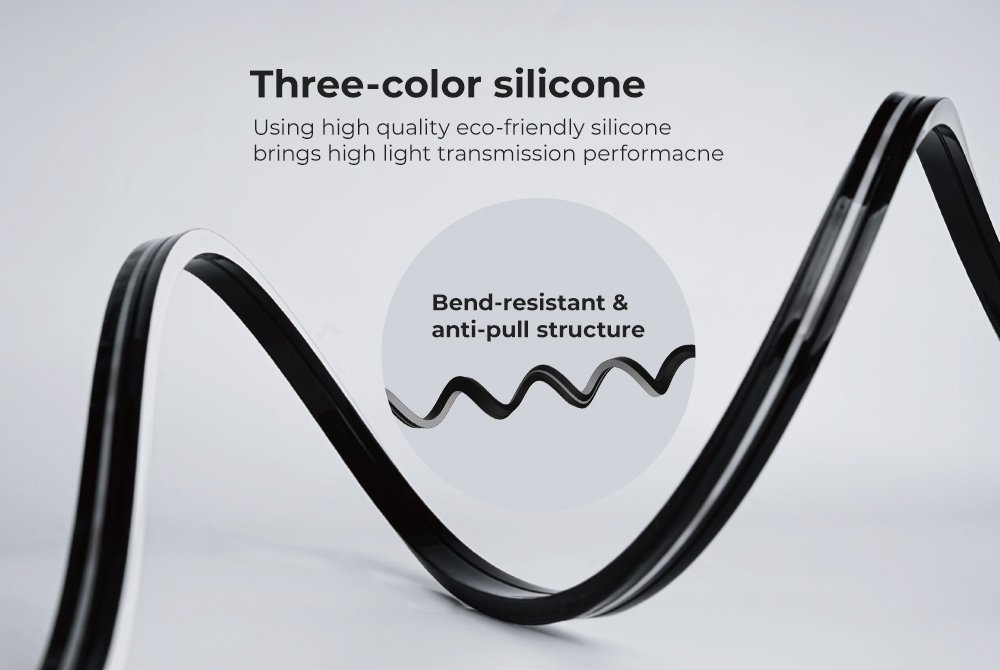

Three-color silicone,using high quality eco-friendly silicone brings
high light transmission performacne.
Bend-resistant & anti-pull structure.

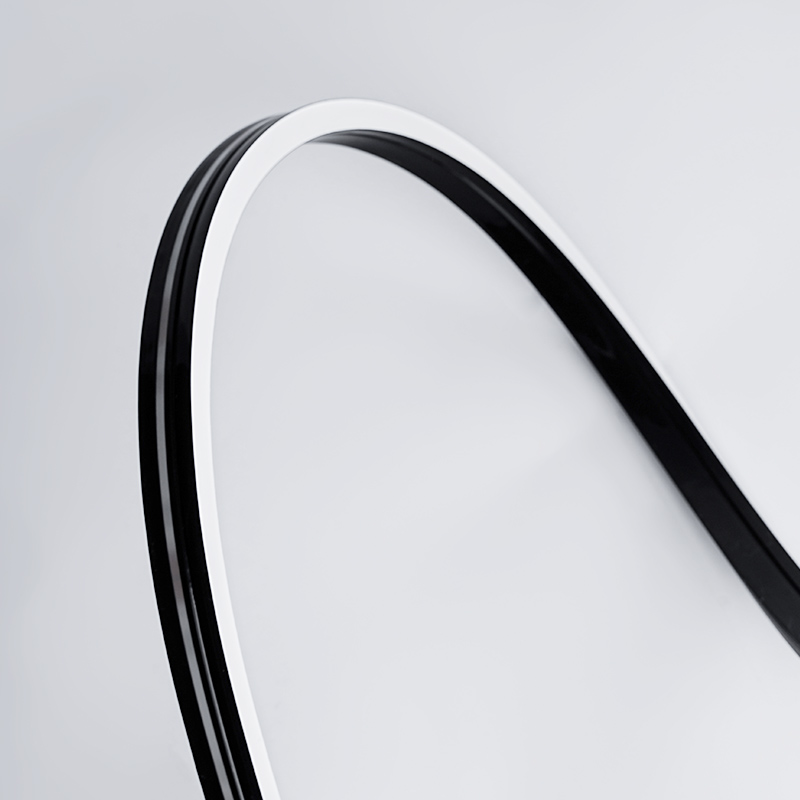

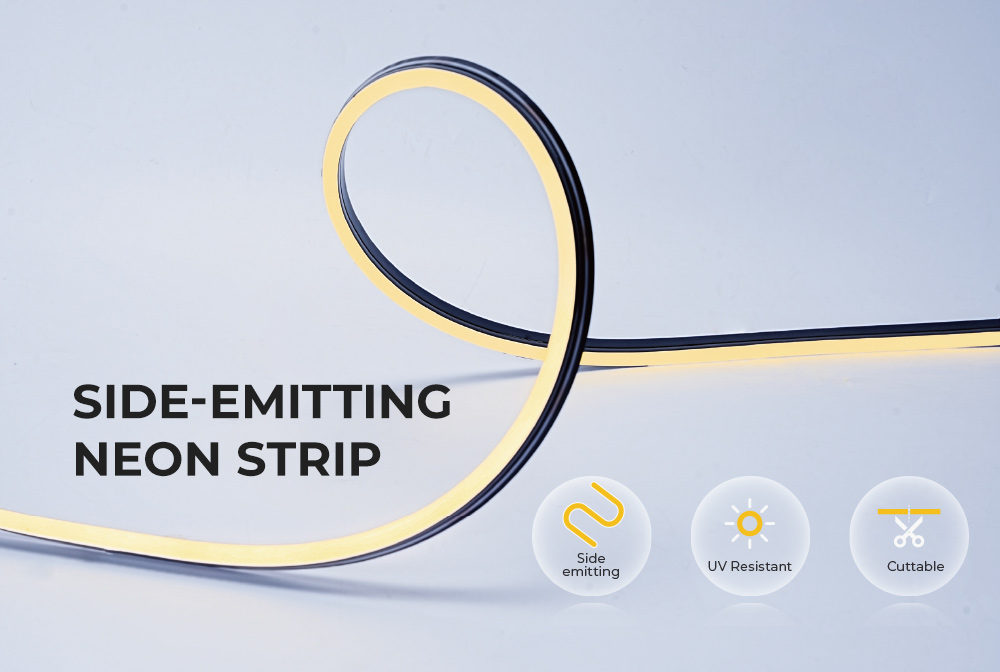

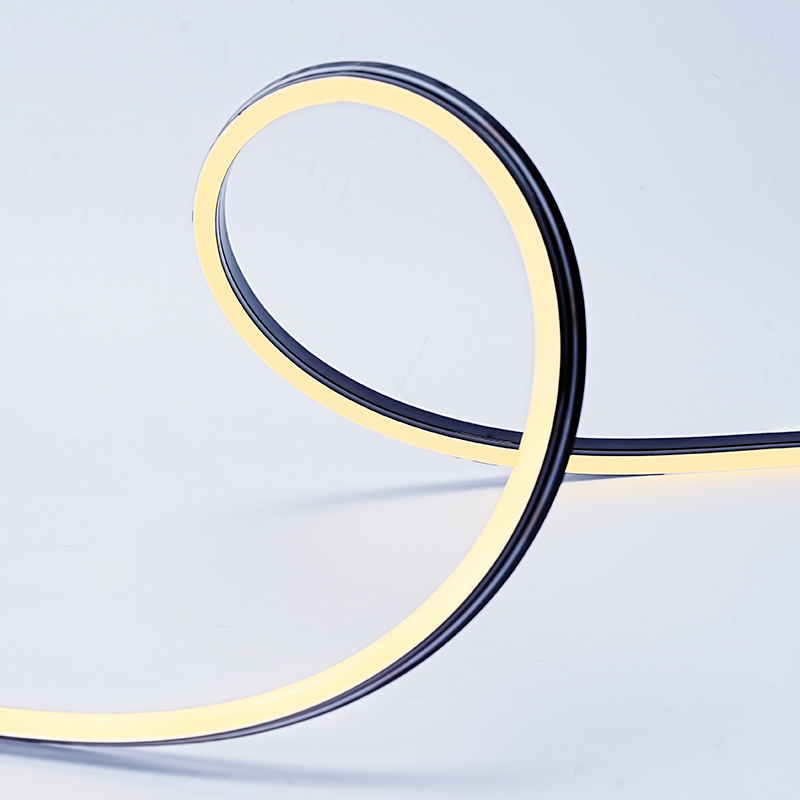

Side-emitting, Super flexible bending performance. Bending radius: R≥30.

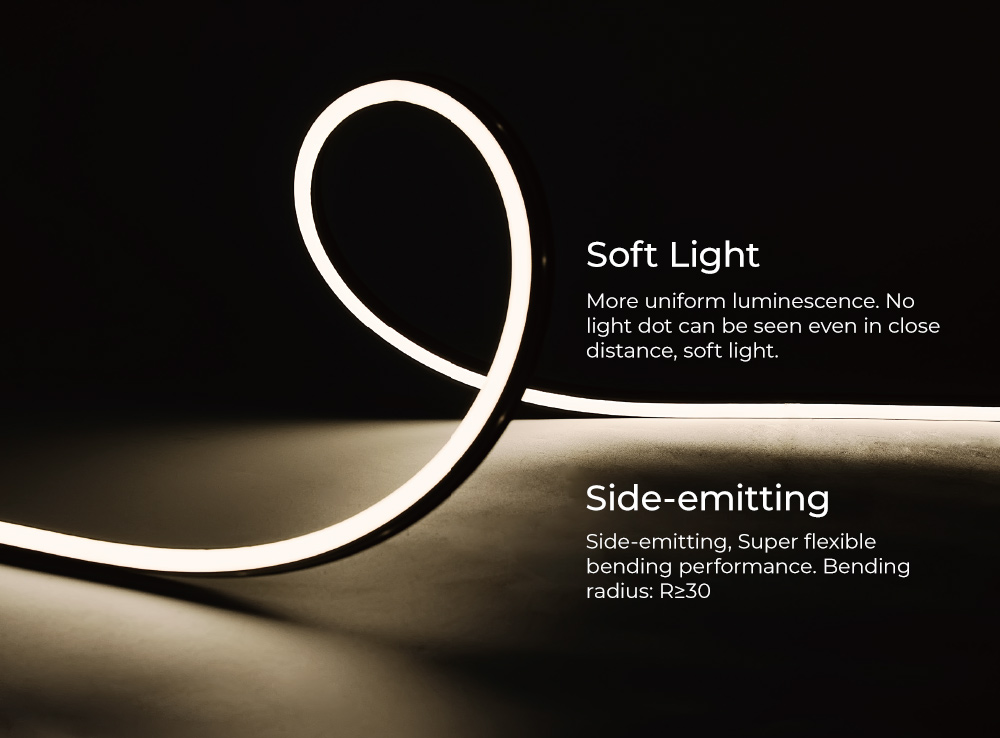

Soft Light,more uniform luminescence. no light dot can be seen even
in close distance, soft light.

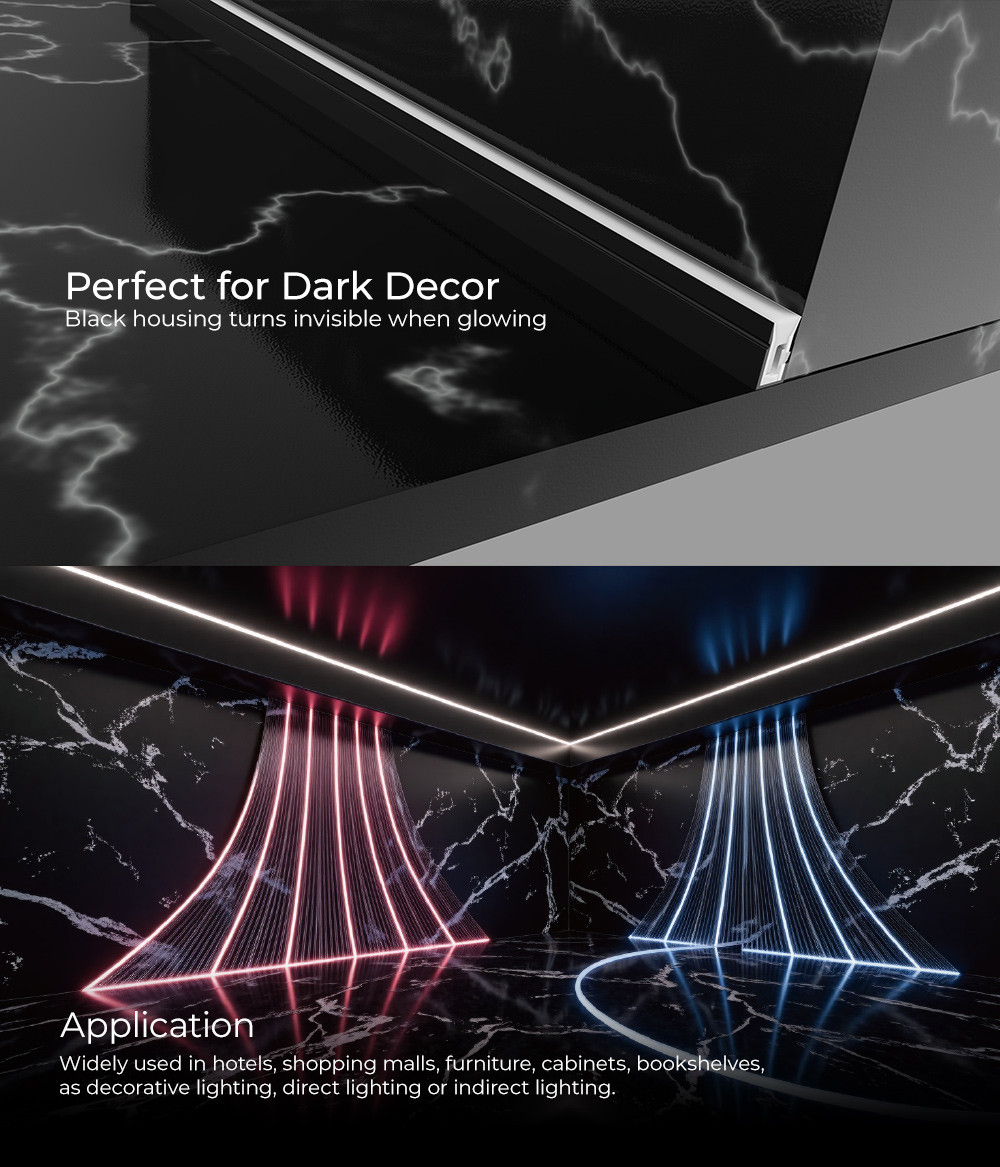

Perfect for Dark Decor,Black housing turns invisible when glowing.
IP65 waterproof grade, good waterproof effect, safer application.

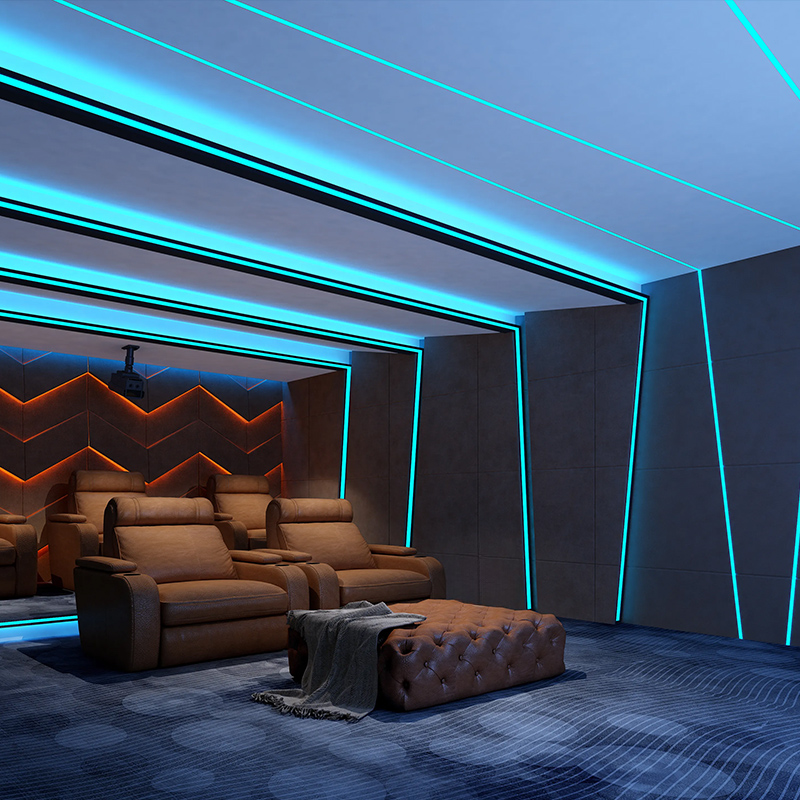

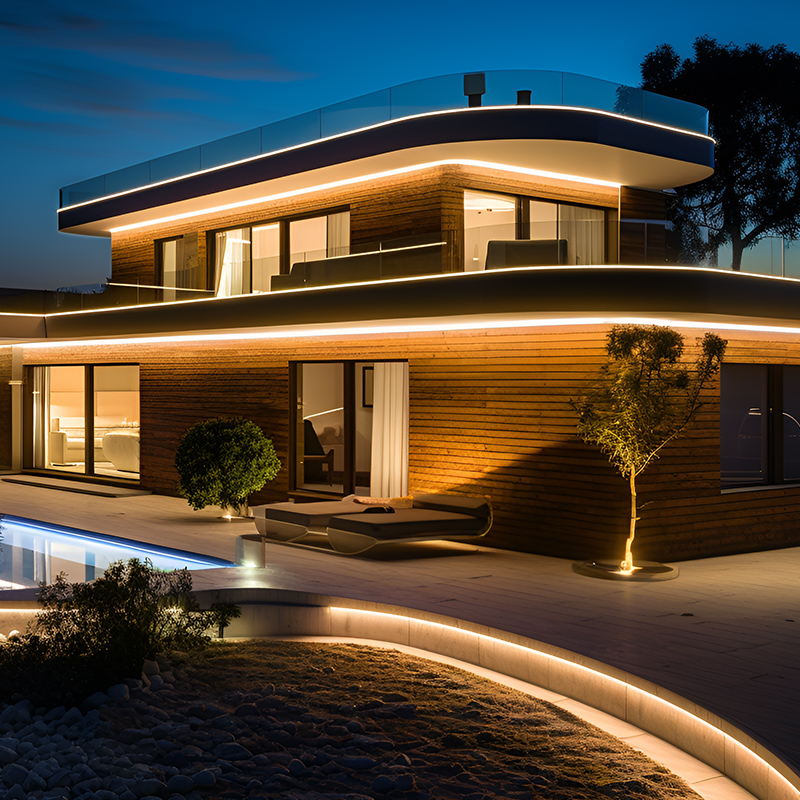

Widely used in hotels, shopping malls, furniture, cabinets, bookshelves,
as decorative lighting, direct lighting or indirect lighting.
| Model | Wave length & CCT range | Luminous flux (lm/m) | LED type | CRI | Beam angle (degree) | PCB width (mm) | Max. length (m) | DC voltage (V) | LED qty. (pcs/m) | Rated watt (W/m) | IP | |
| SC-2835-08-JS0612W -XX-128-24-8-IP65 | WW | 2800-3200K | 473 | 2835 | 80 | 112.9 | 8 | 5 | 24 | 128 | 7.6 | 65 |
| NW | 3800-4500K | 442 | ||||||||||
| W | 6000-6500K | 551 | ||||||||||
| R | 620-630nm | / | 2835 | / | 112.9 | 8 | 5 | 24 | 128 | 7.6 | 65 | |
| G | 515-530nm | / | ||||||||||
| B | 460-470nm | / | ||||||||||
Unit: mm/inch
