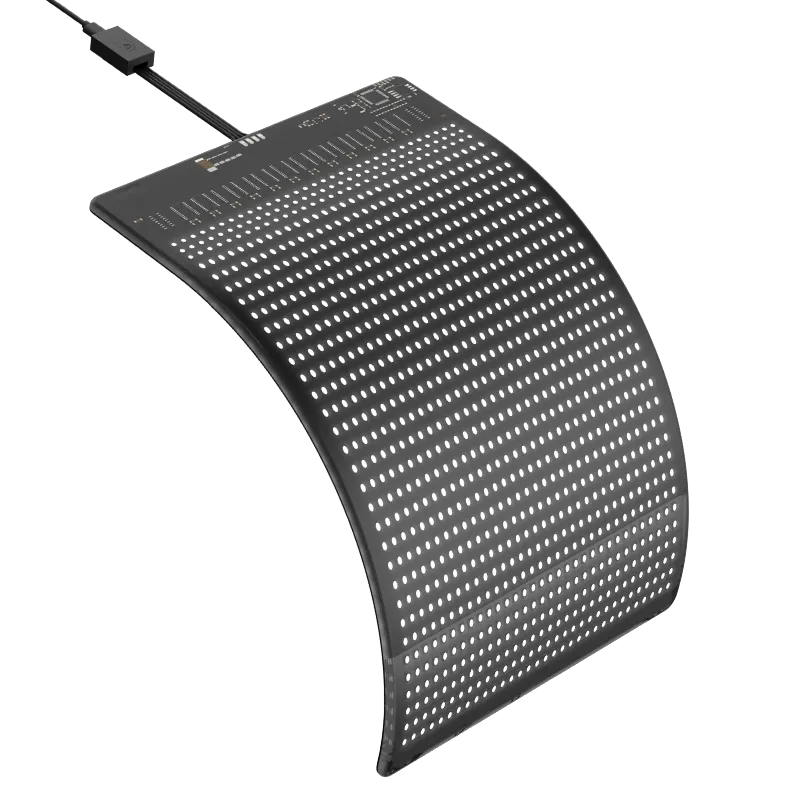

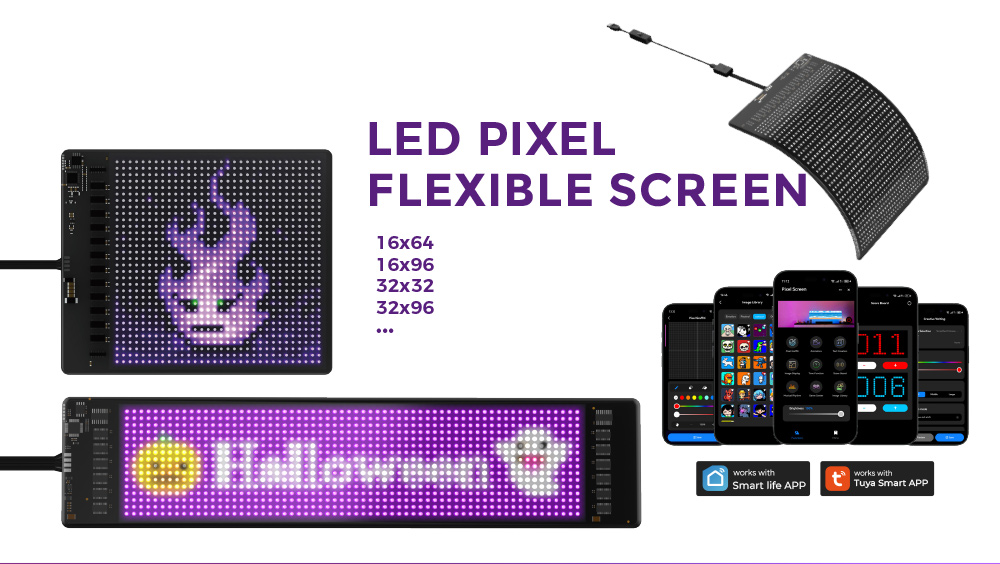

Ultra-Thin & Flexible: Less than 2mm thick and weighing only 0.5kg per panel, it conforms perfectly to any curved surface.
Seamless Scalability: Supports unlimited splicing and extension in all directions (left, right, up, down), maximizing display possibilities in limited spaces.

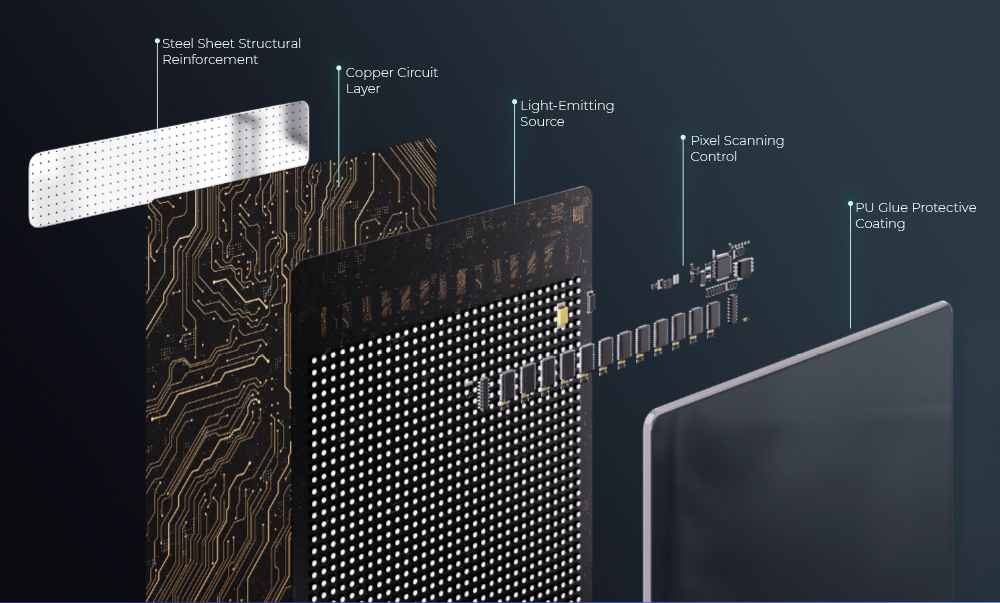

High-Performance Architecture: Features a separate LED and driver design with high-density SMD2121 RGB LEDs and the SM16208F scanning chip. This ensures high refresh rates, ghosting elimination, and superior reliability.
Precise Grayscale: Delivers consistent color performance indoors and outdoors with 16-level linear current regulation (variation <±2.5%) and minimal temperature impact (<±1%).

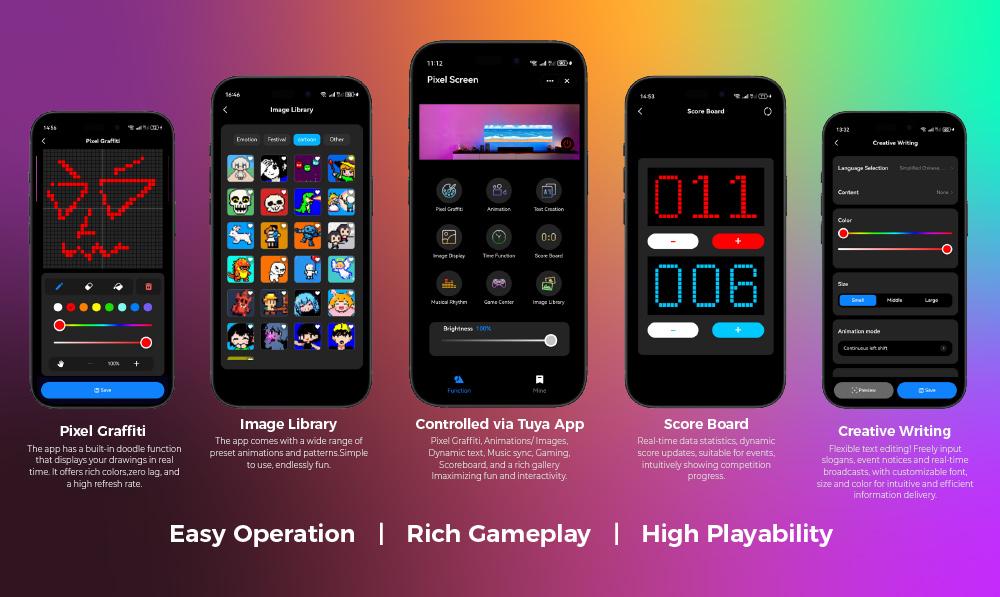

Smart Interaction: Integrated with Tuya Smart and Bluetooth for a customizable UI and industry-leading interactive experiences.
Fully Customizable: Offers bespoke sizing, breakpoint resume capabilities, and personalized pattern libraries.
Aesthetic Options: Available in both Black and Transparent finishes.
| Model | SC-F3232P4-B | SC-F1664P4-B |
| Unit Size | 168.5×140.5mm | 328.5×76.5mm |
| Unit Pixels | 1024PX | 1024PX |
| Pixel Pitch | 4×4mm | 4×4mm |
| LED Type | 2121RGB | 2121RGB |
| Pixel Density | 62500PX/m2 | 62500PX/m2 |
| Maximum Power | DC5V/0.48A | DC5V/0.48A |
| Screen Brightness | 11.5Lm | 11.5Lm |
| Scanning Method | Row-Column Scanning | Row-Column Scanning |
| Optimal Viewing Distance | >4m | >4m |
| Supported APP | Tuya Smart APP | Tuya Smart APP |

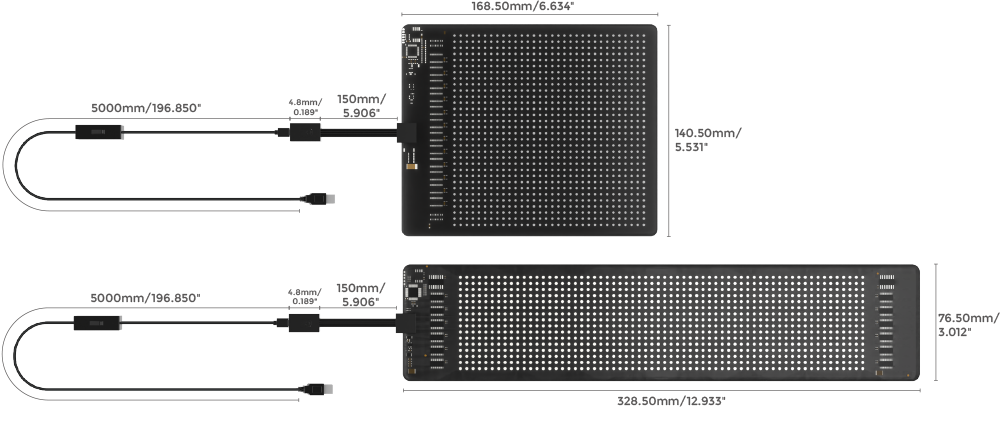

Unit: mm/inch
