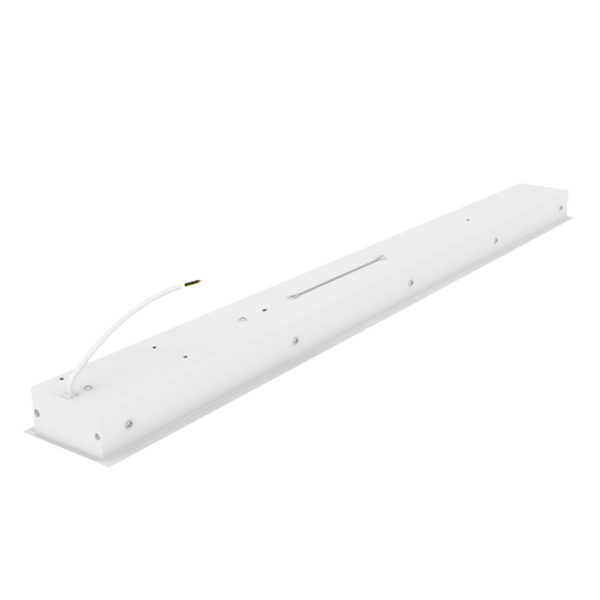

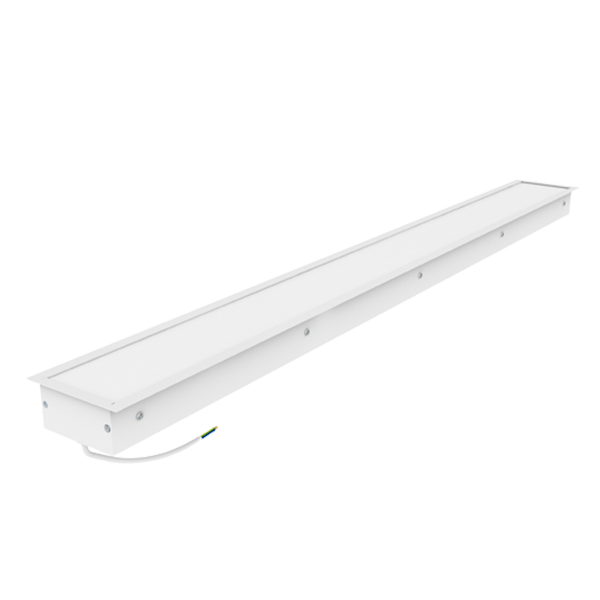

13054 Led Linear Light

13054 Led Linear Light

Rl13054 linear light is specially designed for recessed installation foroffices, schools, shopping malls hotels and so on. It has the excellent heat dissipation system and very uniform lighting effect. People can install the lights very easily under the ceiling.


  • The whole light is cold-rolled plates and PC materials with surface painting, allowing reliable and solid structure and good heat dissipation and optical performance.

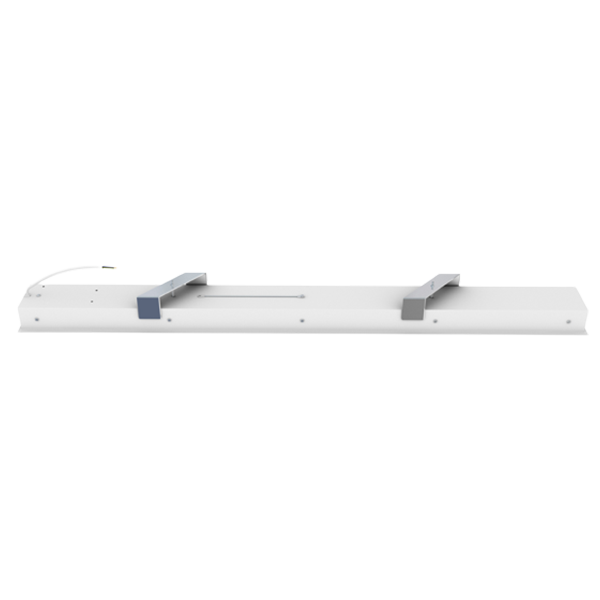

  • The adoption of U-shaped support and threaded rod embedded installation enables simple installation and dismantling.

  • People can install the lights very easily under the ceiling, no need to go into the ceiling,installation cost saving.

  • Large light emitting area reaches 100MM, the high lumen output can meet the general lighting requirements.

  • Ficker free driver with high PF>0.95.

  • Dimmable version for optional, 0-10V and DALI.

  • Emergency version is available.

0 10v dimmers dali 220 240v ac led 2835 pf 2 original design ies ce rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLight Output(lm)LED TypePower (W)(±10%)Length (mm)Voltage (V)CRIPF
SC-RL13054-020-AW-CW6000-6500K2000283520616

220-240VAC

50/60Hz

≥80≥0.9
SC-RL13054-020-AW-NW3800-4200K2000
SC-RL13054-020-AW-WW2800-3200K1800
SC-RL13054-040-AW-CW6000-6500K40002835401216

220-240VAC

50/60Hz

≥80≥0.9
SC-RL13054-040-AW-NW3800-4200K4000
SC-RL13054-040-AW-WW2800-3200K3600
SC-RL13054-050-AW-CW6000-6500K50002835501516

220-240VAC

50/60Hz

≥80≥0.9
SC-RL13054-050-AW-NW3800-4200K5000
SC-RL13054-050-AW-WW2800-3200K4550

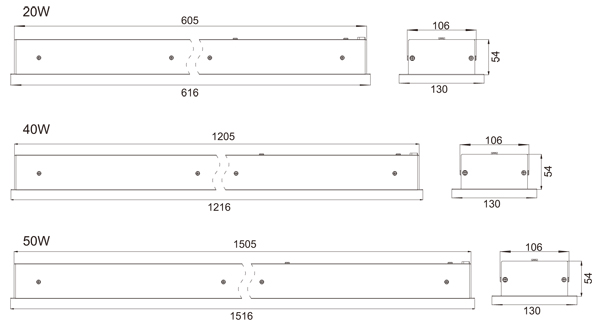

Size
