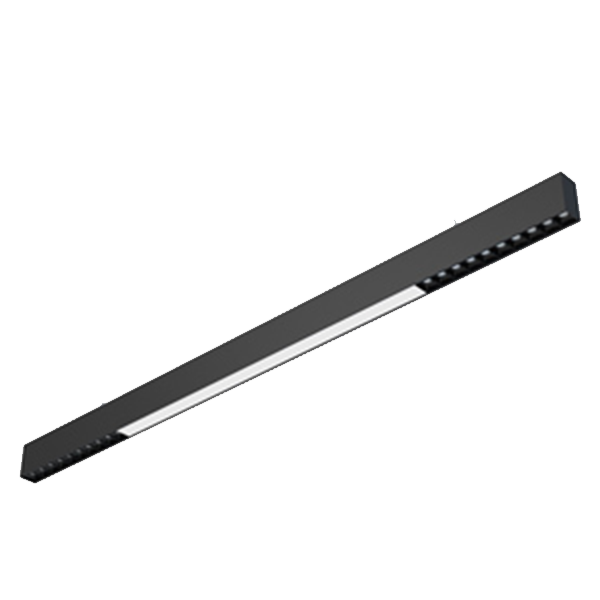

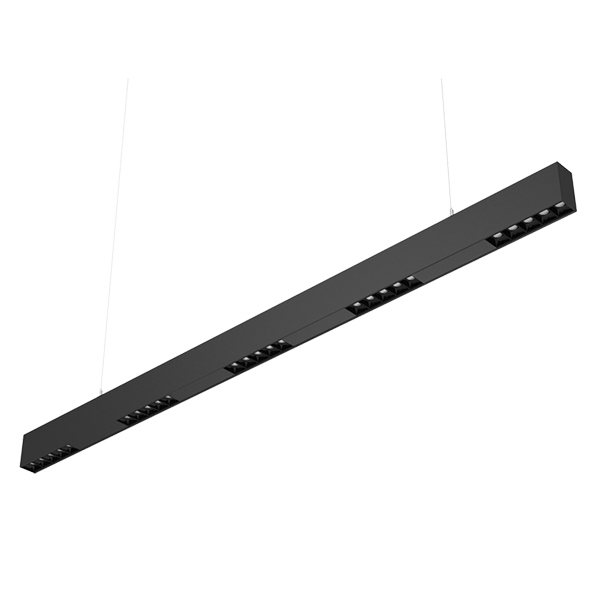

3668 Linear Light

3668 Linear Light

According to length, the product has 3 series, 1.2m, 1.5m and 2.4m; according to luminous surface cover, the product also has 3 series, full PC cover, fully anti-glare kit(RC01) and anti-glare kit and non-luminous area alternation(RC02). The anti-glare kit is equipped with 3030 assembled LEDs while the PC cover is equipped with 2835 assembled LEDs. The product features small size, low power consumption, long service life, low glare value, low heat, etc. This linear light is made up of an independent split type structure, which facilitates the dismantling, replacing of power supply and replacing of light panel. It sends forth linear light and available beam angle has 15°, 30°, 45° and 120°. The product looks simple, exquisite and graceful and can realize multiple jointing. The product can be widely used in home, school, shopping mall, hotel and other indoor public places. It’s mainly made of aluminum alloy and PC.


  • The product can be used in single piece or multiple pieces with seamless jointing and both of them share the same article number, facilitating preparation of goods and production. When the input voltage is AC220V, total power is ≤900W;

  • Light area and power supply is connected by electronic wire with male and female terminal, simple structure facilitating the dismantling and replacing of light area and power supply;

  • Eco-friendly, no UV, IR and mercury pollution, conform to EU ROHS;

  • As the main material of lamp body, aluminum profile features effective heat dissipation performance, light weight, strong load-bearing capacity and good processability;

  • The cover of anti-glare kit has low glare rating, UGR<10;

  • The effective heat dissipation design and slow temperature rise of LEDs and power supply ensure high stability for continuous working;

  • Can on/off frequently, no flicker, good CRI;

  • Simple, exquisite and graceful appearance, easy for installation and transportation.

45 110 pf 9 100 240v ac cri 80 ce rohs warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters


ModelColourLumenLED TypeLED Qty. (pcs)Length (mm)Voltage (V)Power(W)CRISeries
(±10%)Model
3668 Linear Light 40WWhite30673030451197100-240 VAC
50/60Hz
40>80RC01
Neutral White3068
Warm White2660
3669 Linear Light 50WWhite40003030561492100-240 VAC
50/60Hz
50>80
Neutral White4000
Warm White3650
3670 Linear Light 75WWhite64003030902389.5100-277 VAC
50/60Hz
75>80
Neutral White6400
Warm White5800
3671 Linear Light 20WWhite16003030251197100-277 VAC
50/60Hz
20>80RC02
Neutral White1600
Warm White1460
3672 Linear Light 25WWhite20003030301492100-240 VAC
50/60Hz
25>80
Neutral White2000
Warm White1825
3673 Linear Light 40WWhite30673030452389.5100-240 VAC
50/60Hz
40>80
Neutral White3068
Warm White2660
3674 Linear Light 40WWhite360028352041197100-240 VAC
50/60Hz
40>80PC Cover
Neutral White3600
Warm White3360
3675 Linear Light 50WWhite450028352521492100-240 VAC
50/60Hz
50>80
Neutral White4500
Warm White4200
3676 Linear Light 75WWhite675028354062389.5100-240 VAC
50/60Hz
75>80
Neutral White6750
Warm White6300

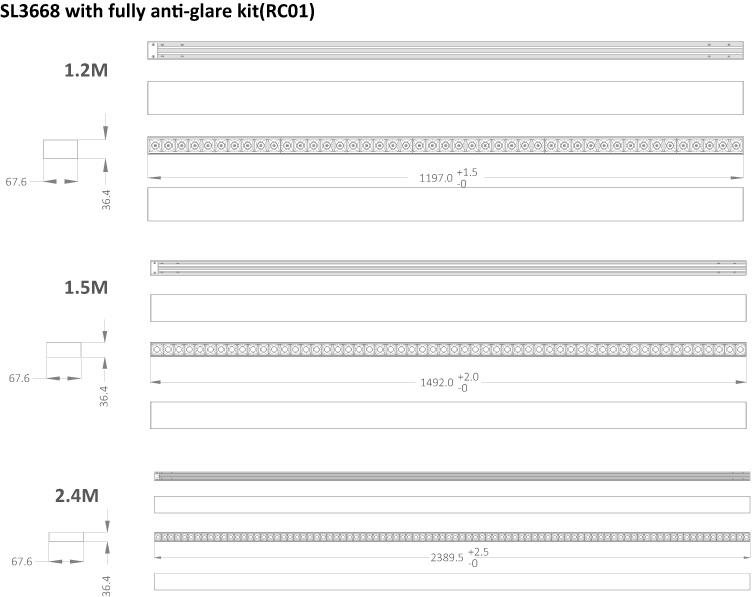

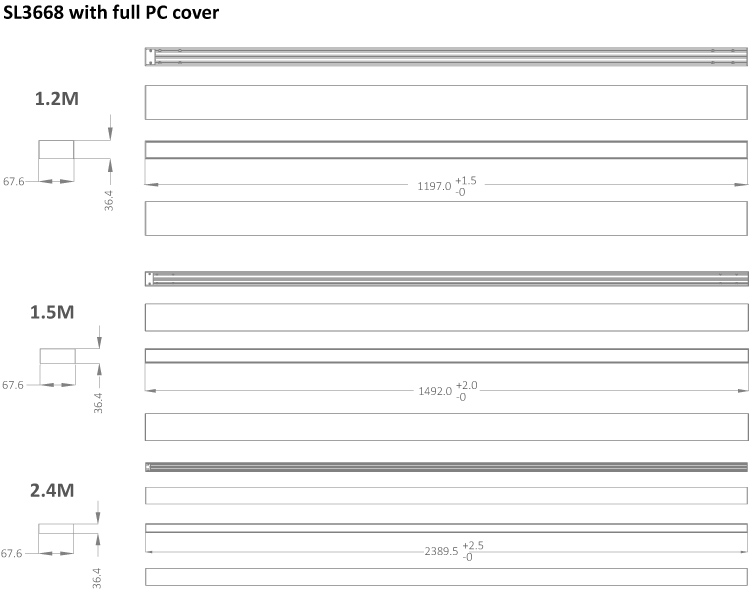

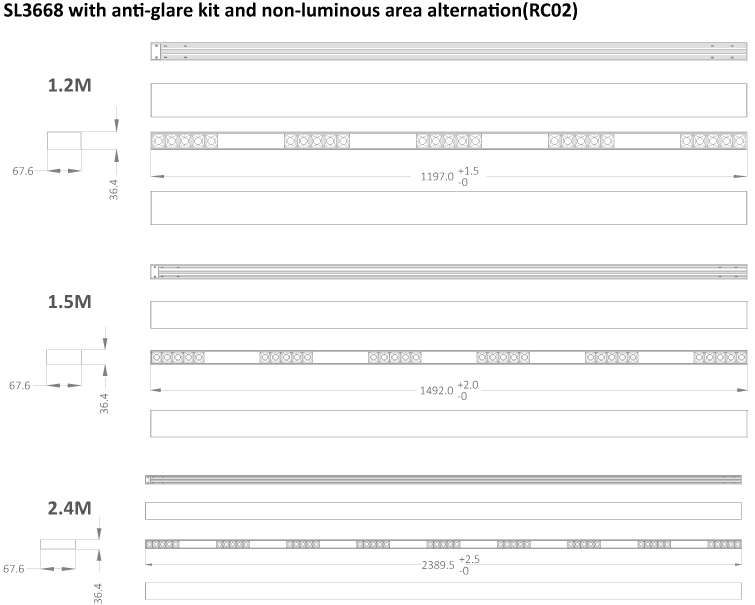

Size
