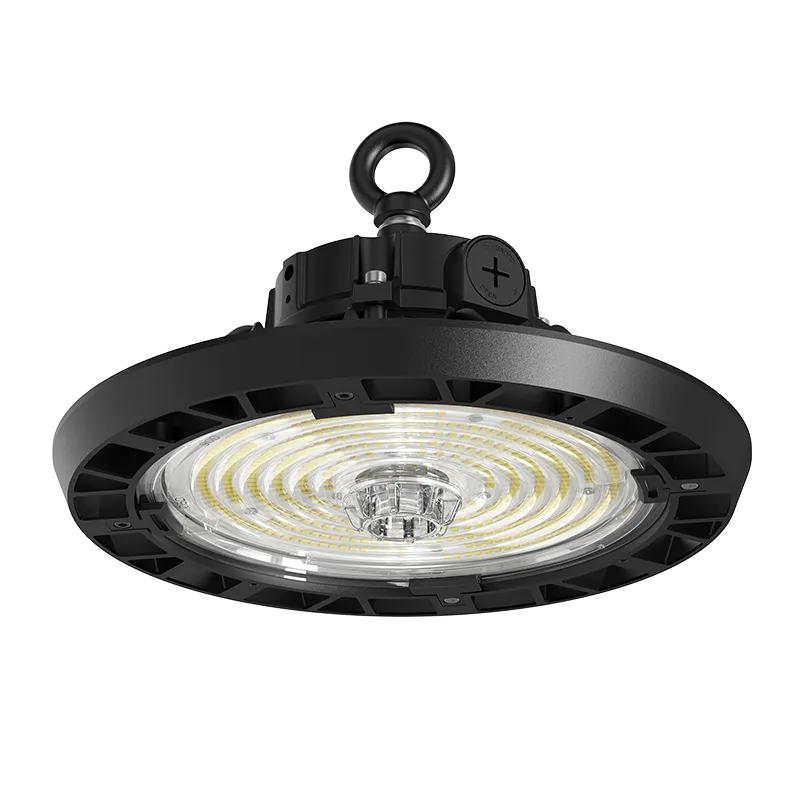

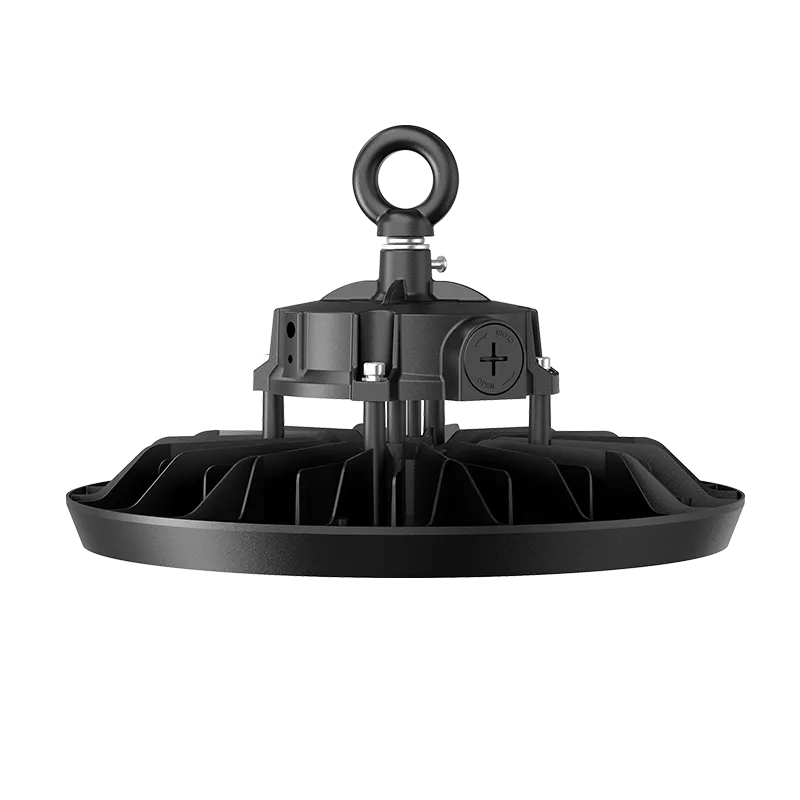

Cibay-T4 Lens Rotatable High Bay Light

Cibay-T4 series products have pluggable expansion interface. The required functional modules can be inserted into the interface to obtain the corresponding functions, plug and play, without wiring, which greatly saves labor costs.
The expansion interface can support microwave sensor, PIR sensor, Bluetooth sensor, signal converter, etc.
The functions required by customers can be easily installed and replaced by themselves, which is very convenient.

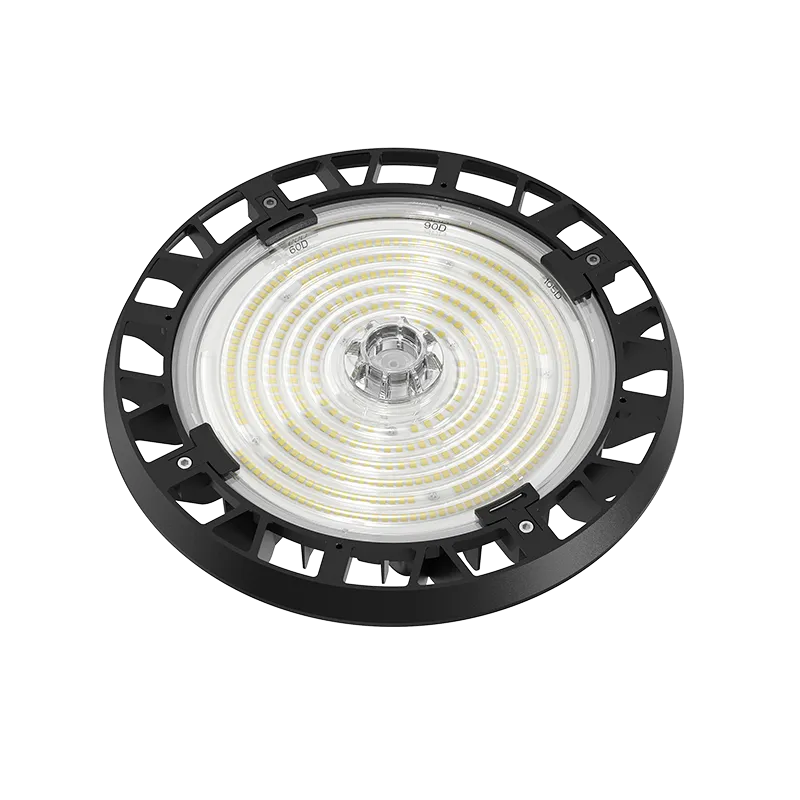

Lens adjustable which equals beam angle adjustable, 110°~90°~60°.
Power adjustable, CCT adjustable.
Plug & play sensors, multiple plug & play sensors available - Motion sensor, PIR sensor, Daylight sensor, etc

Inquire

Share

Parameters

Model	CCT (±300K)	Lumen(lm)±5%/MAX	Efficiency (LM/W)	Beam(angle)	LEDs type	CRI	Watts(W)		Voltage Frequency
CCT+Power Adjustable
CBT4-T100-AH-TCK-D4A1	3000K~4000K~6000K	12800~14200	140	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	60~80~100W		AH: 220-240VAC 50-60Hz
CBT4-T150-AH-TCK-D4A1		19200~21300					100~120~150W
CBT4-T200-AH-TCK-D4A1		25600~28400					120~150~200W
CBT4-T100-AH-TCK-D6A1	3000K~4000K~6000K	14800~16200	160	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	60~80~100W		AH: 220-240VAC 50-60Hz
CBT4-T150-AH-TCK-D6A1		22200~24300					100~120~150W
CBT4-T200-AH-TCK-D6A1		29600~32400					120~150~200W
CCT Adjustable
CBT4-100-AH-TCK-D4A1	3000K~4000K~6000K	14200	140	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	100W		AH: 220-240VAC 50-60Hz
CBT4-150-AH-TCK-D4A1		21300					150W
CBT4-200-AH-TCK-D4A1		28400					200W
CBT4-100-AH-TCK-D6A1	3000K~4000K~6000K	16200	160	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	100W		AH: 220-240VAC 50-60Hz
CBT4-150-AH-TCK-D6A1		24300					150W
CBT4-200-AH-TCK-D6A1		32400					200W
140LM/W
Model	CCT (±300K)	Lumen(lm)±5%/MAX	Efficiency (LM/W)	Beam(angle)	LEDs type	CRI	Watts(W)		Voltage Frequency
							Basic series	Power adjustable
CBT4-100-AH-60K-D4A1	6000K	13700	140	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	100W	60~80~100W	AH: 220-240VAC 50-60Hz
CBT4-100-AH-40K-D4A1	4000K	13800
CBT4-100-AH-30K-D4A1	3000K	13000
CBT4-150-AH-60K-D4A1	6000K	20550					150W	100~120~150W
CBT4-150-AH-40K-D4A1	4000K	20700
CBT4-150-AH-30K-D4A1	3000K	19500
CBT4-200-AH-60K-D4A1	6000K	27400					200W	120~150~200W
CBT4-200-AH-40K-D4A1	4000K	27600
CBT4-200-AH-30K-D4A1	3000K	26000
160LM/W
Model	CCT (±300K)	Lumen(lm)±5%/MAX	Efficiency (LM/W)	Beam(angle)	LEDs type	CRI	Watts(W)		Voltage Frequency
							Basic series	Power adjustable
CBT4-100-AH-60K-D4A1	6000K	15700	160	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	100W	60~80~100W	AH: 220-240VAC 50-60Hz
CBT4-100-AH-40K-D4A1	4000K	15800
CBT4-100-AH-30K-D4A1	3000K	15000
CBT4-150-AH-60K-D4A1	6000K	23550					150W	100~120~150W
CBT4-150-AH-40K-D4A1	4000K	23700
CBT4-150-AH-30K-D4A1	3000K	22500
CBT4-200-AH-60K-D4A1	6000K	31400					200W	120~150~200W
CBT4-200-AH-40K-D4A1	4000K	31600
CBT4-200-AH-30K-D4A1	3000K	30000
180LM/W
Model	CCT (±300K)	Lumen(lm)±5%/MAX	Efficiency (LM/W)	Beam(angle)	LEDs type	CRI	Watts(W)		Voltage Frequency
							Basic series	Power adjustable
CBT4-100-AH-60K-D8A1	6000K	17700	180	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	100W	60~80~100W	AH: 220-240VAC 50-60Hz
CBT4-100-AH-40K-D8A1	4000K	17800
CBT4-100-AH-30K-D8A1	3000K	17000
CBT4-150-AH-60K-D8A1	6000K	26550					150W	100~120~150W
CBT4-150-AH-40K-D8A1	4000K	26700
CBT4-150-AH-30K-D8A1	3000K	25500
CBT4-200-AH-60K-D8A1	6000K	35400					200W	120~150~200W
CBT4-200-AH-40K-D8A1	4000K	35600
CBT4-200-AH-30K-D8A1	3000K	34000
200LM/W
Model	CCT (±300K)	Lumen(lm)±5%/MAX	Efficiency (LM/W)	Beam(angle)	LEDs type	CRI	Watts(W)		Voltage Frequency
							Basic series	Power adjustable
CBT4-100-AH-60K-DAA1	6000K	19700	180	105°(90)~60° (Lens adjustable)	SMD 2835	＞80	100W	60~80~100W	AH: 220-240VAC 50-60Hz
CBT4-100-AH-40K-DAA1	4000K	19800
CBT4-100-AH-30K-DAA1	3000K	19000
CBT4-150-AH-60K-DAA1	6000K	29550					150W	100~120~150W
CBT4-150-AH-40K-DAA1	4000K	29700
CBT4-150-AH-30K-DAA1	3000K	28500
CBT4-200-AH-60K-DAA1	6000K	39400					200W	120~150~200W
CBT4-200-AH-40K-DAA1	4000K	39600
CBT4-200-AH-30K-DAA1	3000K	38000
