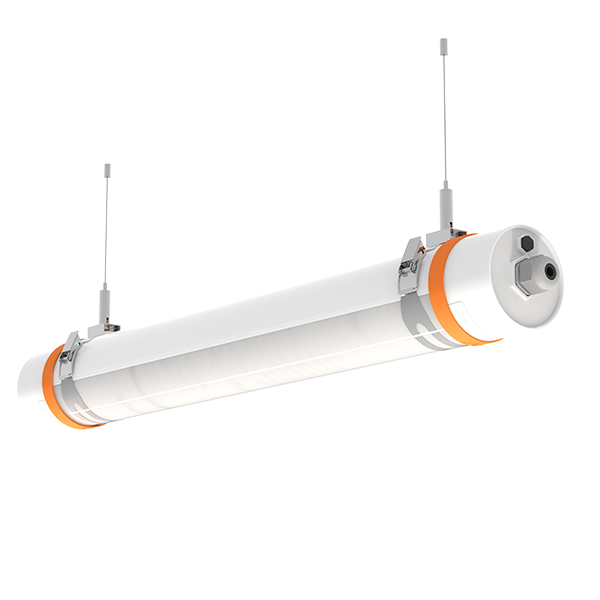

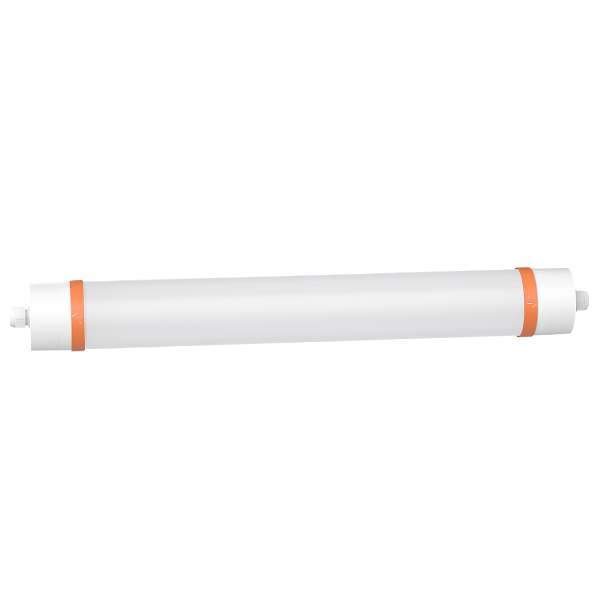

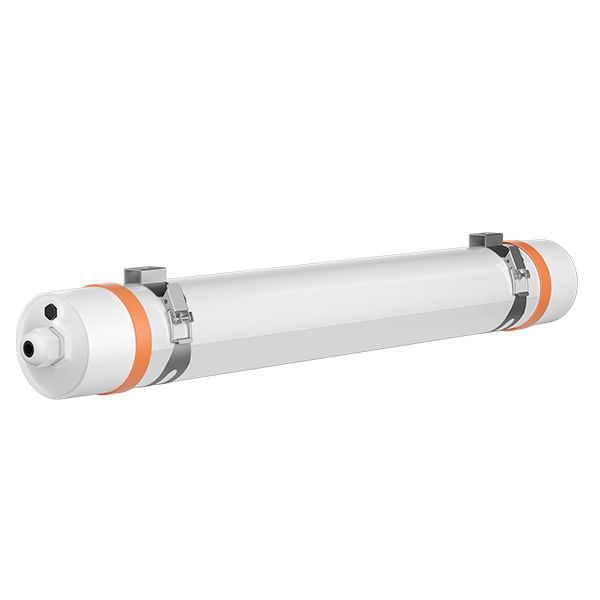

TPF Series Tri-proof Light

TPF Series Tri-proof Light

TPF tri-proof light is good for anti UV & Ammonia, and high protection IP69K & IK08 is suitable for multiple industrial and agricultural applications.

Designed for applications where water jets are under high pressure and high temperature are used for specific wash-downs.

  • Tool-free installation: 10s to complete the installation;

  • CCT & power tunable: Less SKU;

  • Easy to clean oil and dirt, excellent choice for food factory and farms;

  • Plug & play sensors , easy & flexible installation.

220 240v ac cri 80 120 power adjustable cct adjustable dali dimmers 4 5 patented pf 9 ik08 69k 20 40 ce rohs 3 7 warranty 5years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLight Output (lm±10%)LED TypePower (W)Voltage(V) FrequencyCRIPF
TPF tri-proof light
(2FT)
5500-6500K2700SMD 283518AC220-240V
50/60Hz
>80>0.9
3800-4200K2670
2700-3200K2450
TPF tri-proof light
(4FT)
5500-6500K5400SMD 28536AC220-240V
50/60Hz
>80>0.9
3800-4200K5360
2700-3200K4950
TPF tri-proof light
(5FT)
5500-6500K7540SMD 283550AC220-240V
50/60Hz
>80>0.9
3800-4200K7500
2700-3200K6850


Size

TPF Series Tri-proof Light
