Cibay-H Series High Bay Light

Cibay-H Series High Bay Light

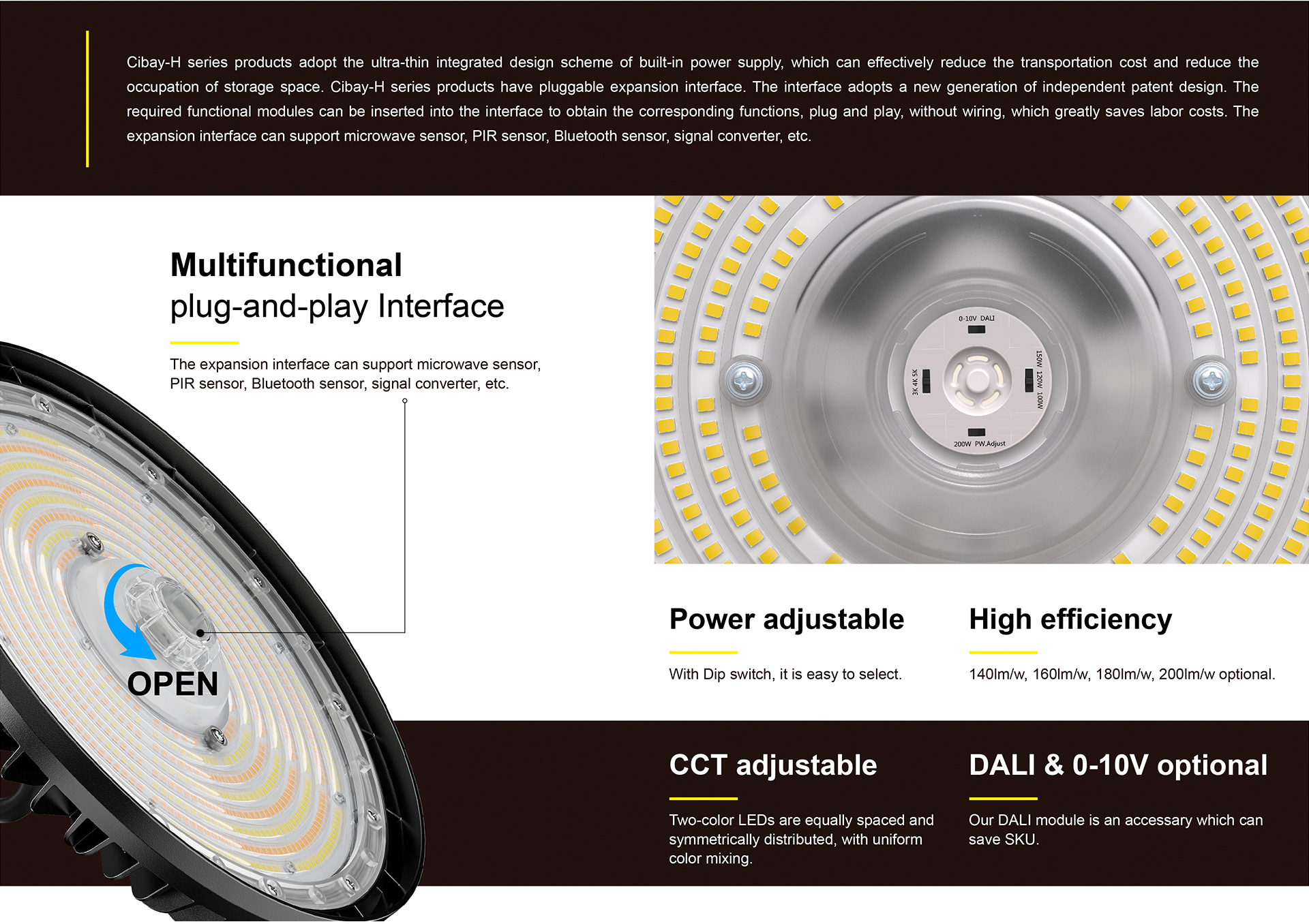

Cibay-H series products have pluggable expansion interface. The interface adopts a new generation of independent patent design. The required functional modules can be inserted into the interface to obtain the corresponding functions, plug and play, without wiring, which greatly saves labor costs.

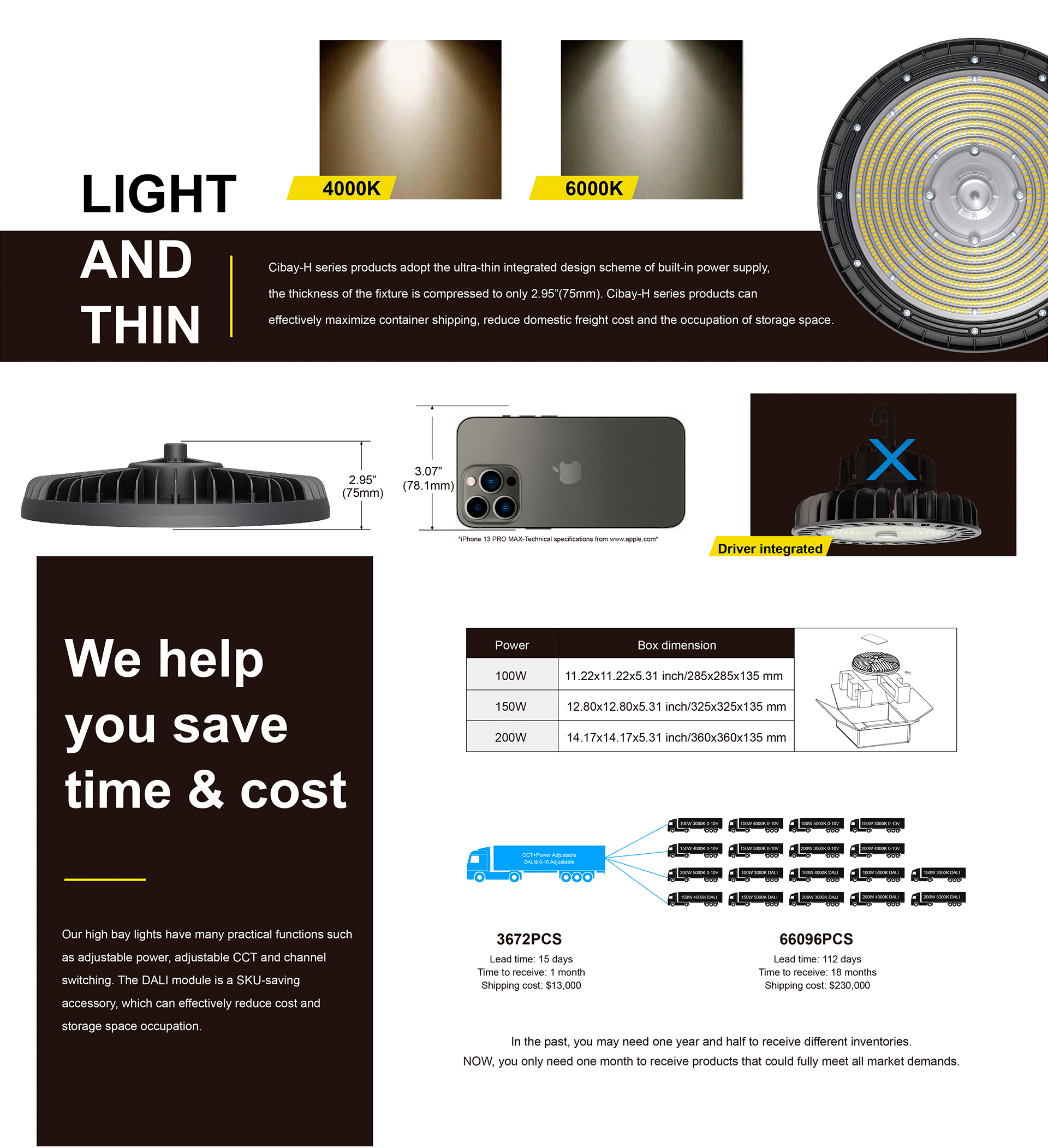

- Built in power supply, ultra-thin design, reduce 50% freight.

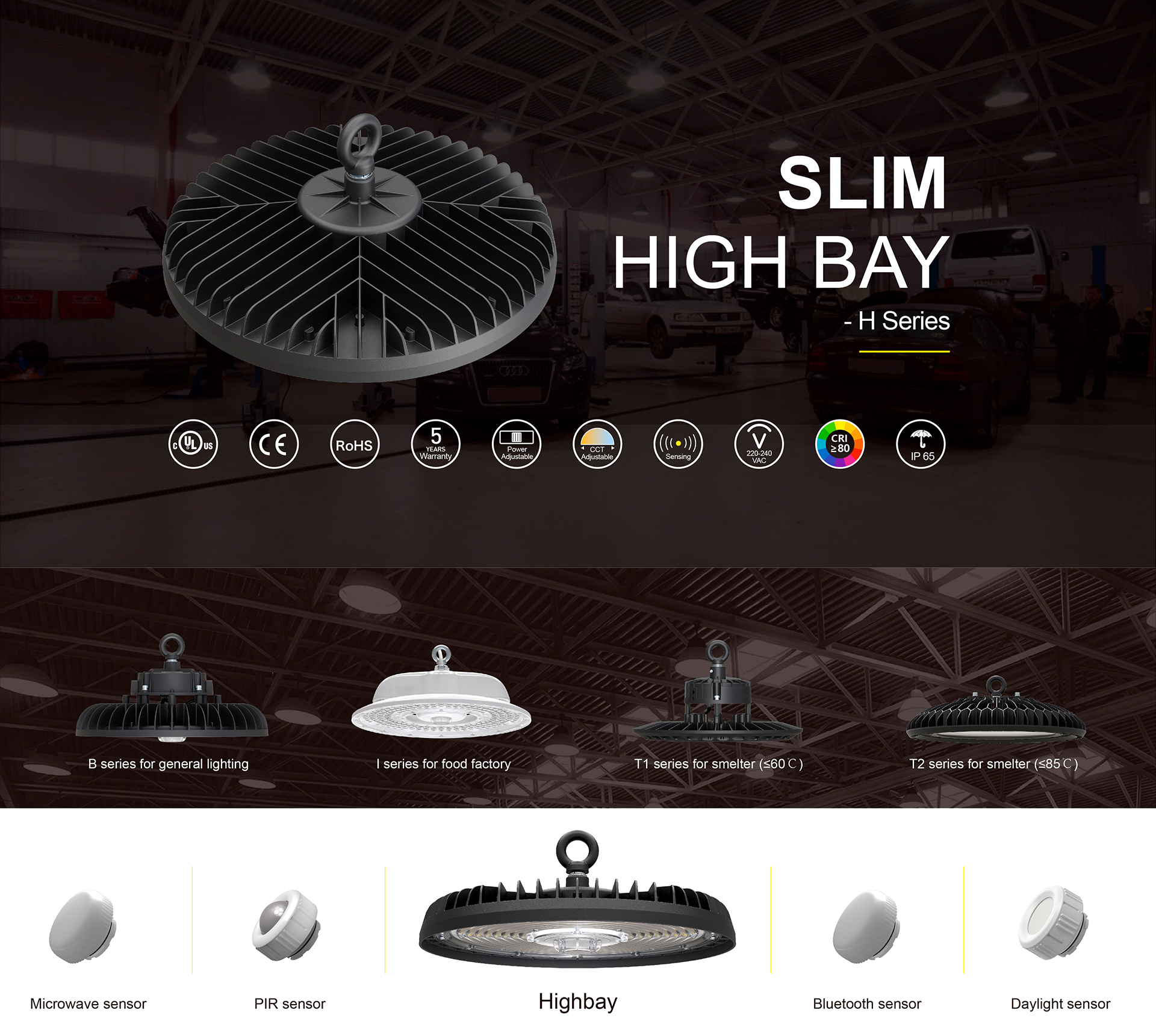

- Plug&play sensor, like Motion sensor, PIR, Daylight sensor and Bluetooth are available

0 10v dimmers microwave patented pir cct adjustable dali dimmers 220 240v ac power adjustable remote ce rohs warranty 5years ip 65
Inquire
Inquire
Share
Share
Detail
Specifications
Download

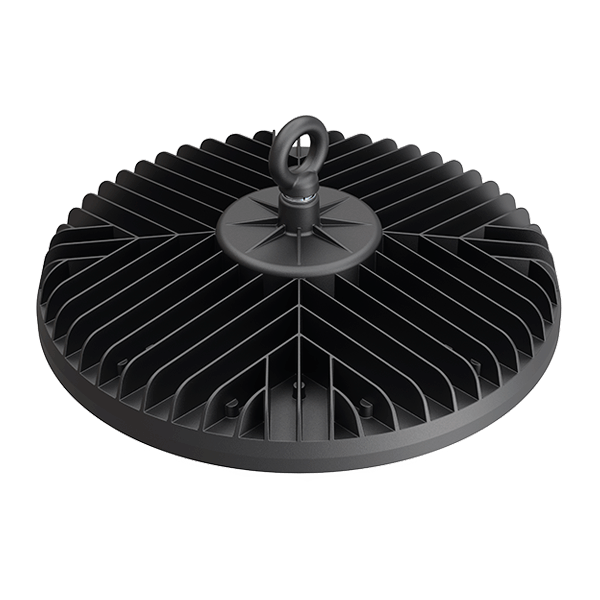

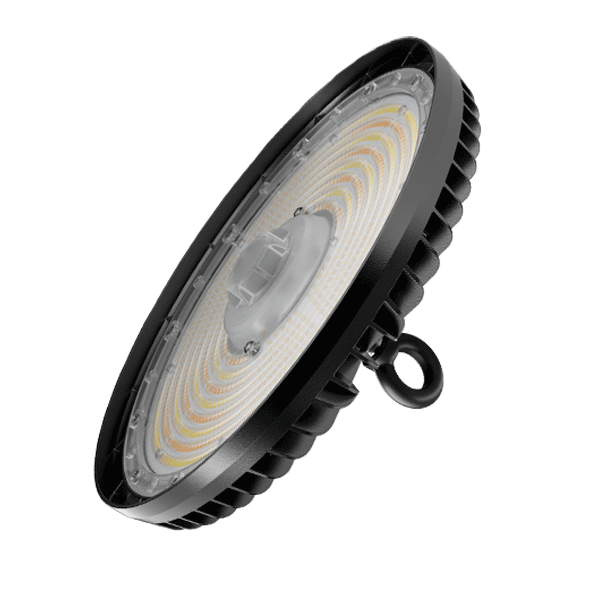

Slim High Bay Led Lighting

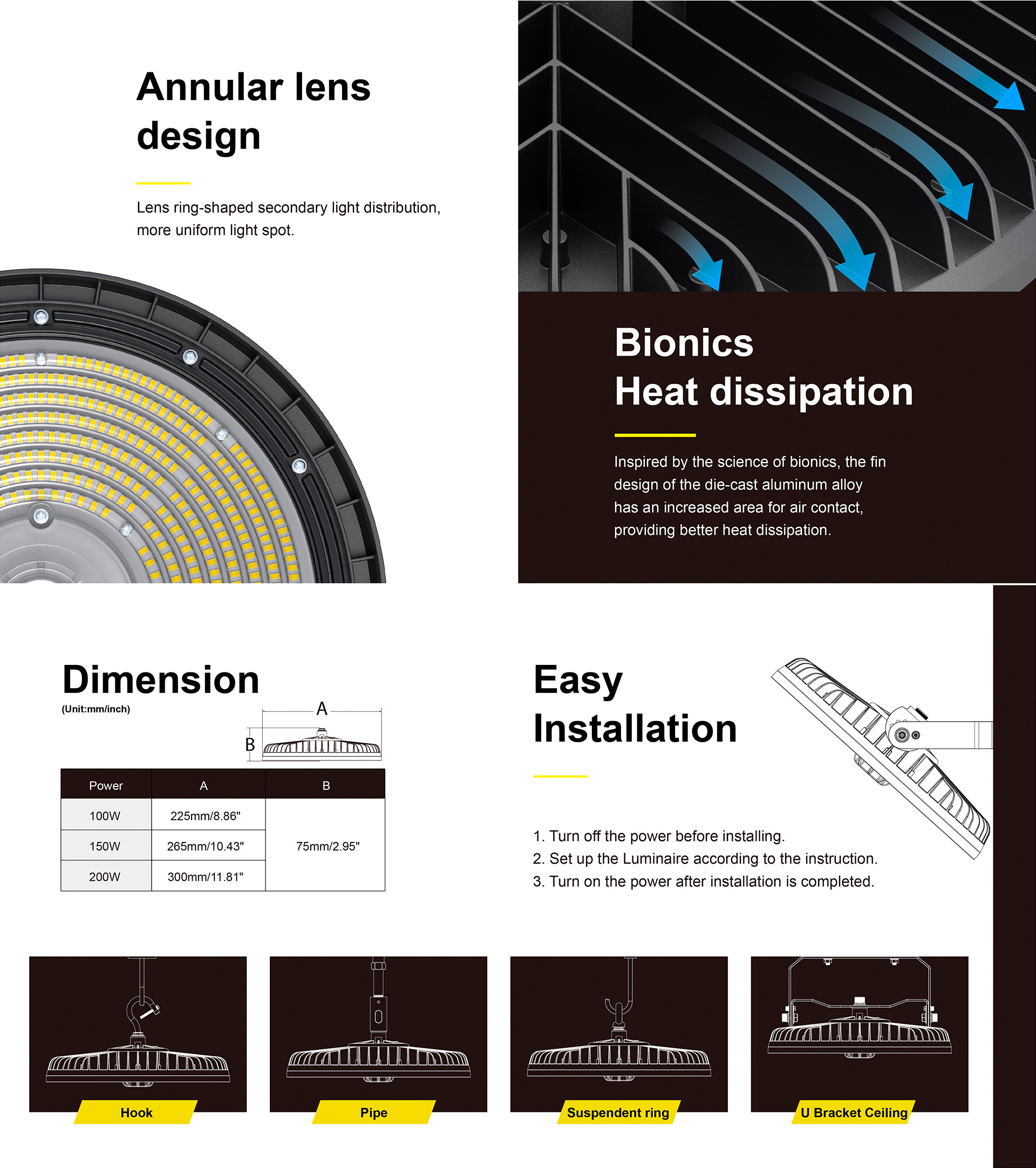

Annular lens designHighbay light save time & costMultifunctional plug-and-play interface

Parameters

Model

CCT

Lumen(lm)±

10%

Beam (angle)

±10%

LEDs Type

CRI

Power(w)

±10%

Voltage Frequency

CBH-100-AH-60K-D401-D411/D421

5500-6500K

14000

120° /90° /60°

SMD 2835

>80

100W

AW: 220-240VAC
50-60Hz, Max0.6A

CBH-100-AH-50K-D401-D411/D421

4700-5300K

13900

CBH-100-AH-40K-D401-D411/D421

3700-4300K

13600

CBH-150-AH-30K-D401-D411/D421

2700-3200K

13000

CBH-150-AH-60K-D401-D411/D421

5500-6500K

21000

120° /90° /60°

SMD 2835

>80

150W

AW: 220-240VAC

50-60Hz, Max0.6A

CBH-150-AH-50K-D401-D411/D421

4700-5300K

20850

CBH-150-AH-40K-D401-D411/D421

3700-4300K

20400

CBH-150-AH-30K-D401-D411/D421

2700-3200K

19500

CBH-200-AH-60K-D401-D411/D421

5500-6500K

28000

120° /90° /60°

SMD 2835

>80

200W

AW: 220-240VAC

50-60Hz, Max0.7A

CBH-200-AH-50K-D401-D411/D421

4700-5300K

27800

CBH-200-AH-40K-D401-D411/D421

3700-4300K

27200

CBH-200-AH-30K-D401-D411/D421

2700-3200K

26000



Size


Need more information? Contact us
Send Us Your Request
Explore efficient and innovative LED solutions at Signcomplex. Our experts are happy to provide you with professional advice.
