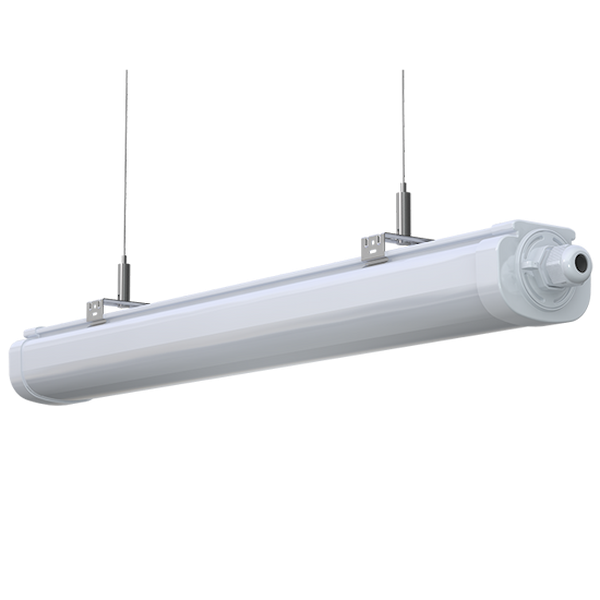

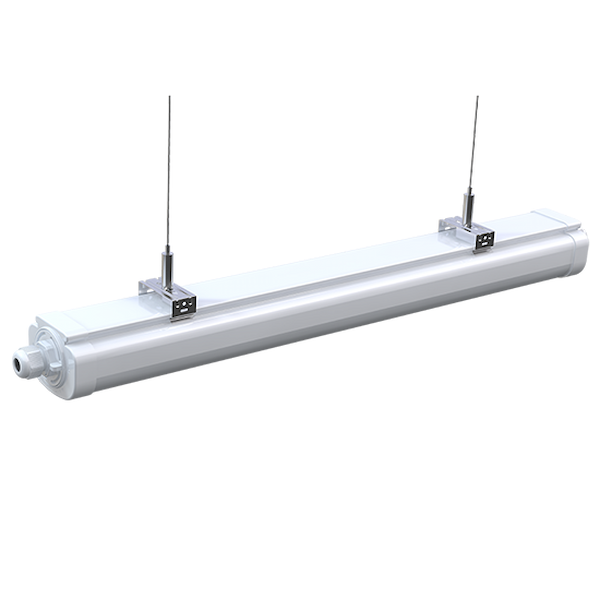

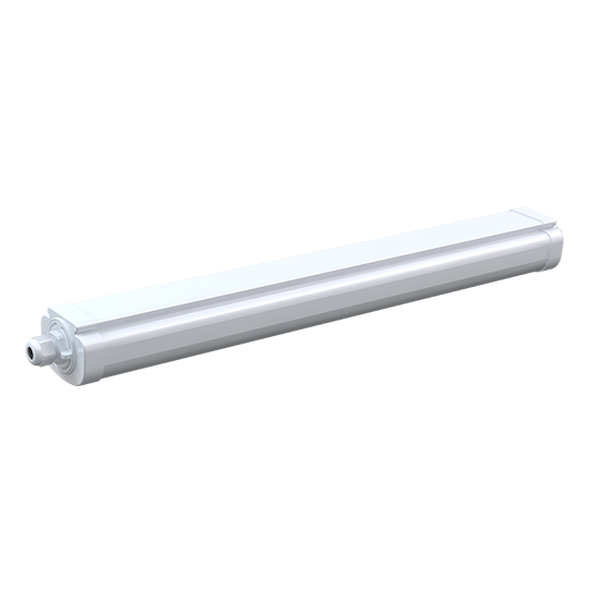

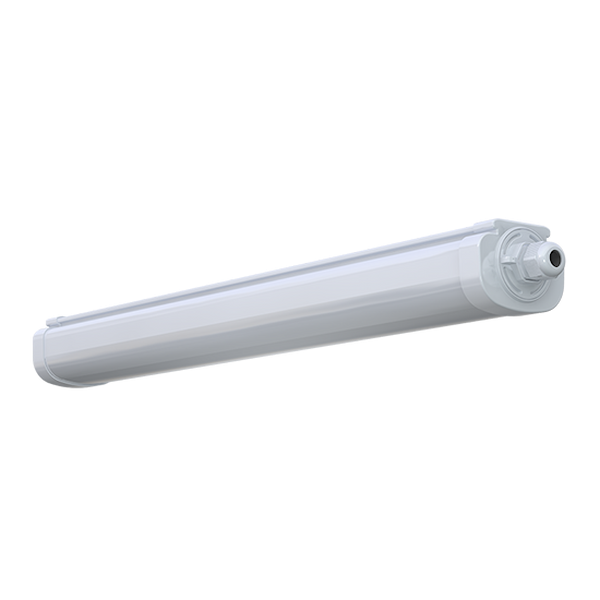

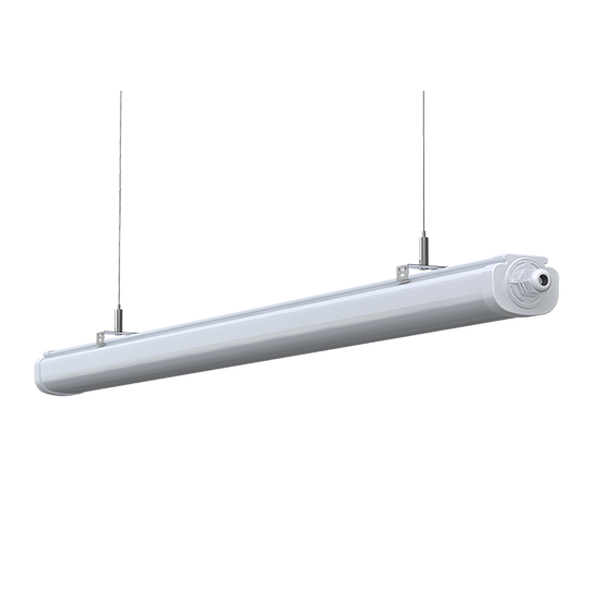

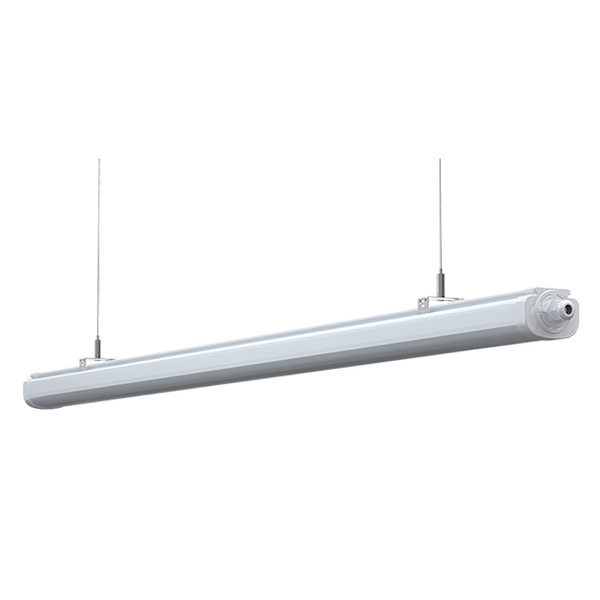

TPA Integrated Tri-proof Light

TPA Integrated Tri-proof Light

Tproof-A lamps are designed for application sites where waterproof, dustproof and mild corrosion prevention lighting is required such as warehouse, parking lots, foodstuffs factory, dust plant and other sites.

  • The rotary end cover facilitates to open for wiring and saves more than half of the installation time.

  • With press type terminals, wiring is performed without use of tolls.

  • High lighting effect, giving out even and soft light. 100LM /W and 130LM /W for selection,160LM/W for options.

patented ik08 0 10v dimmers warranty 5years ul
Inquire
Inquire
Share
Share
Specifications
Download

Parameters


ModelCCTLumen (lm)
(±10%)
Beam angleLEDs typeVoltage,
frequency
Power(w)Max.current
(A)
CRIPF
TPA-018-AH-60K-001/S001/D0015500-6500K1800120°SMD2835AC220-240V
50/60Hz
180.12>80>0.9
TPA-018-AH-50K-001/S001/D0014700-5300K1800
TPA-018-AH-40K-001/S001/D0013800-4200K1750
TPA-018-AH-30K-001/S001/D0012700-3200K1620
TPA-036-AH-60K-001/S001/E001/D0015500-6500K3600120°SMD2835AC220-240V
50/60Hz
360.25>80>0.9
TPA-036-AH-50K-001/S001/E001/D0014700-5300K3600
TPA-036-AH-40K-001/S001/E001/D0013800-4200K3520
TPA-036-AH-30K-001/S001/E001/D0012700-3200K3240
TPA-018-AH-60K-H01/SH01/DH015500-6500K2340120°SMD2835AC220-240V
50/60Hz
500.3>80>0.9
TPA-018-AH-50K-H01/SH01/DH014700-5300K2340
TPA-018-AH-40K-H01/SH01/DH013800-4200K2300
TPA-018-AH-30K-H01/SH01/DH012700-3200K2160
TPA-036-AH-60K-H01/SH01/EH01/DH015500-6500K4680120°SMD2835AC220-240V
50/60Hz
180.12>80>0.9
TPA-036-AH-50K-H01/SH01/EH01/DH014700-5300K4680
TPA-036-AH-40K-H01/SH01/EH01/DH013800-4200K4600
TPA-036-AH-30K-H01/SH01/EH01/DH012700-3200K4320
TPA-050-AH-60K-001/S001/E001/D0015500-6500K5000120°SMD2835AC220-240V
50/60Hz
360.25>80>0.9
TPA-050-AH-50K-001/S001/E001/D0014700-5300K5000
TPA-050-AH-40K-001/S001/E001/D0013800-4200K4900
TPA-050-AH-30K-001/S001/E001/D0012700-3200K4500
TPA-050-AH-60K-H01/SH01/EH01/DH015500-6500K6500120°SMD2835AC220-240V
50/60Hz
500.3>80>0.9
TPA-050-AH-50K-H01/SH01/EH01/DH014700-5300K6500
TPA-050-AH-40K-H01/SH01/EH01/DH013800-4200K6400
TPA-050-AH-30K-H01/SH01/EH01/DH012700-3200K6000


001/S001/E001/D001=Milky lamp shade series/Sensor series/Emergency series/DALI dimming series

H01/SH01/EH01/DH01=High output series/Sensor series/Emergency series/DALI dimming series

Size
