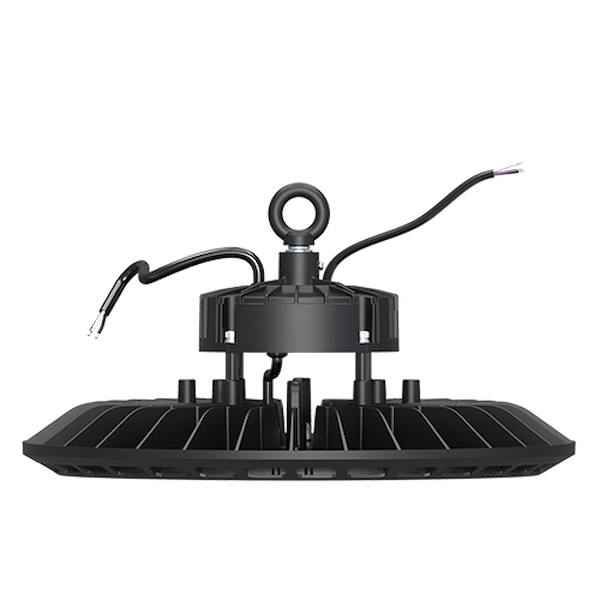

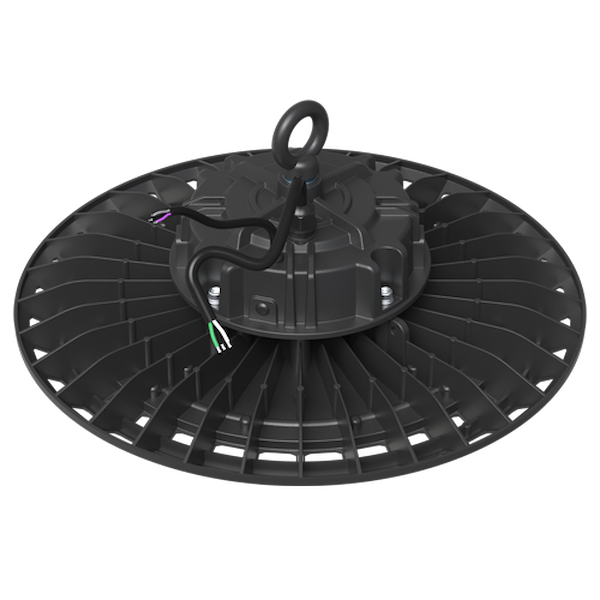

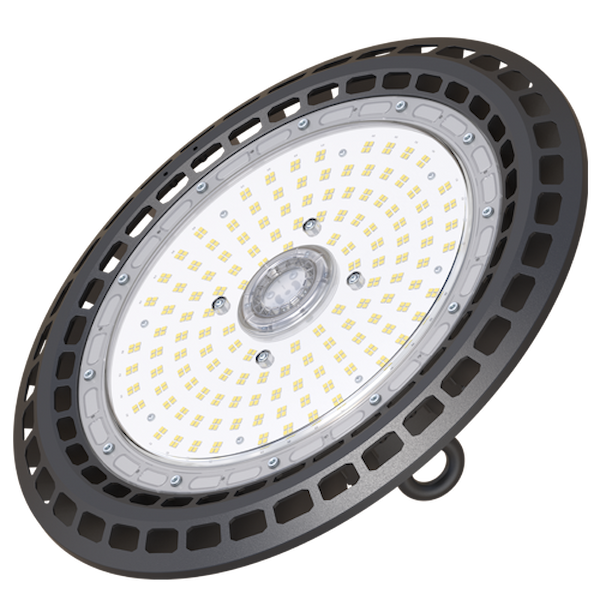

Cibay-T1 Series High Bay Light

Cibay-T1 Series High Bay Light

Cibay-T1 high bay, which is applied to ambient high temperature working area where operation temperature may reach 65°C, such as Steel plant, Aluminum smeltery, and other High-temperature environment.
Cibay-T1 is with built-in overtemperature protection which has high tempature control accuracy and sensitive.

  • It can be used in harsh environment with ambient temperature less than 65 ℃.

  • UV-resistant PC material optics, IK08 impact resistance grade.

  • The LEDs are arranged symmetric



Cibay-T1 Series High Bay Light
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCT

Lumen(lm)

±10%

Beam (angle)

±10%

LEDs TypeCRI

Power(w)

±5%

Voltage Frequency
CBT1-100-AW-60K-D0016000K13400120°
90°
60°
SMD 2835>80100WAW: 100-240VAC
50-60Hz, Max1.2A
CBT1-100-AW-40K-D0014000K13270
CBT1-100-AW-30K-D0013000K12300
CBT1-120-AW-60K-D0016000K17400120°
90°
60°
SMD 2835>80120WAW: 100-240VAC
50-60Hz, Max1.4A
CBT1-120-AW-40K-D0014000K17160
CBT1-120-AW-30K-D0013000K16320
CBT1-150-AW-60K-D0016000K22500120°
90°
60°
SMD 2835>80150WAW: 100-240VAC
50-60Hz, Max1.8A
CBT1-150-AW-40K-D0014000K22200
CBT1-150-AW-30K-D0013000K21150
CBT1-200-AW-60K-D0016000K28000120°
90°
60°
SMD 2835>80200WAW: 100-240VAC
50-60Hz, Max2.3A
CBT1-200-AW-40K-D0014000K27600
CBT1-200-AW-30K-D0013000K26200

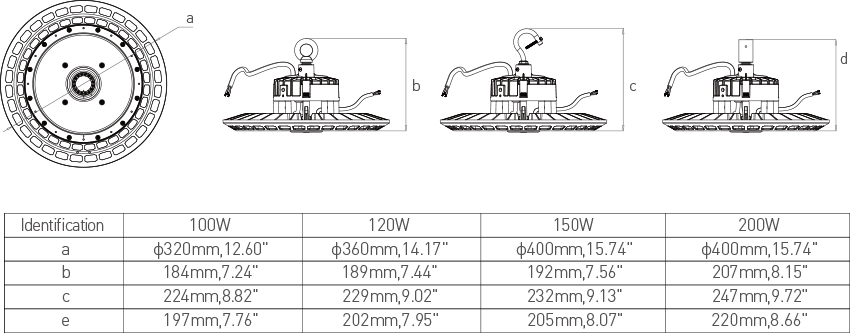

Size
