TPM Series Tri-proof Light

TPM Series Tri-proof Light

Sustainable version tri-proof is a modular design,

openable and sustainable luminaire,

so that we could benefit by more possibilities,

easier maintenance, and less CO2 emmission.

● Tool free installation:10s to complete the installation.

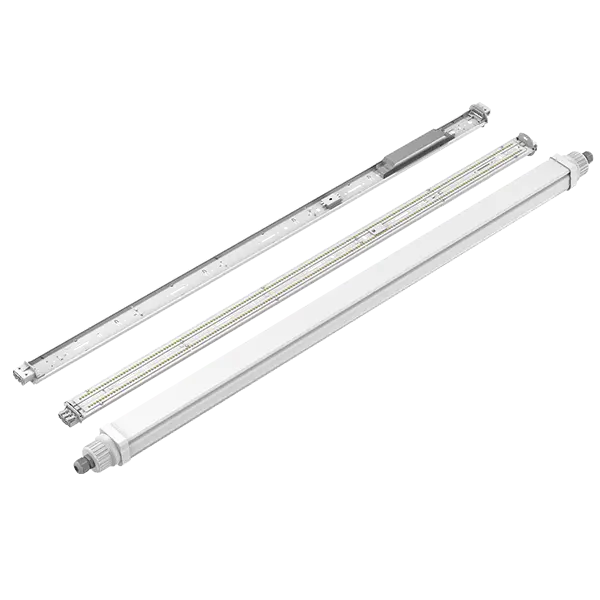

● Modular and openable design for easy maintenance.

● Power tunable :Less SKU.

● Plug & play sensors , easy & flexible installation,

   can be installed wherever needed

Inquire
Inquire
Share
Share
Specifications

Parameters

ModelCCT

Light output
 (lm±10%)

Bean angle(degree)LED typePower(W)Voltage(V) frequencyCRIPF
TPM tri-proof light
(0.6m)
5500-6500K2664
120SMD 283518AC220-240V
50/60Hz
>80>0.9
4700-5300K2628
3800-4200K2610
2700-3200K2520
TPM tri-proof light
(1.2m)
5500-6500K5508120SMD 283536AC220-240V
50/60Hz
>80>0.9
4700-5300K5508
3800-4200K5400
2700-3200K5364
TPM tri-proof light
(1.5m)
5500-6500K7650120SMD 283550AC220-240V
50/60Hz
>80>0.9
4700-5300K7500
3800-4200K7400
2700-3200K7300

Size

Unit: mm/inch
