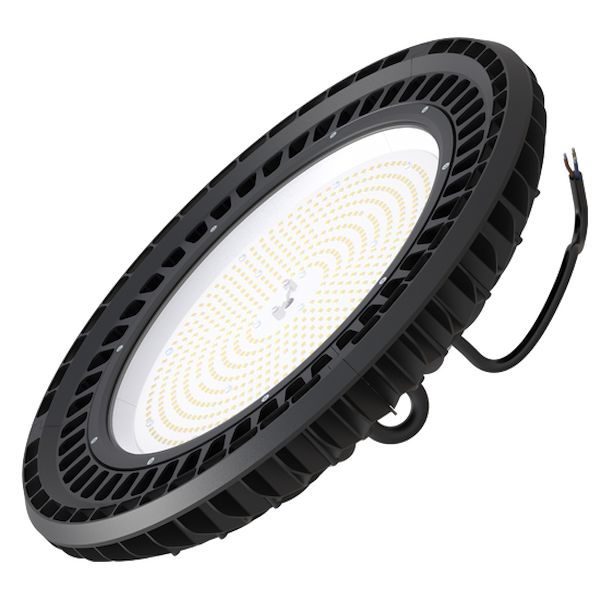

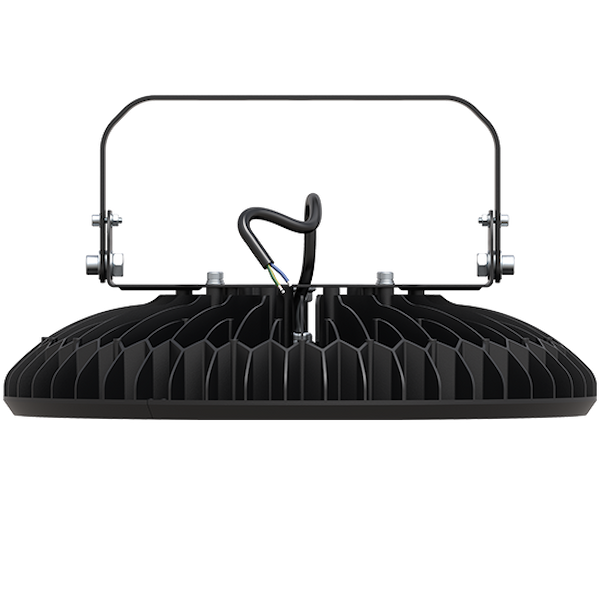

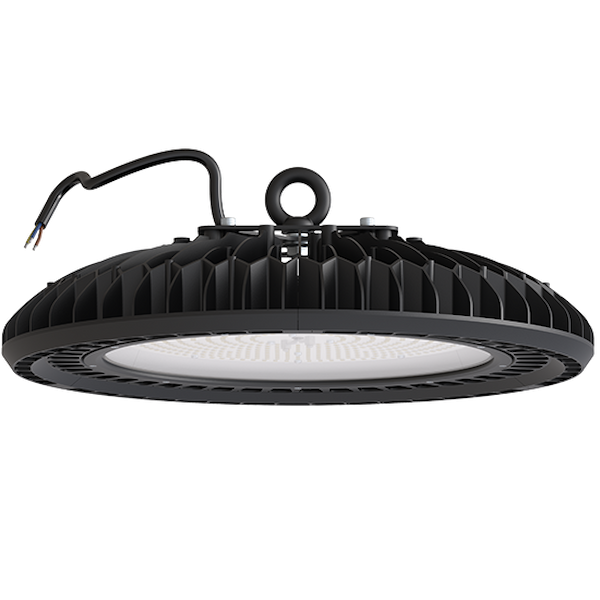

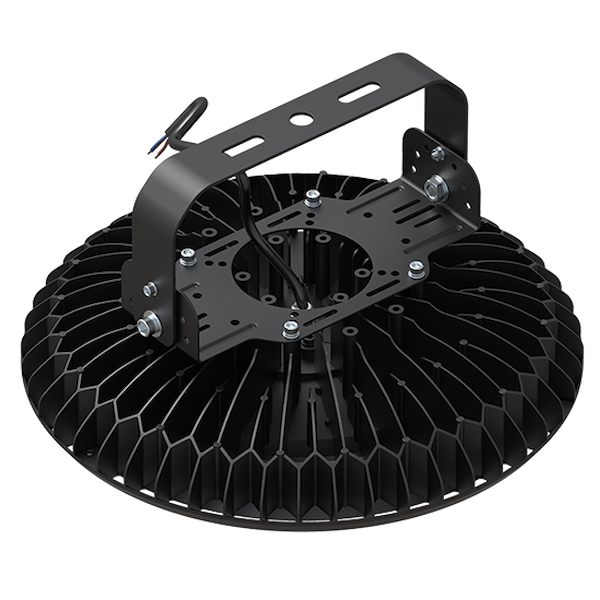

Cibay-T2 Series High Bay Light (high temperature resistance)

Cibay-T2 Series High Bay Light (high temperature resistance)

CIBAY-T2 adopts Seoul Y19 series of high temperature resistant LED, with inverted package without gold wire connection, owning good stability and high temperature resistance, with the all-solid DOB drive scheme.

  • Adopt all solid-state DOB drive scheme, stable performance, ultra-high temperature resistance;

  • The product adopts integrated design, with no external power supply, thin and light appearance, easy maintenance;

  • Adopt high light transmission tempered glass, 120 degree light distribution.

120 lm w wte 120 cri 80 0 pf led ip 65 warranty 3years 35 85
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCT

Lumen(lm)

±10%

Beam(angle)

±10%

LEDs typeCRI

Power(W)

±10%

Voltage frequency
CBT2-080-AH-60K-2016000K9200120°SMD 2835>8080WAW: 220-240VAC
50-60Hz, Max0.45A
CBT2-080-AH-50K-2015000K9200
CBT2-080-AH-40K-2014000K8800
CBT2-080-AH-30K-2013000K8400
CBT2-100-AH-60K-2016000K11500120°SMD 2835>80100WAW: 220-240VAC
50-60Hz, Max0.6A
CBT2-100-AH-50K-2015000K11500
CBT2-100-AH-40K-2014000K11000
CBT2-100-AH-30K-2013000K10500
CBT2-120-AH-60K-2016000K13800120°SMD 2835>80120WAW: 220-240VAC
50-60Hz, Max0.7A
CBT2-120-AH-50K-2015000K13800
CBT2-120-AH-40K-2014000K13200
CBT2-120-AH-30K-2013000K12600

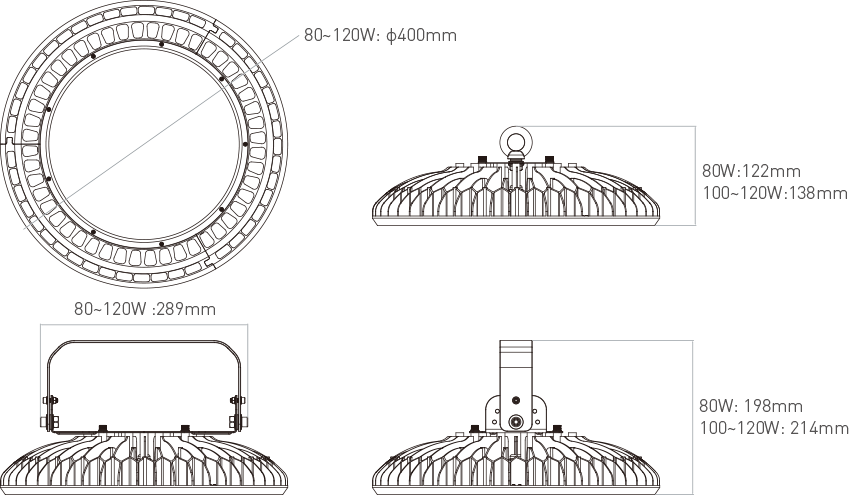

Size

Led Emergency Fitting
