CIBAY-B series products have reserved sensor socket, the socket is Signcomplex own patent design, can install the sensors in 3 seconds, plug and play, no need wiring, hugely save labor costs.
Multifunctional and expandable interface, plug&play module, no need wiring, save labor costs.
High efficiency LED, multiple brightness levels optional.
UV-resistant PC material optics, IK08 impact resistance grade.

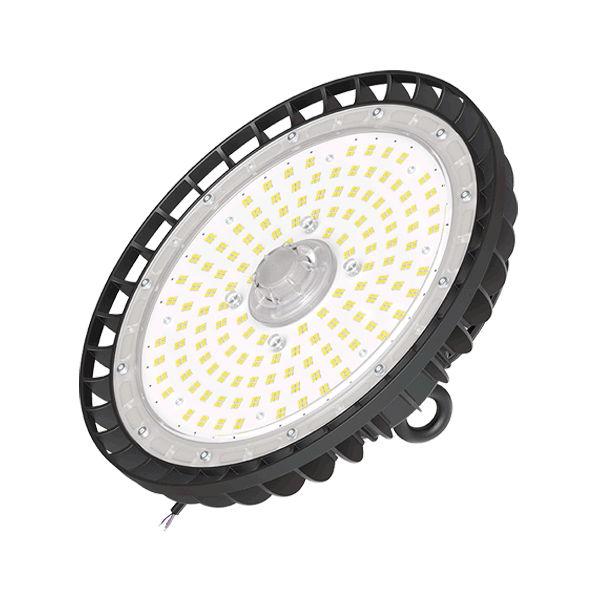

The LEDs are arranged symmetrically in a circle, so that heat source can be evenly distributed, have high efficient heat conduction.
| Model | CCT | Lumen(lm) ±10% | LEDs type | Beam ±10% | CRI | Power ±10% | Voltagere frequency | Light effect |
| CBB-100-AW-60K-D001/3 | 6000K | 13400 | SMD2835 | 120° 90° 60° | Ra＞80 | 100W | AW: 100-240VAC HV: 277-480VAC 50/60Hz | 140lm/W |
| CBB-100-AW-50K-D001/3 | 5000K | 13400 | ||||||
| CBB-100-AW-40K-D001/3 | 4000K | 13270 | ||||||
| CBB-100-AW-30K-D001/3 | 3000K | 12300 | ||||||
| CBB-150-AW-60K-D001/3 | 6000K | 20190 | SMD2835 | 120° 90° 60 | Ra＞80 | 150W | AW: 100-240VAC HV: 277-480VAC 50/60Hz | 140lm/W |
| CBB-150-AW-50K-D001/3 | 5000K | 20190 | ||||||
| CBB-150-AW-40K-D001/3 | 4000K | 18480 | ||||||
| CBB-150-AW-30K-D001/3 | 3000K | 24810 | ||||||
| CBB-200-AW-60K-D001/3 | 6000K | 27260 | SMD2835 | 120° 90° 60 | Ra＞80 | 200W | AW: 100-240VAC HV: 277-480VAC 50/60Hz | 140lm/W |
| CBB-200-AW-50K-D001/3 | 5000K | 27260 | ||||||
| CBB-200-AW-40K-D001/3 | 4000K | 26840 | ||||||
| CBB-200-AW-30K-D001/3 | 3000K | 24810 | ||||||
| CBB-240-AW-60K-D001/3 | 6000K | 32340 | SMD2835 | 120° 90° 60 | Ra＞80 | 240W | AW: 100-240VAC HV: 277-480VAC 50/60Hz | 140lm/W |
| CBB-240-AW-50K-D001/3 | 5000K | 32340 | ||||||
| CBB-240-AW-40K-D001/3 | 4000K | 32170 | ||||||
| CBB-240-AW-30K-D001/3 | 3000K | 29850 | ||||||
| CBB-100-AW-60K-D101 | 6000K | 16000 | SMD2835 | 120° 90° 60° | Ra＞80 | 100W | AW: 100-240VAC 50/60Hz | 160lm/W |
| CBB-100-AW-50K-D101 | 5000K | 16000 | ||||||
| CBB-100-AW-40K-D101 | 4000K | 15600 | ||||||
| CBB-100-AW-30K-D101 | 3000K | 14800 | ||||||
| CBB-150-AW-60K-D101 | 6000K | 24150 | SMD2835 | 120° 90° 60 | Ra＞80 | 150W | AW: 100-240VAC 50/60Hz | 160lm/W |
| CBB-150-AW-50K-D101 | 5000K | 24150 | ||||||
| CBB-150-AW-40K-D101 | 4000K | 23550 | ||||||
| CBB-150-AW-30K-D101 | 3000K | 22350 | ||||||
| CBB-200-AW-60K-D001 | 6000K | 32200 | SMD2835 | 120° 90° 60 | Ra＞80 | 200W | AW: 100-240VAC 50/60Hz | 160lm/W |
| CBB-200-AW-50K-D001 | 5000K | 32200 | ||||||
| CBB-200-AW-40K-D001 | 4000K | 31400 | ||||||
| CBB-200-AW-30K-D001 | 3000K | 29800 | ||||||
| CBB-240-AW-60K-D001 | 6000K | 38400 | SMD2835 | 120° 90° 60 | Ra＞80 | 240W | AW: 100-240VAC 50/60Hz | 160lm/W |
| CBB-240-AW-50K-D001 | 5000K | 38400 | ||||||
| CBB-240-AW-40K-D001 | 4000K | 37450 | ||||||
| CBB-240-AW-30K-D001 | 3000K | 35500 | ||||||
| CBB-100-AW-60K-DA01 | 6000K | 19100 | SMD2835 | 120° 90° 60° | Ra＞80 | 100W | AW: 100-240VAC 50/60Hz | 200lm/W |
| CBB-100-AW-50K-DA01 | 5000K | 19100 | ||||||
| CBB-100-AW-40K-DA01 | 4000K | 18600 | ||||||
| CBB-100-AW-30K-DA01 | 3000K | 17500 | ||||||
| CBB-120-AW-60K-DA01 | 6000K | 22900 | SMD2835 | 120° 90° 60 | Ra＞80 | 120W | AW: 100-240VAC 50/60Hz | 200lm/W |
| CBB-120-AW-50K-DA01 | 5000K | 22900 | ||||||
| CBB-120-AW-40K-DA01 | 4000K | 22300 | ||||||
| CBB-120-AW-30K-DA01 | 3000K | 21000 | ||||||
| CBB-150-AW-60K-DA01 | 6000K | 28650 | SMD2835 | 120° 90° 60 | Ra＞80 | 150W | AW: 100-240VAC 50/60Hz | 200lm/W |
| CBB-150-AW-50K-DA01 | 5000K | 28650 | ||||||
| CBB-150-AW-40K-DA01 | 4000K | 27900 | ||||||
| CBB-150-AW-30K-DA01 | 3000K | 26400 | ||||||
| CBB-200-AW-60K-DA01 | 6000K | 38200 | SMD2835 | 120° 90° 60 | Ra＞80 | 200W | AW: 100-240VAC 50/60Hz | 200lm/W |
| CBB-200-AW-50K-DA01 | 5000K | 38200 | ||||||
| CBB-200-AW-40K-DA01 | 4000K | 37200 | ||||||
| CBB-200-AW-30K-DA01 | 3000K | 35200 | ||||||
| CBB-240-AW-60K-DA01 | 6000K | 45800 | SMD2835 | 120° 90° 60 | Ra＞80 | 200W | AW: 100-240VAC 50/60Hz | 200lm/W |
| CBB-240-AW-50K-DA01 | 5000K | 45800 | ||||||
| CBB-240-AW-40K-DA01 | 4000K | 44600 | ||||||
| CBB-240-AW-30K-DA01 | 3000K | 42200 |
